190-00692-00 Rev. B Garmin G1000 Pilot’s Guide for Piper PA32 6-61
HAZARD AVOIDANCE
TRAFFIC MAP PAGE
The Traffic Map Page is in the Map Group and displays the following information:
• Current aircraft location
• Surrounding TIS traffic
• Range marking rings - The range at which traffic is being displayed on the Traffic Map Page
• Current traffic mode - Indicates if TIS is in Standby or Operate mode
• Traffic alert message - Displays in yellow in the center of the Traffic Map Page
• Traffic status banner - Displays in the lower left corner of the Traffic Map Page.

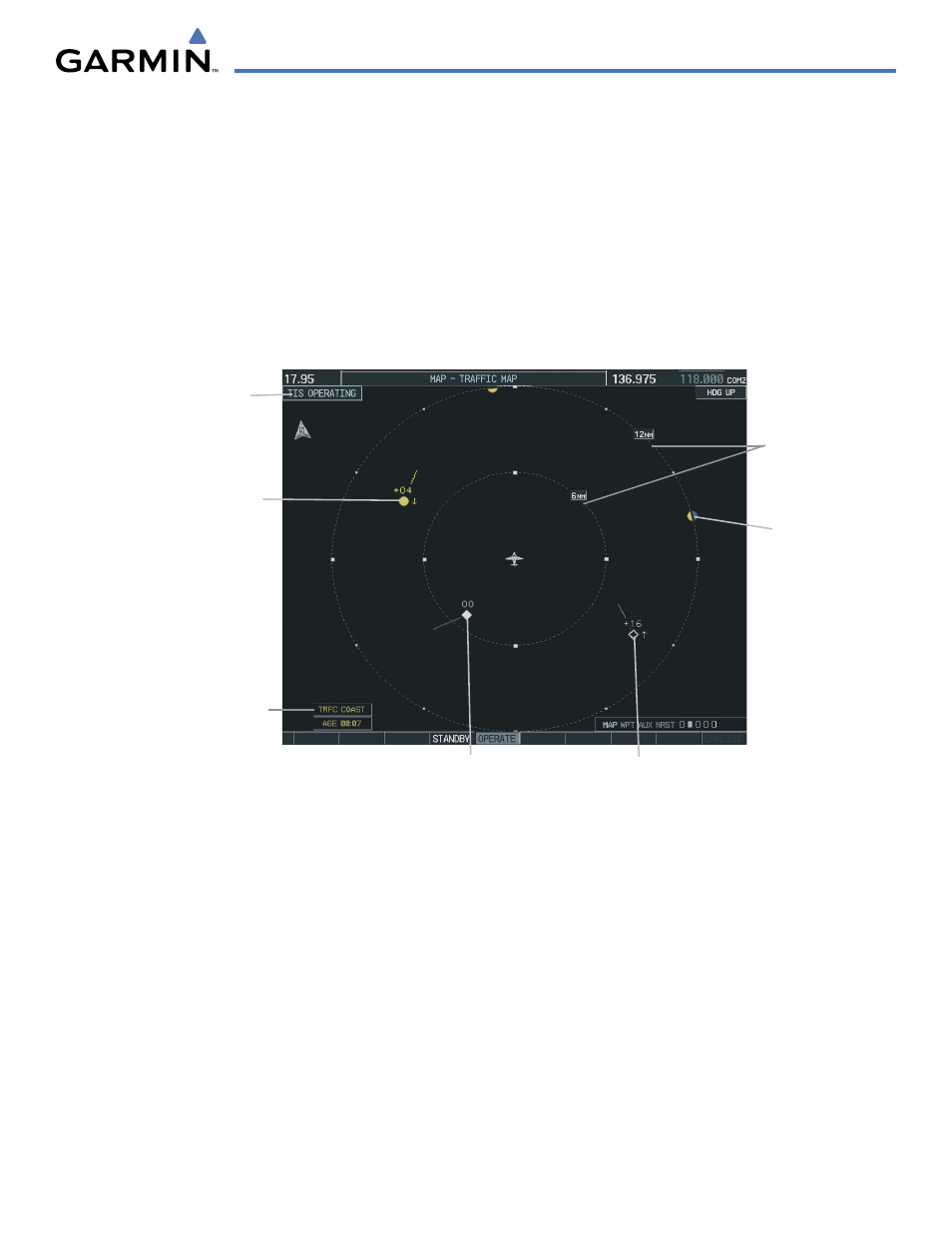

Figure 6-61 Traffic Map Page
Range
Marking
Rings
Surrounding
Traffic
Surrounding Traffic
Traffic Status Banner
Current Traffic
Mode
Surrounding Traffic
Surrounding Traffic
CURRENT TRAFFIC MODE
S
TANDBY AND
O
PERATE
Once the aircraft is airborne, TIS switches from Standby to Operating mode. The G1000 displays ‘TIS
OPERATING’ in the upper left corner and begins to display traffic on the Traffic Map Page. TIS Traffic
Advisories (TA) are issued to alert the crew to intruding aircraft.
Once the aircraft is on the ground, TIS switches from operating mode to standby mode. The Traffic Map
Page displays ‘STANDBY’. The pilot can use the page menu or softkeys to switch between Standby (STBY)
and Operating (ON) modes and manually override automatic operation.
