Garmin G1000 Piper PA32 - Manual (Page 114)

190-00692-00 Rev. B Garmin G1000 Pilot’s Guide for Piper PA32 4-20
AUDIO PANEL AND CNS
In the example shown, the VOR list is selected with the VOR Softkey or from the PAGE MENU. The FMS
Knob or ENT Key is used to scroll through the list. The cursor is placed on the frequency with the FREQ
Softkey and loaded into the NAV Tuning Box with the ENT Key.
Press the FREQ
Softkey to Place
the Cursor on the
VOR Frequency

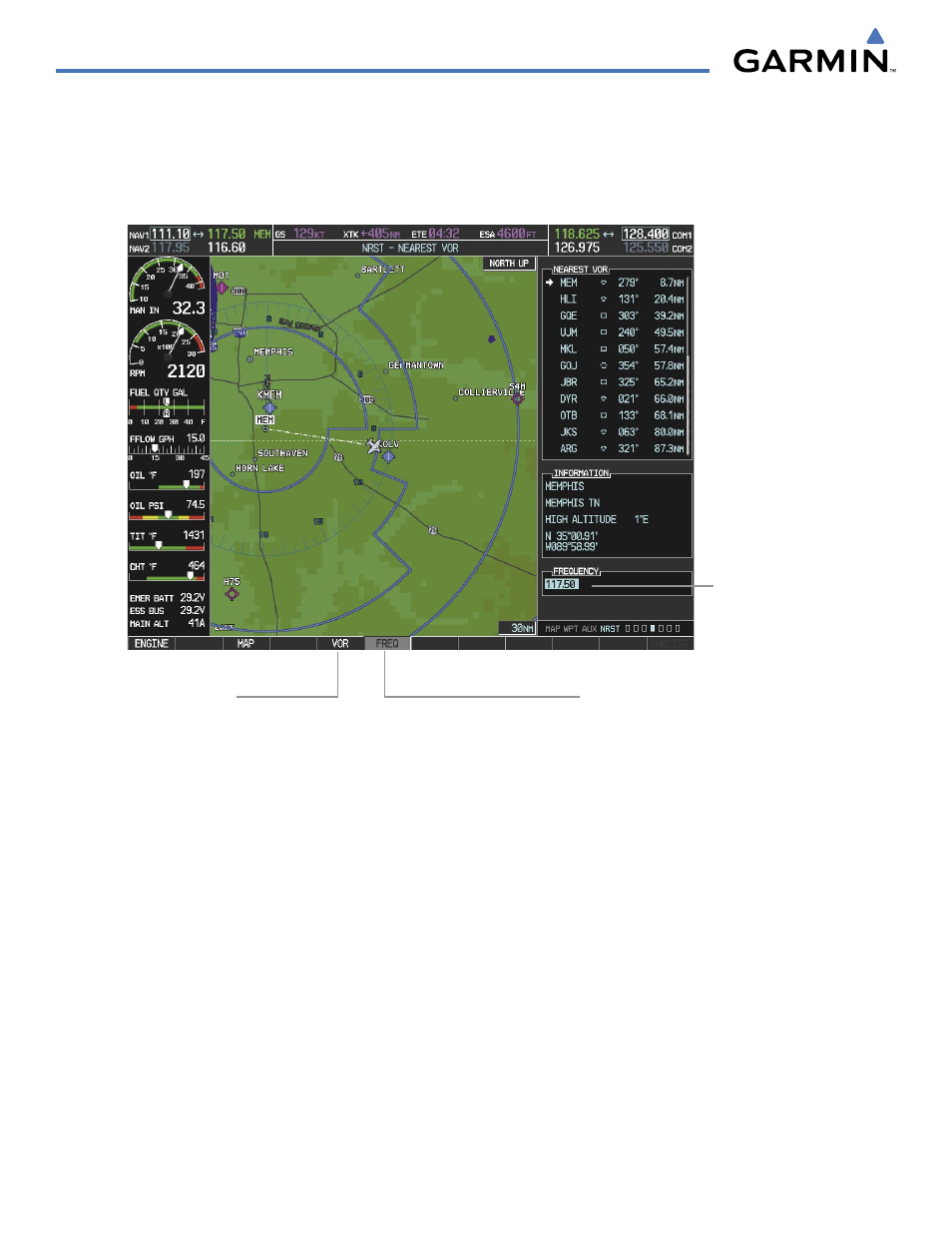

Figure 4-25 Loading the NAV Frequency from the NRST – Nearest VOR Page
Press the ENT
Key to Load
the Frequency
into the NAV
Standby Field.
Press the VOR
Softkey to Place
the Cursor on the
VOR Identifier
