Using the RAID GUI
2-7

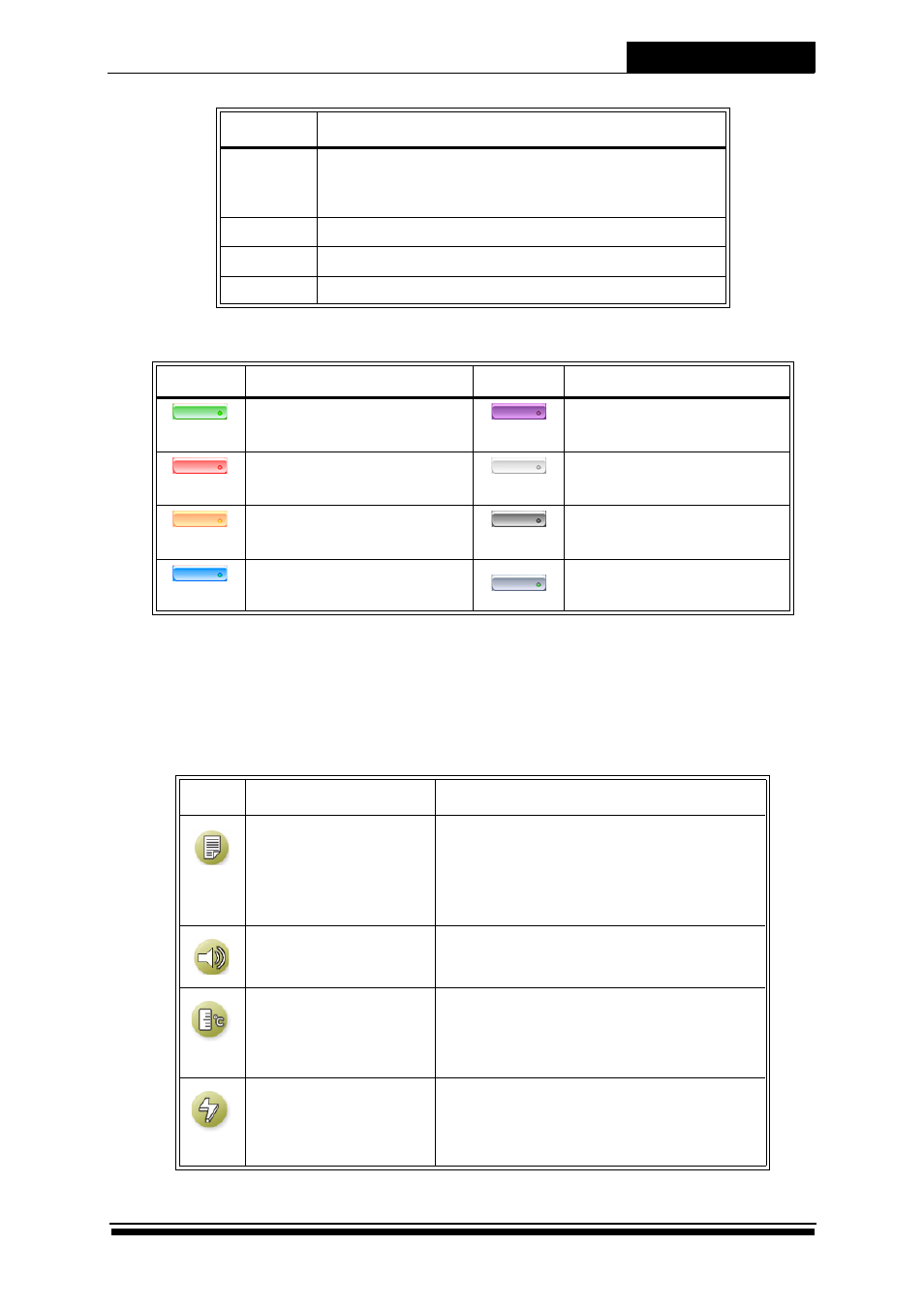

2.2.2 Information icons
When components are working normally, their icons are shown in green.
When components are uninstall, not norms or, failed, the icons are shown
in red. Click on each icon for detailed information.
D0-D7
D0-Dv
Disk group
(The redundant-controller system supports up
to 32 DGs, which are encoding from D0 to Dv)
L0-L7 Local spare
G Global spare
T Clone
Color Hard Disk Status Color Hard Disk Status
Green
Online
Adding (flashing green)
Purple
Unknown
Red
Faulty
Silver
Permanently removed
Orange
Conflict
Gray
Removed
Blue
Foreign Empty
Table 2-3 Hard disks tray color
Icon Name Detailed Information
Event log view
• Seq. No.
• Severity
• Type
• Time
• Description
Beeper See 6.2 Beeper on page 6-1 for the
possible beeper reasons.
Temperature
• Sensor
• Current
• Non-critical*
• Critical*
Voltage
• Sensor
• Current
• High Limit*
• Low Limit*
Table 2-4 Information icons
Code Hard Disk Status
Table 2-2 Hard disk code
