systems within the IP address range will respond to the Agent. Up to 256
RAID systems can be displayed per scan. If you have more RAID
systems on single subnetwork, you need to carry out multiple scans
using different IP ranges.
Figure 5-36 shows the RAID system scan screen. The System Panel
contains the following columns to display the information of each RAID
system discovered.
Table F-1 shows the meaning of the text displayed in the Status column
and the corresponding RAID system icons in the Structure tree section.
• Monitor
• IP Address
• System Name
• Model Name
• F/W Version
• B/C (Boot Code) Version
• Serial Number
• Status
Table 5-2 System status information
Icon Status Description
None Unregistered RAID system with unknown status.
Normal
Registered online RAID system, functioning normally.
Query thread queries the registered systems every
ten seconds. Their statuses will be changed
accordingly.
Offline
Registered offline RAID system. The RGC cannot reach
the RAID system because the RAID system or its network
link is down. The system status will be returned back
when it is restarted.
Trouble
Registered defective RAID system. The RAID system
requires your attention. The system will be changed to
“Normal” after the beeper is disabled.

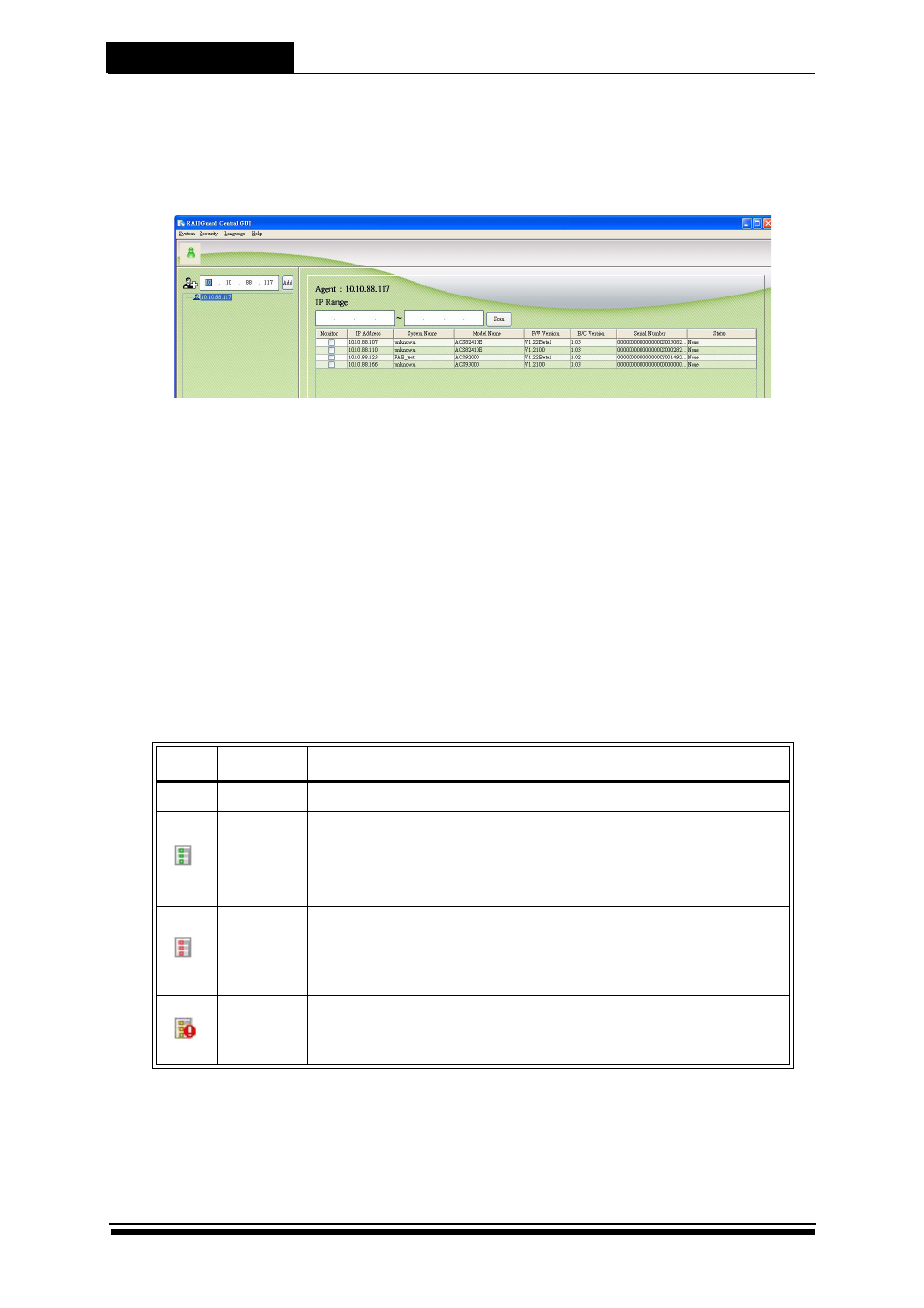

Figure 5-36 Scanning the online RAID systems in the selected agent’s domain
