Advanced Functions
5-60
2. An Agent icon ( ) with IP address will be displayed in the Structure
tree section if the Agent has been successfully added.
Scan RAID systems
1. Click the Agent icon ( ) on the Structure tree section to choose the
Agent.
2. Click the Scan button to discover the RAID systems on the sub-network
of the Agent. If you want to scan a specific IP address range, enter the
IP addresses in the IP Range field.
3. For scanning RAID systems, the RGC Agent sends out broadcast
packets on its subnet. If IP address range is specified, only the RAID
Note
1. If the RGC Agent is installed onto the local host server, you can
also add it as one of the agents.
2. Each agent can only be controlled by a RGC Server.
3. The color of an agent icon ( ) will fade away when it goes offline.

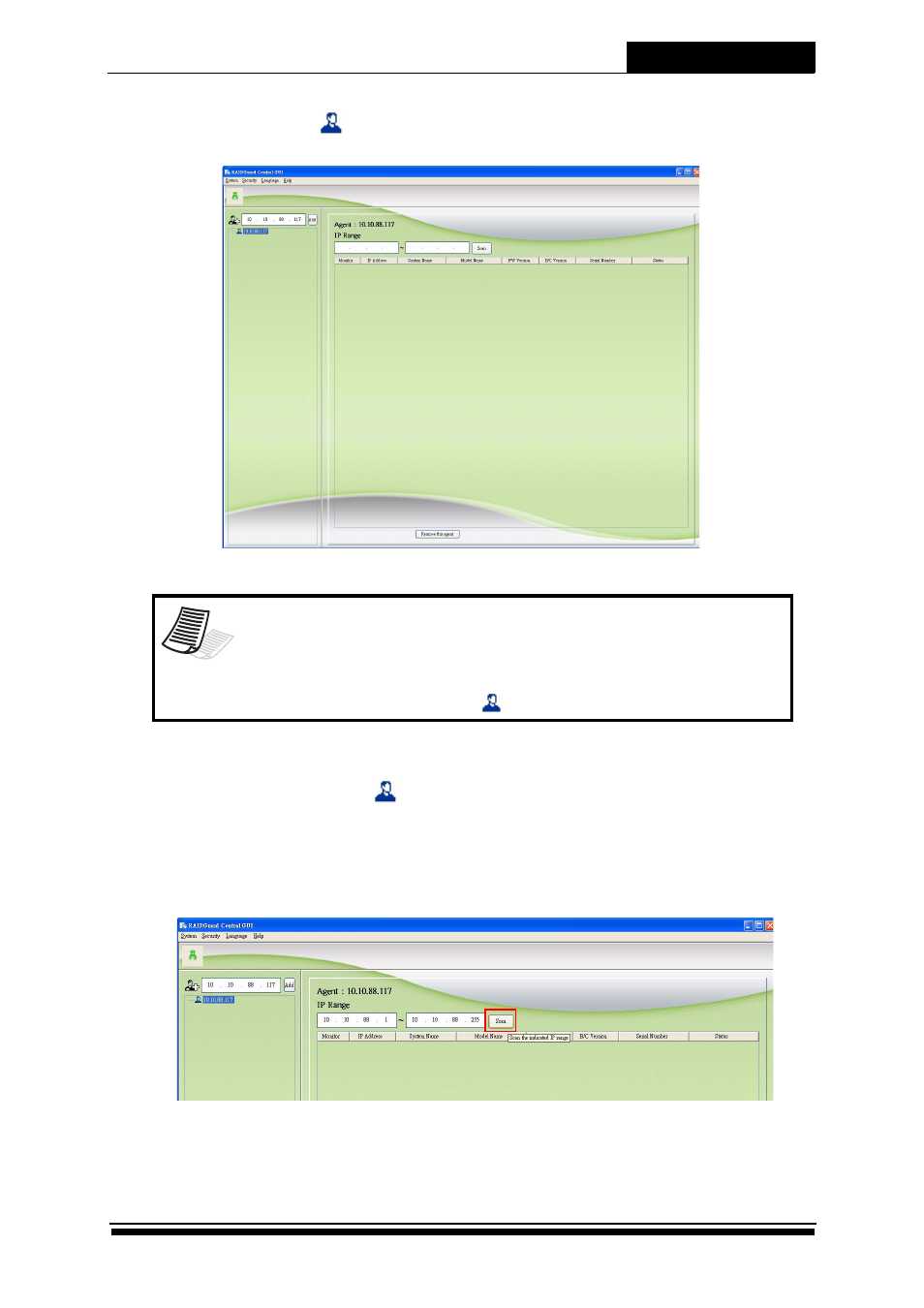

Figure 5-34 Adding the IP address of an agent
Figure 5-35 Scanning the online RAID systems in the specified IP range
