ports, fcpa2 and fcpb2. For all LUNs, the green path is the active path to
the controller A, and the red path is the standby path to the controller B.
The steps to set up the active-passive and active-active connections are
almost the same. You simply need to specify all the LUNs to the same
preferred controller in the RAID GUI.
The Configuration Tasks table shown below details each configuration
task according to the example given in Figure 5-10.
Configuration Tasks
Tasks Instructions
Create Virtual volumes and
specify the preferred
controller RAID Management > Disk Groups >
Create DG0 and DG1
RAID Management > Logical Disks >
Create DG0LD0 > Specify the
preferred controller as ctla
RAID Management > Logical Disks >
Create DG1LD0 > Specify the
preferred controller as ctla
Select Storage Provisioning
method RAID Management > Storage
Provisioning > Symmetric

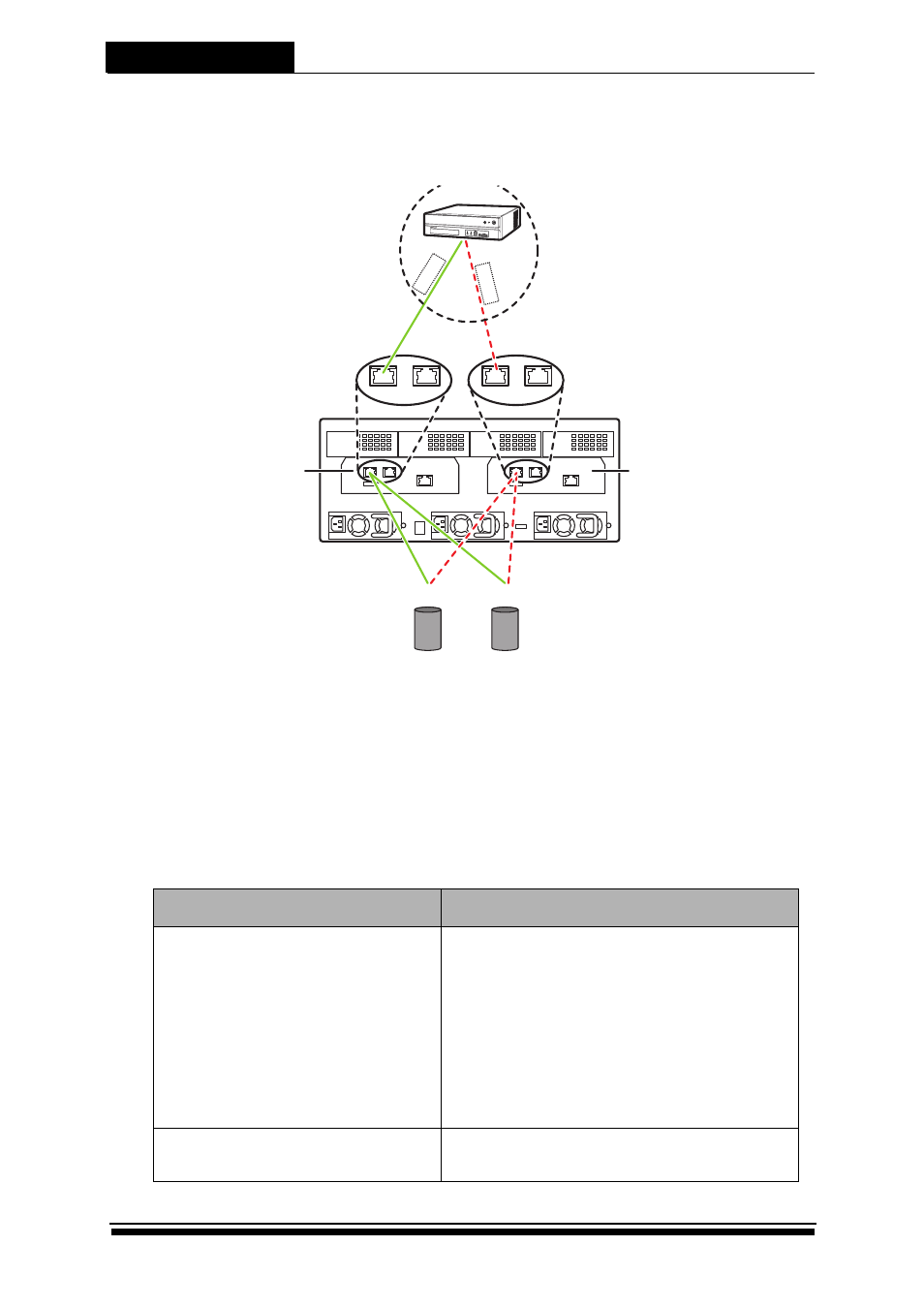

Figure 5-10 Active-Passive Redundant Single MPIO host
FCP1 FCP2 FCPa2 FCPa1 FCP1 FCP2 FCPb2 FCPb1
DG0LD0 DG1LD0
WWPN
WWPN
HBA1 HBA0
Host
Host Group 0
Controller B Controller A
