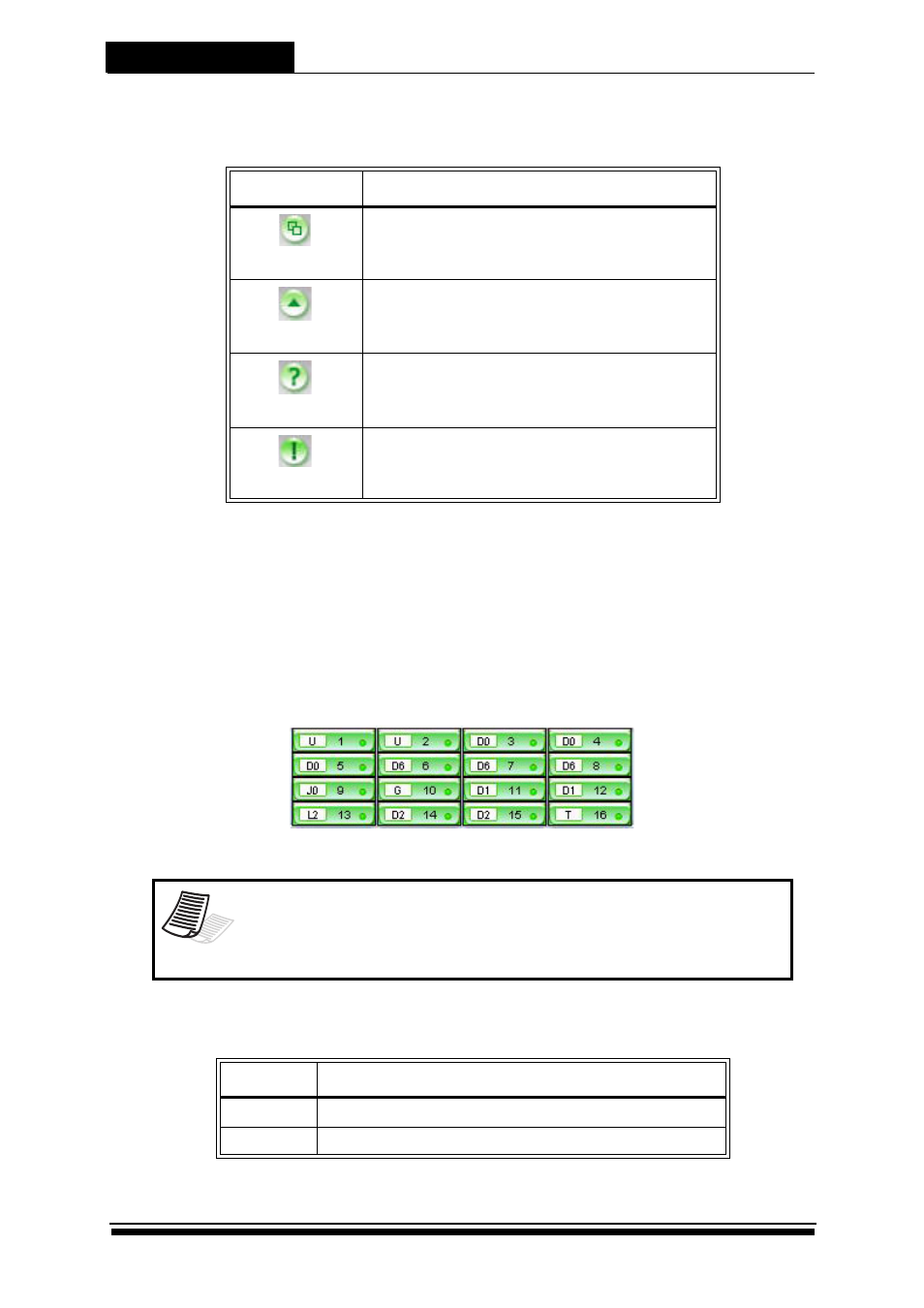

Using the RAID GUI
2-6
There are four buttons at the top right of the page. See the following
table for each button’s function.
System name, controller name, firmware version, and boot code version
information are also displayed at the bottom left of the page.
2.2.1 HDD state
Through the front panel of the RAID console displayed in the GUI, you can
easily identify the status of each hard disk by its color and status code.
Click on each hard disk to display detailed information.
The status code and color of hard disks are explained in the following
tables.
Button Description
Switch Mode
Switches between Monitor Mode and
Config Mode.
Logout
Logs out the user.
Help
Opens the Help file.
About
Displays the GUI version, firmware
version, and boot code version.
Table 2-1 Buttons in monitor and config mode
Note
The RAID system can support up to 24 HDD trays. The number of
HDD trays displayed in the GUI monitor mode may differ depending
on the RAID system model.
Code Hard Disk Status
U Unused disk
J0-J15 JBOD
Table 2-2 Hard disk code
Figure 2-8 HDD Tray (GUI)
