4. Multi-Screen Projection
9-segmented portions for Black Level adjustment
The center projector

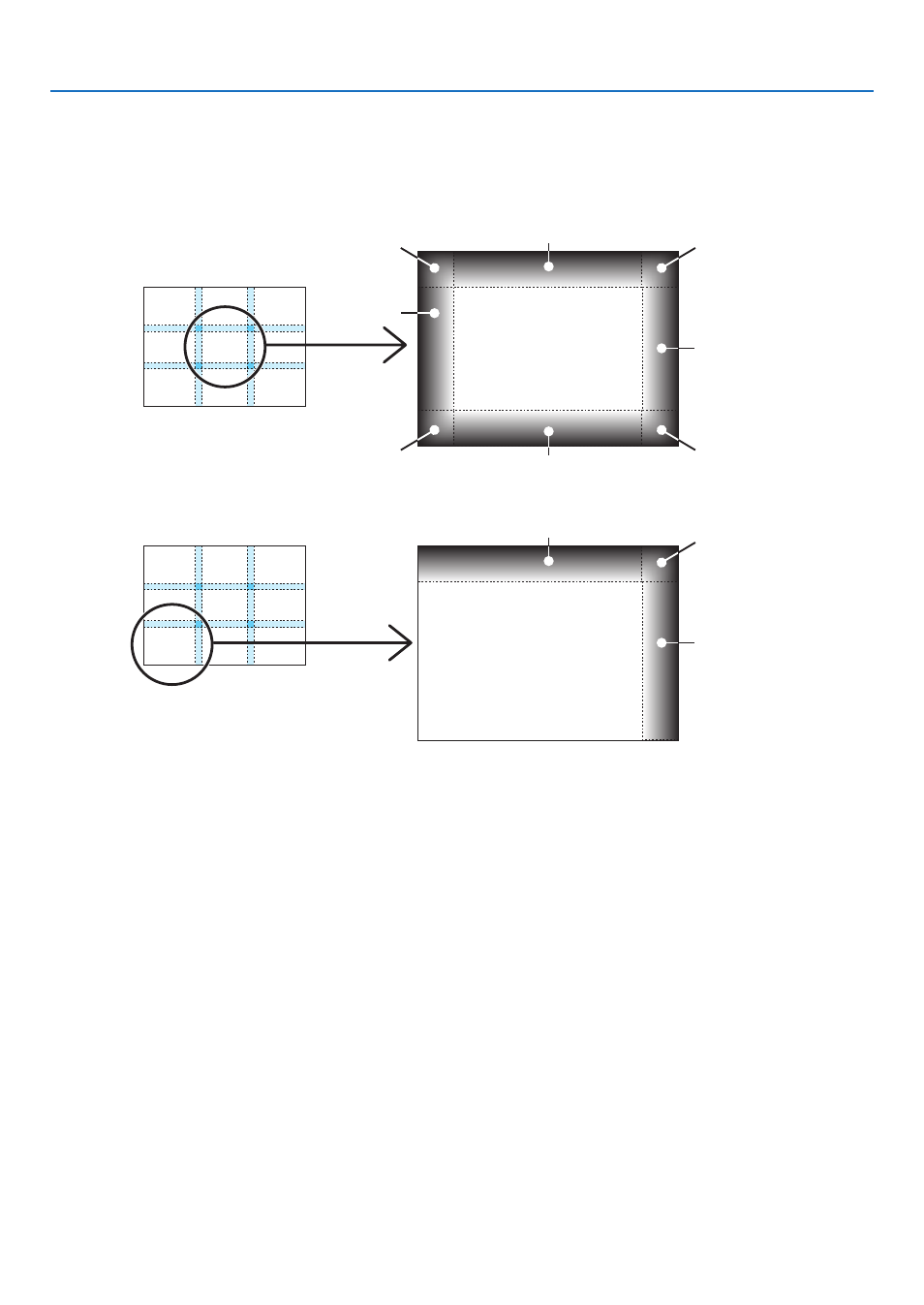

This function adjusts the brightness level of 9-segmented portions for the center projector and 4-segmented portions for the
left bottom projector as shown below.
TOP-LEFT
BOTTOM-LEFT
CENTER-LEFT
TOP-RIGHT
CENTER-RIGHT
BOTTOM-RIGHT
TOP-CENTER
CENTER
CENTER
BOTTOM-CENTER
TOP-RIGHT
CENTER-RIGHT
TOP-CENTER
TIP:
• The number of black level division screens (maximum of nine divisions) changes depending on the number of edge blending positions selected (top, bottom, right,
left). In addition, when the top / bottom and left / right ends are selected, the corner division screen appears.
• The edge blending width is the width set in the range and the corner is formed by the intersecting area of the top / bottom ends or left / right ends.
• The [BLACK LEVEL] can be adjusted to make it brighter only.
