25
2. Projecting an Image (Basic Operation)

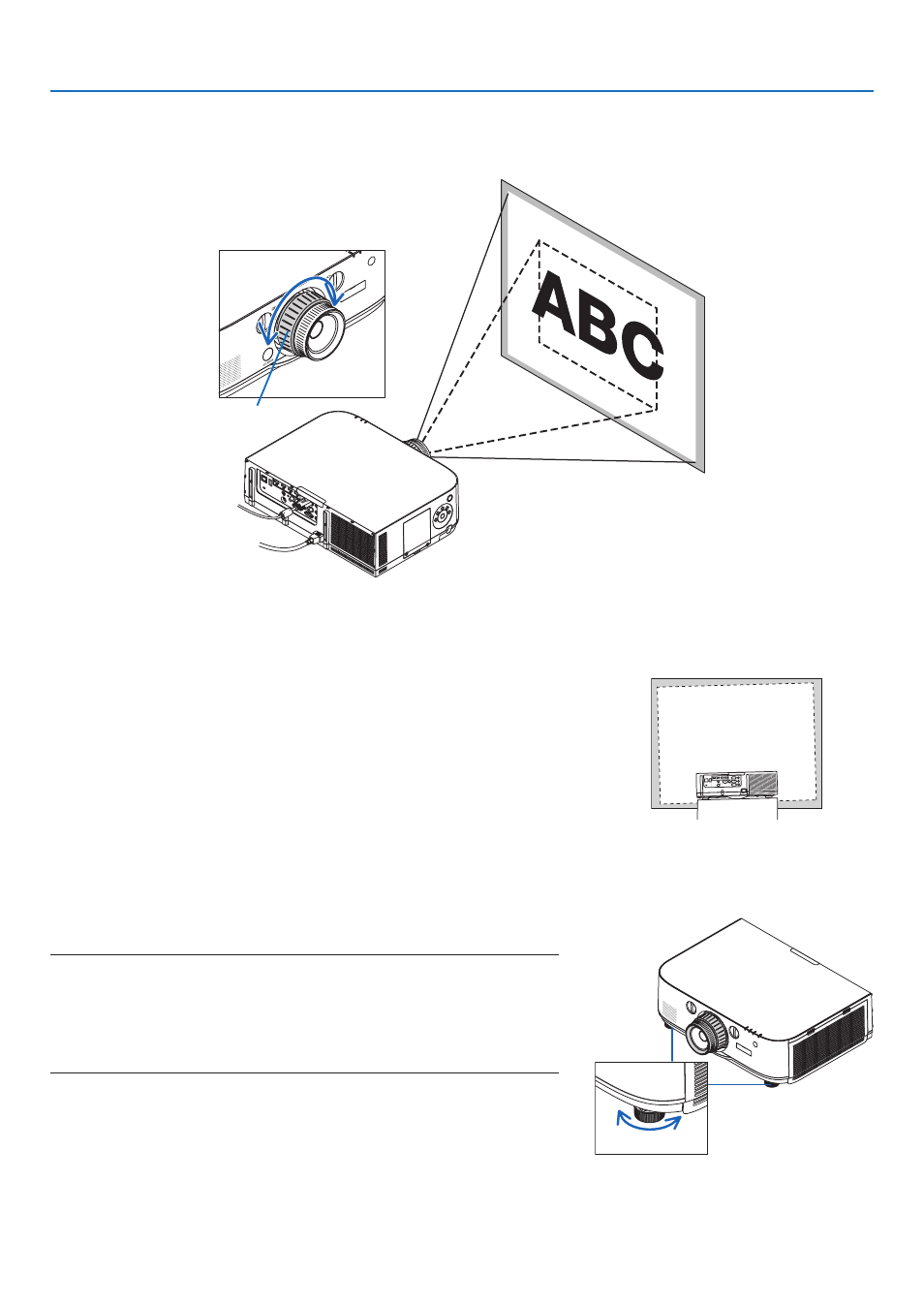

Adjusting the Tilt Feet
1. Turn the left and right tilt feet to adjust.
The tilt feet lengthen and shorten when turned.
The height of the projected image is adjusted by turning the left and right
tilt feet.
If the projected image is tilted, turn one of the tilt feet to adjust the image
so that it is level.
• If the projected image is distorted, see “3-6 Correcting Horizontal and Verti-
cal Keystone Distortion [CORNERSTONE]” ( → page 33 ) and “[GEOMETRIC
CORRECTION]” ( → page 100 ).
• The tilt feet can be lengthened by a maximum of 20 mm.
• The tilt feet can be used to tilt the projector by a maximum of 4°.
NOTE:
• Do not lengthen the tilt feet any more than 20 mm/0.8". Doing so will make the tilt feet’s mount section
unstable and could cause the tilt feet to come off the projector.
• Do not use the tilt feet for any purpose other than adjusting the projector’s projection angle.
Handling the tilt feet improperly, such as carrying the projector by grasping the tilt feet or hooking it
onto a wall using the tilt feet, could damage the projector.
Zoom
Turn the zoom lever or zoom ring clockwise and counterclockwise.
• The separately sold Replacement Lens Type1 lens does not have a zoom ring.
Zoom ring
Up
Tilt foot
Down
