164
6. Installation and Connections

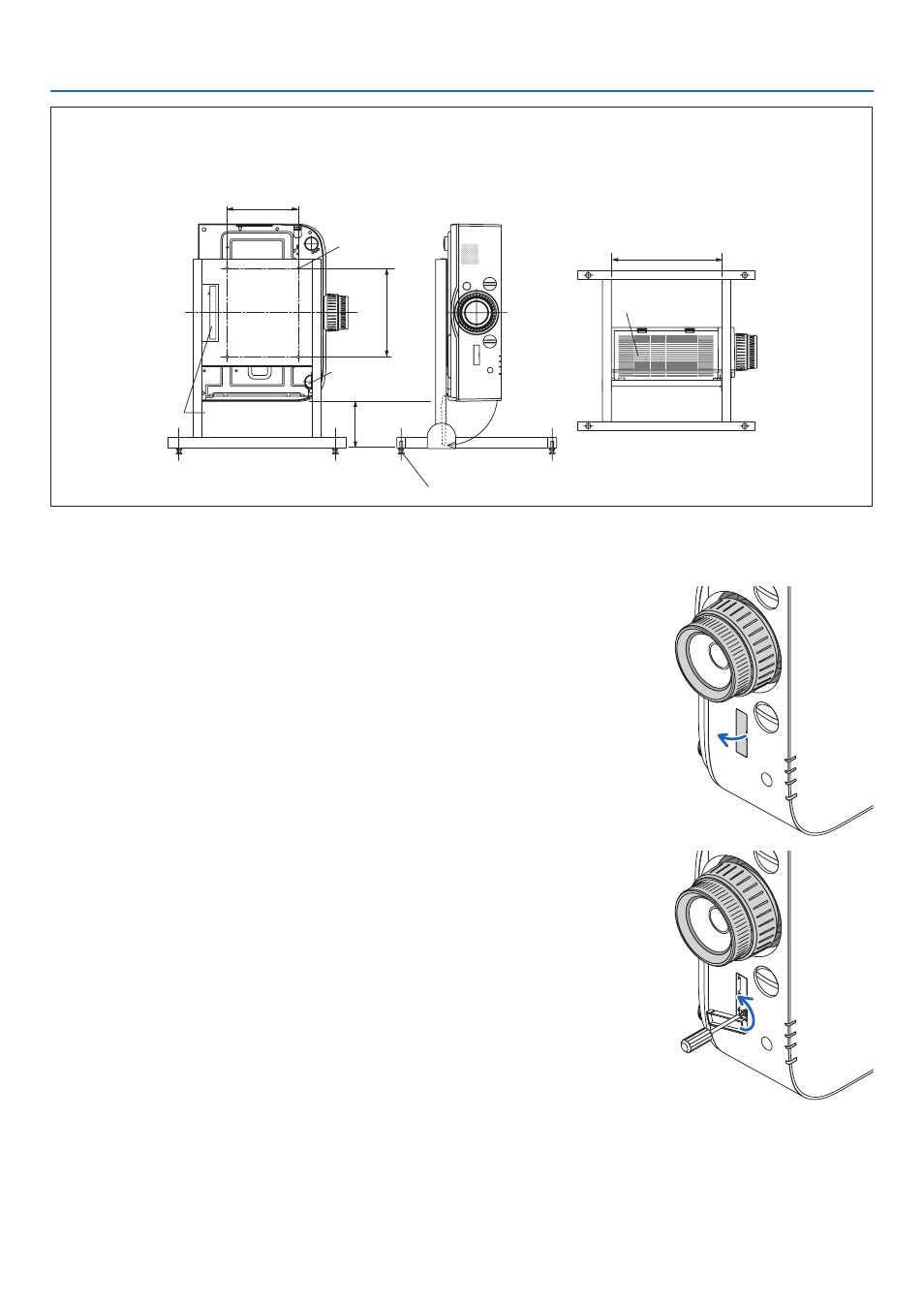

Reference drawings
* The drawing showing the dimensional requirements is not an actual stand design drawing.
[Side View] [Front View]
Screw holes for
4 - M4 use
Tilt foot
(remove)
130 or
greater
200
Filter cover (when opened)
Horizontal adjuster
[Bottom View]
Filter cover
310 or greater
Rear foot
Lens shift securing method
1. Pull the securing lever cover towards you to remove it.
• The cover cannot be detached from the projector.
2. Turn the screws to the left to loosen them.
• Screws cannot be removed.
