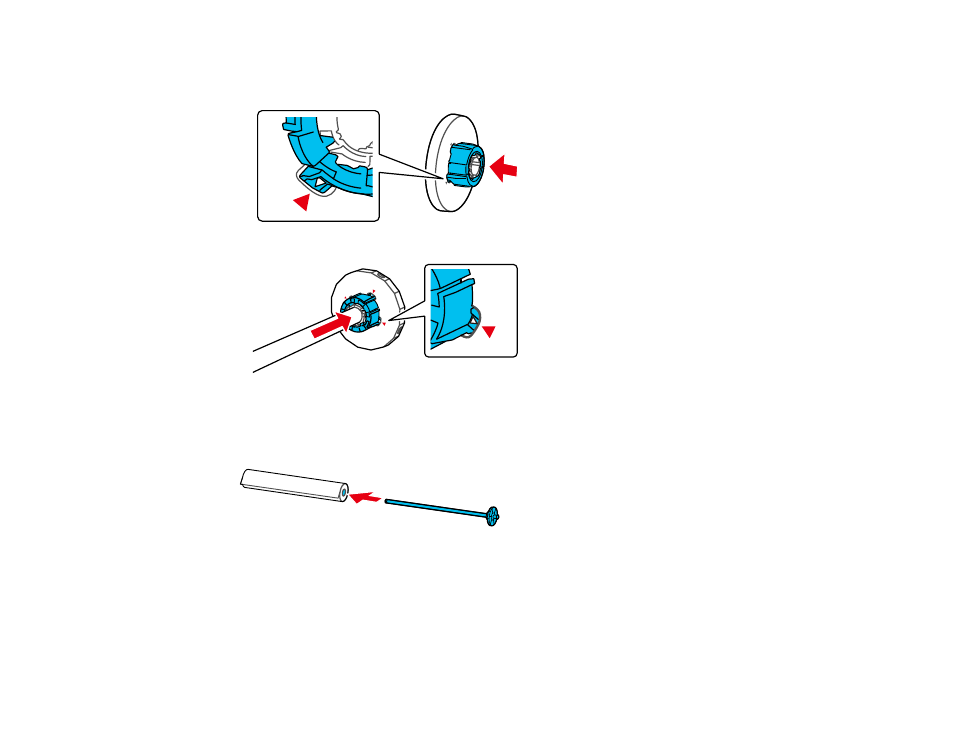

• 3-inch core : Install the core adapters on both paper stops. Align the triangle marks on the paper
stop with the triangle marks on the adapter and push the adapter in until the tabs are secured.
10. Insert the spindle into the roll paper core as shown, with the leading edge of the roll paper facing
towards you. Push the fixed paper stop against the roll paper until there is no gap between the paper
stop and the roll paper.
