Printing CAD Drawings from the Printer Driver

You can print CAD drawings using the CAD/Line Drawing mode in your printer driver. This printing
method is best for high quality views and drawings.

Note:

If lines in your drawing are not printed properly, print the drawing using HP-GL/2 or HP RTL mode

using the product control panel.

1. Open the file you want to print in your CAD software.

2. Click

Plot

and select your product as the printer.

3. Click

Properties

4. On the

Device and Document Settings

tab, click

Custom Properties

You see the printer driver window.

5. Select the

Document Size

and

Output Size

settings as necessary.

6. Select the

Source

setting.

Note:

If you select a roll paper option, select the width of the roll as the

Roll Paper Width

setting.

7. Select the

Media Type

setting.

8. Do one of the following:

•

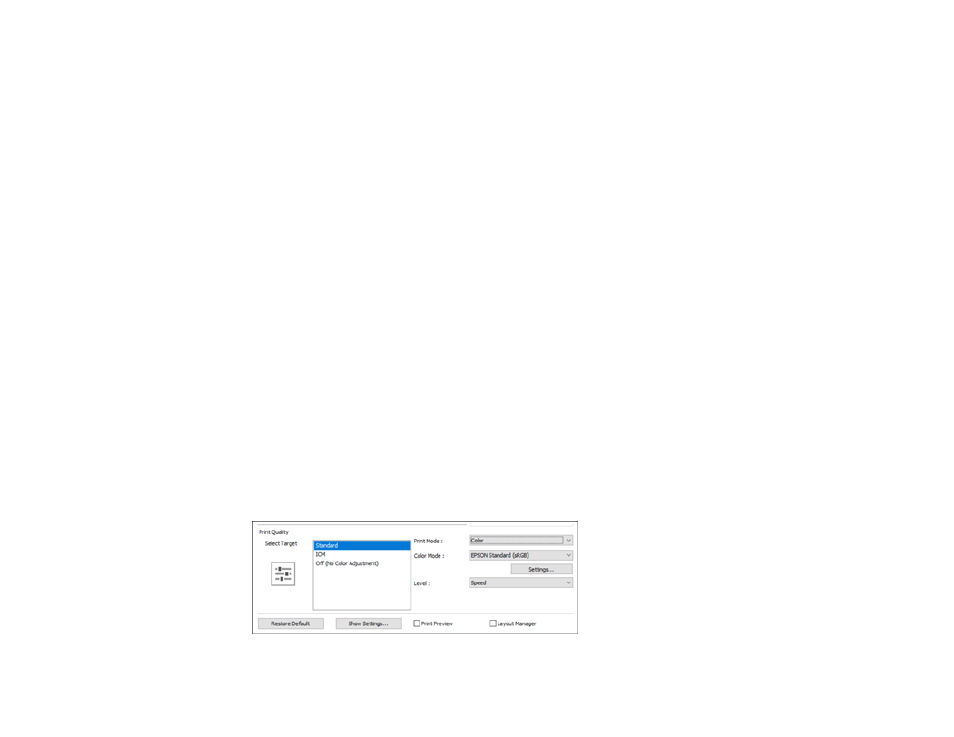

SureColor P6570D/P6570DE/P6570E/P8570D/P8570DL

: For Print Quality, select

Select Target

Standard

. Select

Color

Black

, or

Black (Bi-Level)

as the Print Mode setting.
