Product parts - front/top – Epson SureColor P8570DL 44" Wide-Format Dual Roll Printer with High-Capacity 1.6L Ink Pack System User Manual
Page 22
22
Parent topic:

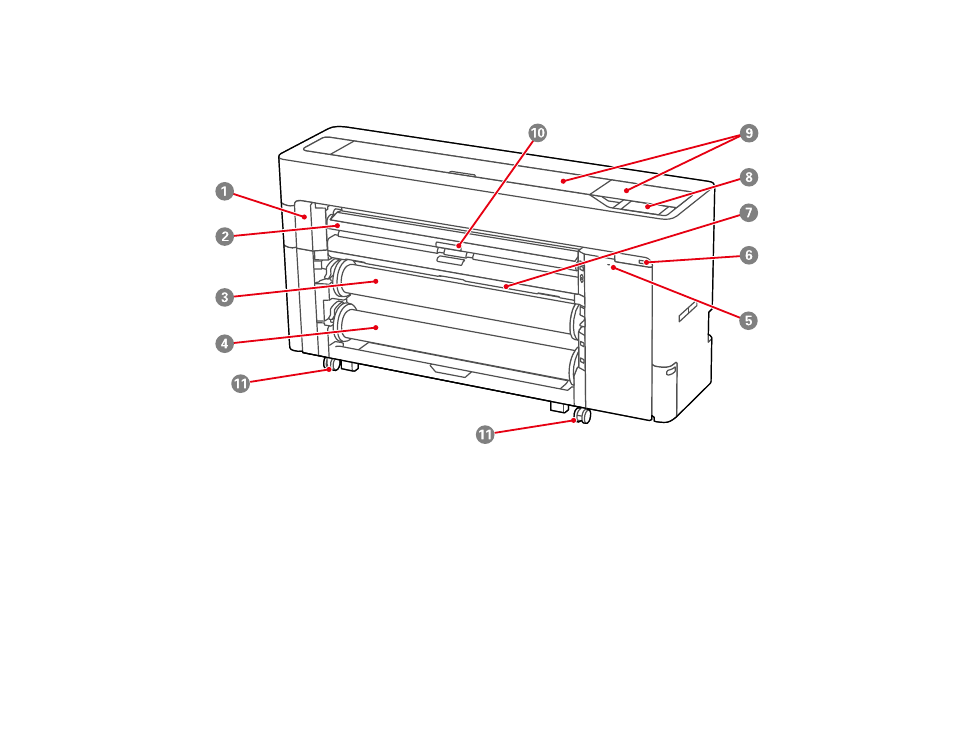

Product Parts - Front/Top
1
Maintenance cover
Open to replace auto cutter blade
2
Paper support
Adjust position according to media type; set to top position when replacing borderless
maintenance box
3
Roll 1 (known as Roll paper on SureColor P6570E/T3770E); can be used optionally as a take-up
reel on dual roll models
4
Roll 2 (not available on SureColor P6570E/T3770E)
5
Security lock slot
