23
6 USB memory port
Print directly from a connected USB memory device
7 Paper basket
8 Control panel
9 Printer cover
Open to clean inside printer or clear paper jams
10 Paper support lock lever
11 Front caster

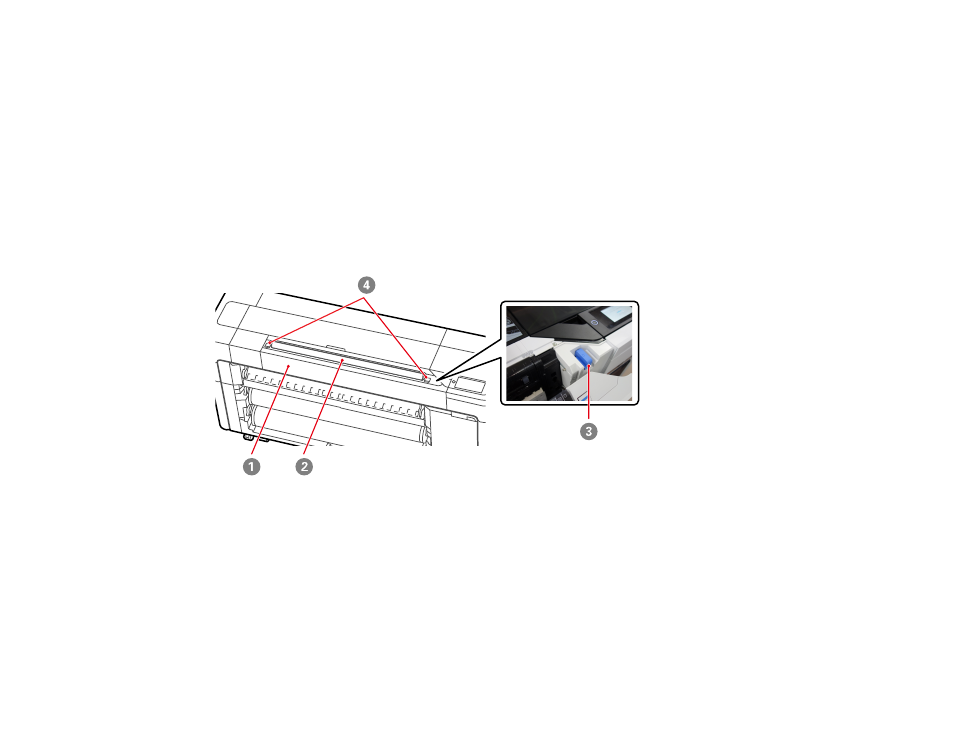

Scanner (SureColor T5770DM/T7770DM only)
1 Scanner cover
Open cover to clear paper jams
2 Scanner slot
Insert originals to be scanned
3 Scanner edge guide
Allows you to feed originals straight into the printer; store the edge guide when opening the
scanner cover
