5 encoder connection, 1 encoder signal (cn2) names and functions, 2 encoder connection examples – Yaskawa Σ-V Series AC Servo Drives Rotational Motor Analog Voltage Reference User Manual

Page 60: 1) using as an incremental encoder, Analog

Text mode
Original mode

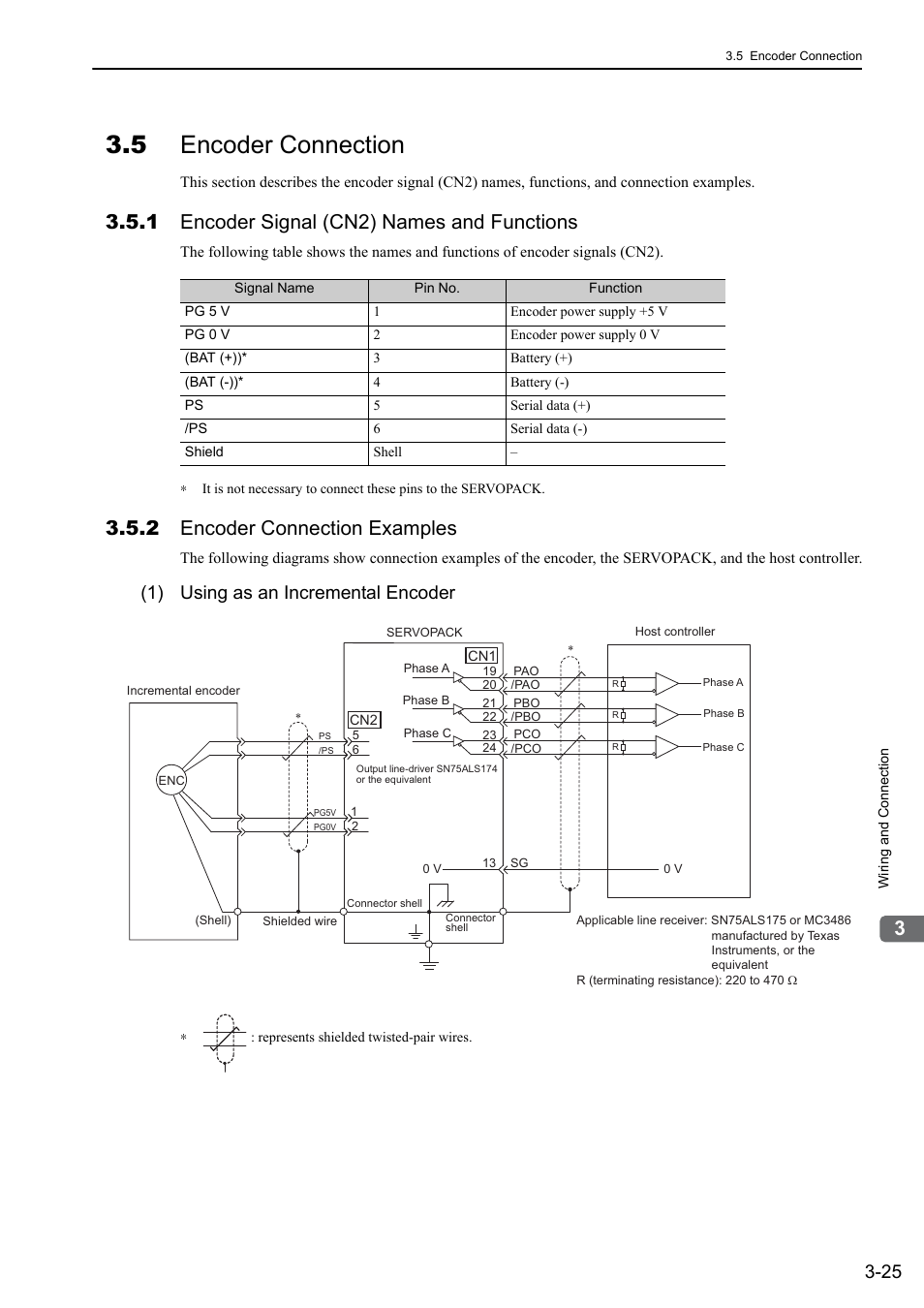

5 encoder connection, 1 encoder signal (cn2) names and functions, 2 encoder connection examples | 1) using as an incremental encoder, Analog | Yaskawa Σ-V Series AC Servo Drives Rotational Motor Analog Voltage Reference User Manual | Page 60 / 320
