Bar Code Element Widths
PLS200 Installation and Operation
135
Bar Code Element Widths
The table below and Figure C-3 list the widths of the bar code elements.

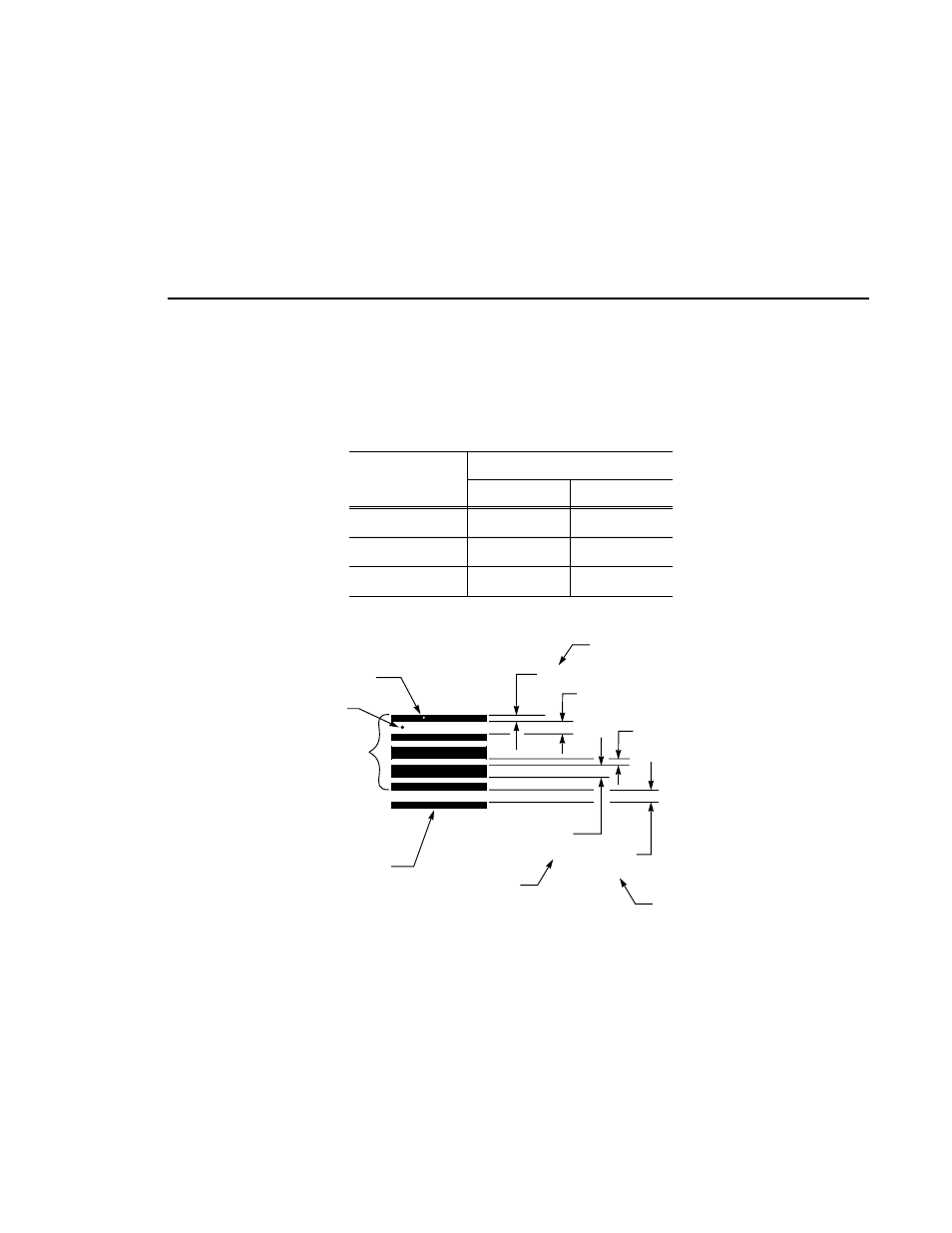

Figure C-3
Element dimensions; spots and voids
Element
Width
inches
millimeters
Narrow Element
0.015
0.38
Wide Element
0.030
0.76
Intercharacter Gap
0.030
0.76
.030 (0.76)
Start/Stop
Character
Spot
Void
Start of Label
Character
Wide
Intercharacter
Gap
Narrow
Element
Element
.030
(0.76)
.015 (0.38)
.030
(0.76)
.015 (0.38)
