Chapter 3 Keypad and Start Up|
Revision May 2008, ME14, SW V3.04
3-3

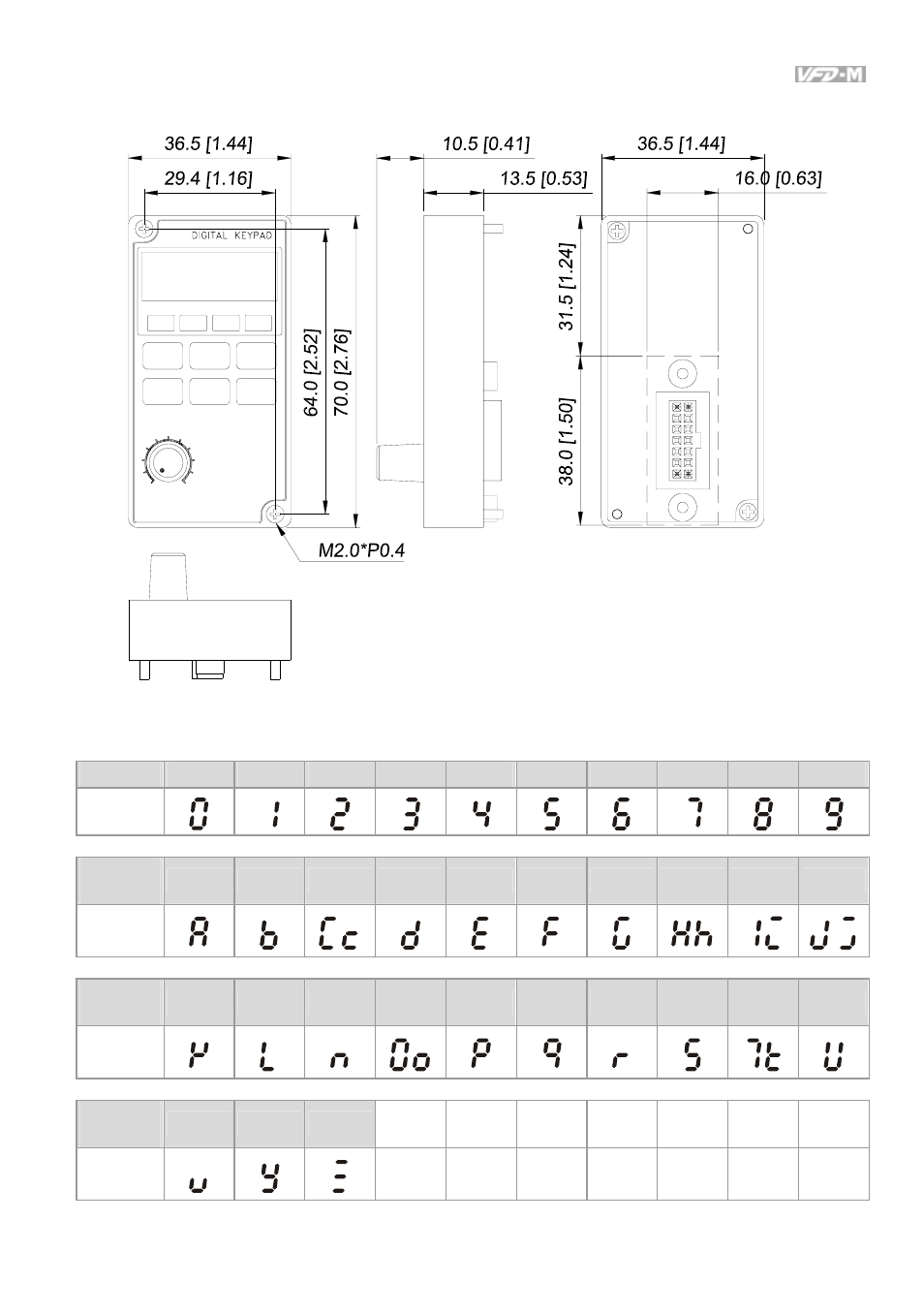

3.1.3 LC-M02E
Unit: mm [inch]
Reference Table for the 7-segment LED Display of the Digital Keypad
Digit
0
1
2
3
4
5
6
7
8
9
LED
Display
English
alphabet
A
b
Cc
d
E
F
G
Hh
I
Jj
LED
Display
English
alphabet
K
L
n
Oo
P
q
r
S
Tt
U
LED
Display
English
alphabet
v
Y
Z
LED
Display
