Appendix B Accessories|
Revision May 2008, ME14, SW V3.04 B-11

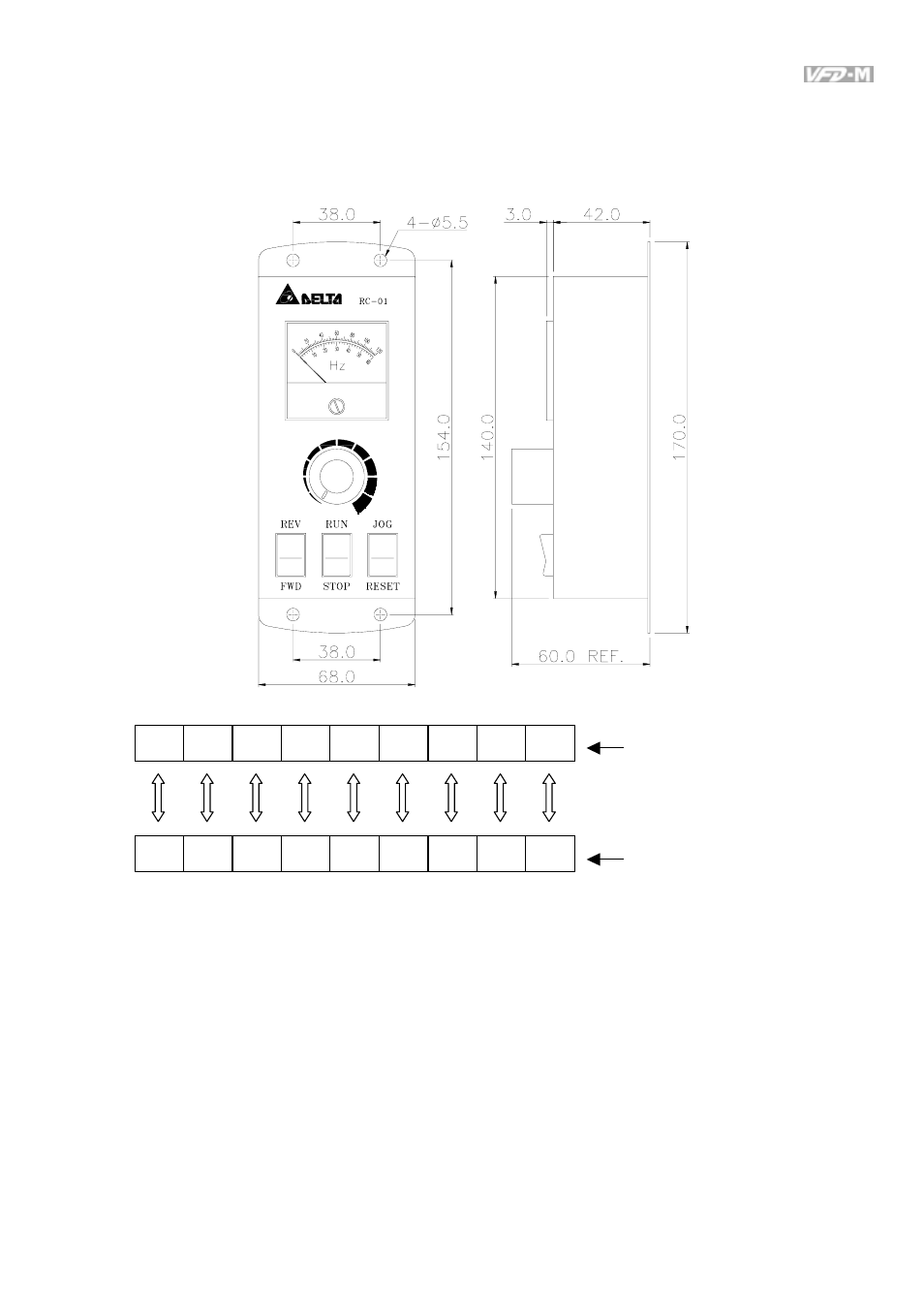

B.6 Remote Controller RC-01
Dimensions are in millimeter.
8 6 5 4 16 15 14 13 11 RC-01 terminal block
(wiring connections)
AFM GND AVI +10V GND M2 M0 M1 M3 VFD-M I/O block
VFD-M Programming
Pr.00 set to 01
Pr.01 set to 01 (external controls)
Pr.38 set to 01 (M0, M1 set as run/stop and fwd/rev)
Pr.39 set to 05 (M2 set for reset)
Pr.40 set to 09 (M3 set for jog select)
