B.7.3 operation flow chart – Delta Electronics VFD-M User Manual
Page 158
Appendix B Accessories|
Revision May 2008, ME14, SW V3.04
B-13
Display Message
Descriptions
The specified parameter setting.
The actual value stored in the specified parameter.
External Fault
“End” displays for approximately 1 second if the entered input data
have been accepted. After a parameter value has been set, the
new value is automatically stored in memory. To modify an entry,
use the
or
keys.
“Err” displays if the input is invalid.
Communication Error. Please check the AC motor drive user
manual for more details.

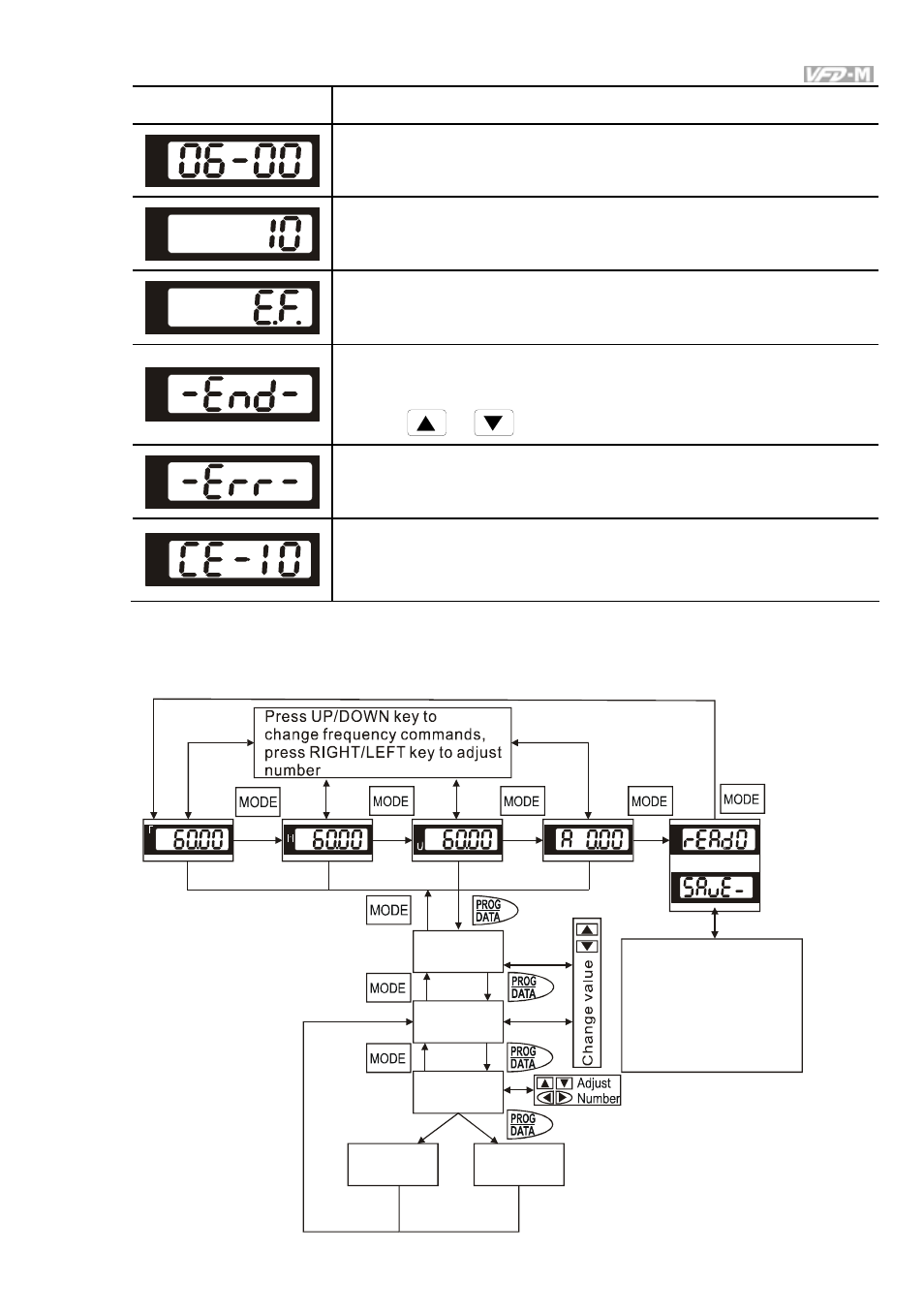

B.7.3 Operation Flow Chart
XX
XX-XX
XXXXX
-END-
VFD-PU06 Operation Flow Chart
Cannot
write in
-ERR-
Or
Succeed to
Write in
Press UP key to select
SAVE or READ.
Press PROG/DATA for
about 2 seconds or until
it is flashing, then save
parameters
or read parameters
.
from PU06 to
AC drive
from AC drive to PU06
