Page 31
Chapter 3 Keypad and Start Up|
3-2
Revision May 2008, ME14, SW V3.04
Displayed Message
Descriptions
The actual value stored within the specified parameter.
The AC drive forward run status.
The AC drive reverse run status.
“End” displays for approximately 1 second if input has been
accepted. After a parameter value has been set, the new value is
automatically stored in memory. To modify an entry, use the
and
keys.
“Err” displays, if the input is invalid.

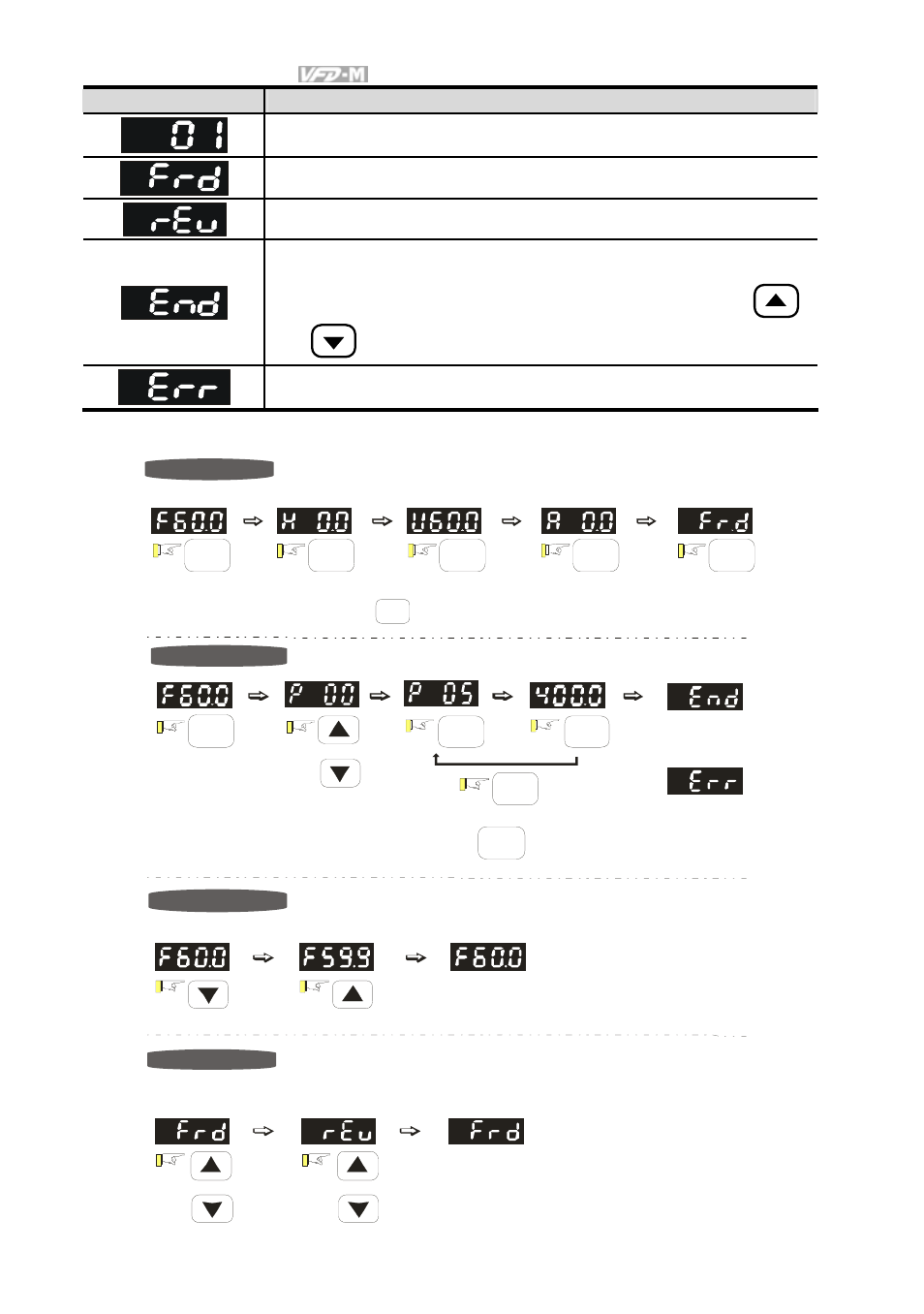

3.1.2 How to Operate the Digital Keypad LC-M02E
MODE
ENTER
or
START
MODE
MODE
MODE
MODE
GO START
ENTER
ENTER
MODE
START
To set direction
or
or
(When operation sour ce is digital keypad)
To modify data
NOTE: In the parameter setting mode, you can press to return to the selection mode.
MODE
parameter set
successfully
or
parameter set
er ror
move to previous
display
NOTE: In the selection mode, press to set the parameters.
ENTER
Selection mode
To set parameters
