After you finish the wiring, set the switch to position B.
LEDs 1 and 2 indicate the output voltage of the
operational amplifier IC. An LED lights if it is
connected to 1.5V or higher. In this experiment, we
connect the two LEDs in series, so they only light
when connected with about 3V. When they are off,
the output voltage of the operational amplifier must
be less than 3V.

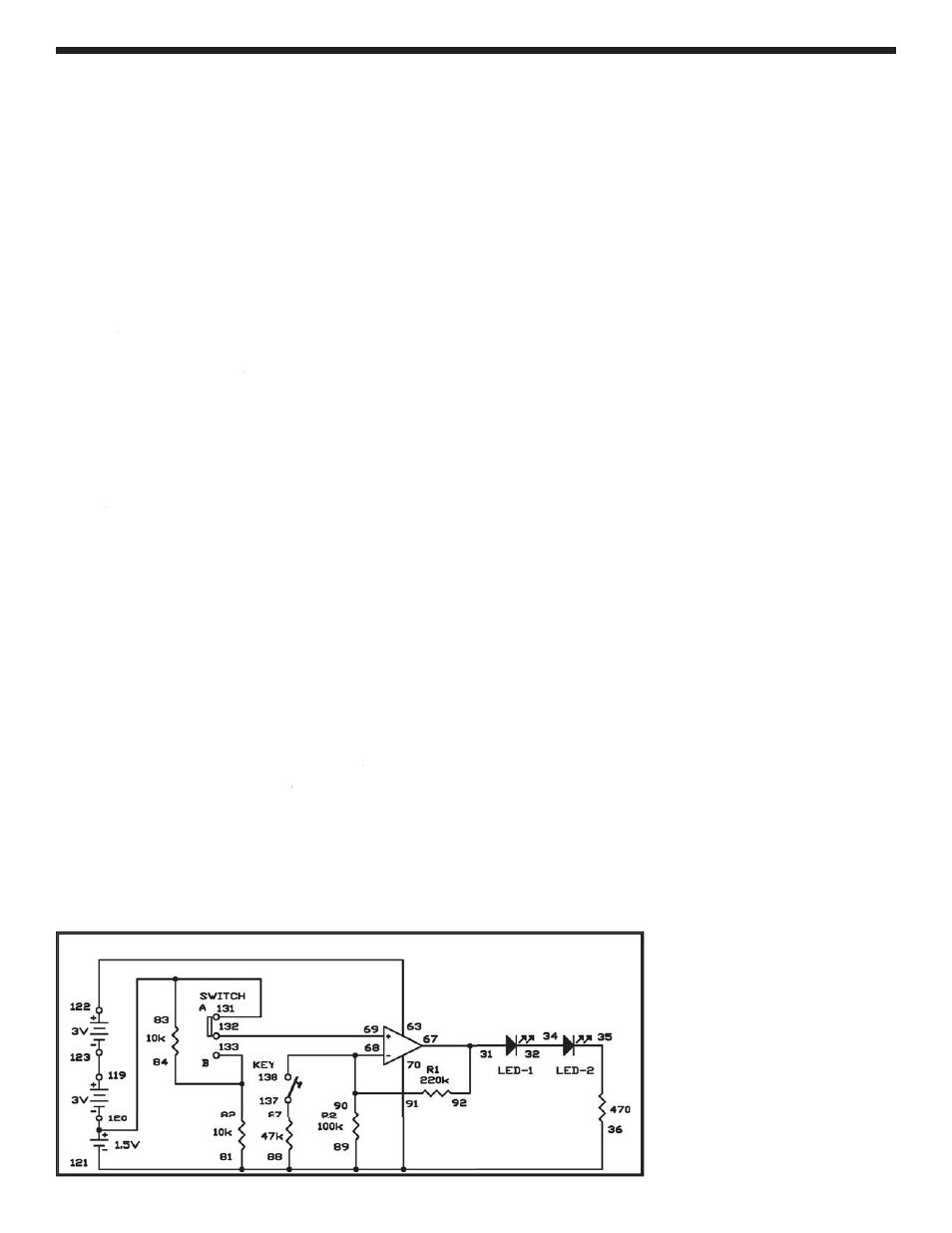

View the schematic diagram. With the switch at
position B, the 1.5V battery voltage is connected to
two 10k
Ω
k k resistors, with the positive terminal of the
operational amplifier connected between the
resistors. These two 10k
Ω
k k resistors divide the 1.5V
supply voltage in half. This signifies the positive input
terminal receives an input voltage of only 0.75V.
To total the output voltage of the operational amplifier
you multiply its input voltage by the amplification
factor (R1/R2) + 1. So, the output voltage is 0.75V x
((220k
Ω
k k / 100k
Ω
k k ) + 1) = 2.4V.
Slide the switch position A. This eliminates the 10k
Ω
k k
resistors from the circuit, so the amplifier’s positive
input terminal receives the full 1.5V input voltage.
Using the above equation, you can see that the
output voltage of the operational amplifier is now
1.5V x ((220k
Ω / 100kΩ) +1) = 4.8V. Because the
voltage supplied to them is more than 3V, the LEDs
light dimly.
Let’s alter the amplification factor. Slide the switch to
position B again and press the key. This adds the
47k
Ω resistor to the 100kΩ resistor in parallel,
making total resistance of R2 about 32k
Ω
k k . Now the
output voltage is 0.75V x ((220k
Ω
k k / 32k
Ω
k k ) +1) = 5.9V,
enough to light the LEDs brightly.
Now slide the switch to position A again (to connect
1.5V to the amplifier’s positive (+) input terminal), and
press the key. The LEDs light brightly. Calculating the
output voltage gives 1.5V x ((220k
Ω / 32kΩ) +1) =
11.8V. However, the actual output voltage will be
limited by the available battery voltage, which is 1.5V
+ 3.0V + 3.0V = 7.5V.
Notes:
EXPERIMENT #71: CHANGING INPUT VOLTAGE
Wiring Sequence:
31-67-92
32-34
81-89-88-70-36-121
63-122
68-90-91-138
69-132
82-84-133
83-131-120
87-137
119-124
-90-
Schematic
