Form I-RDH/REH/RHH/RXH (12-14), Page 10
5.0 Mounting and
Lifting

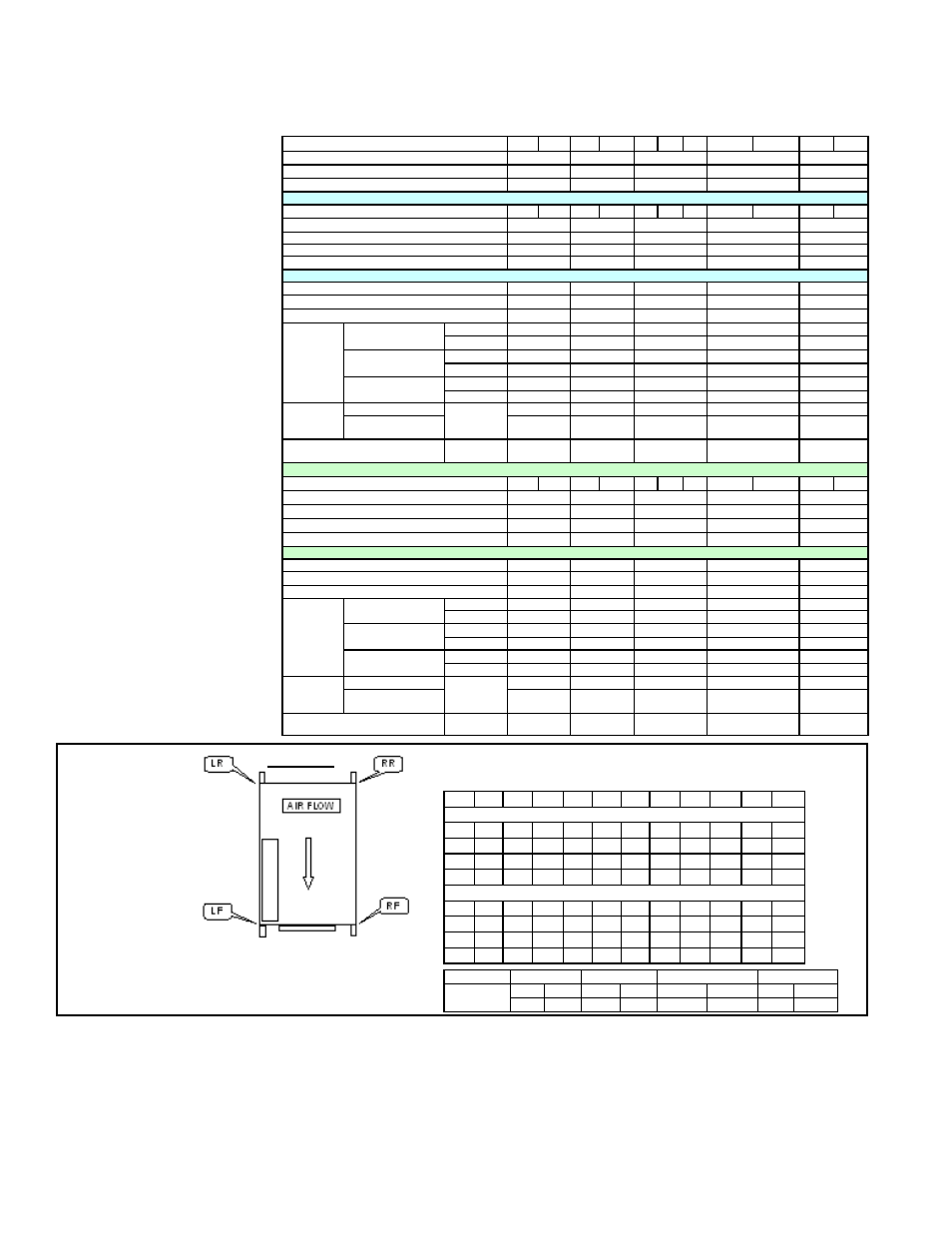

TABLE 5 - Weights
(lbs and kg) of Basic
System, Outside Air
Hood and Factory-
Installed Optional
Modules
5.1 Weights
Before installing, check the supporting structure to be sure that it has sufficient load-
bearing capacity to support the weight of the unit during installation and operation.
Lifting and mounting are the responsibility of the installer.
* Cooling coil cabinet
module weight is
estimated for heaviest
coil. If more accurate
information is needed,
check with your
distributor or Reznor ®
Representative who
either has the specific
information in the order
specifications or has
software to generate the
information.
Model RDH (gas-fired heat) 75 100 125 150 175 200 225 250 300 350 400A
Model REH (electric heat) 10A, 20A, 40A 15B, 30B, 60B N/A 30D, 60D, 90D, 120D 40E, 80E, 120E
Model RHH (high efficiency gas-fired heat) -- -- 130 / 180 260 350
Model RXH (no heat) 000A 000B 000C 000D 000E
Approximate Net Weights - lbs (does not include motor weight)
Basic Gas Heat & Blower Section (Model RDH) 355 364 454 463 526 552 552 677 692 793 805
Basic Electric Heat & Blower Section (Model REH) 364 462 N/A 692 804
High Efficiency Gas Heat & Blower Section (RHH) -- -- 539 / 544 729 889
Blower Section - no heat (Model RXH) 278 348 393 494 556
Option AS2 Outside Air Hood (field installed) 70 76 76 87 96
Approximate Weights (lbs) of factory-attached modules (add to wt of basic unit above)
Optional Downturn Plenum 120 124 130 140 150
Option AR8, On/Off Damper (no mixing box) 34 45 56 73 85
Option MXB1 Mixing Box 146 166 166 201 219
Cooling Coil
Module with
heaviest coil
weight*
DX coil (without reheat
pump)
4 row coil 214 252 256 329 365
6 row coil 235 280 284 373 418
DX coil (with reheat
pump)
4 row coil 331 382 394 494 547
6 row coil 352 410 422 538 600
Chilled water (filled)
(no reheat pump)
4 row coil 301 363 373 497 559
6 row coil 351 431 441 604 686
Evaporative
Cooling
Module
with Dry Media
12" media
120 141 136 172 190
with Wet Media & 3" of
Water (full sump)
262 263 218 279 272
Hot Water Heat Module for RXH with
HW2 only (does not include water weight)
with 4 row, 14
fpi coil
145 175 177 236 263
Approximate Net Weights - kg (does not include motor weight)
Basic Gas Heat & Blower Section (Model RDH) 161 165 206 210 239 250 250 307 314 360 365
Basic Electric Heat & Blower Section (Model REH) 165 210 N/A 314 365
High Efficiency Gas Heat & Blower Section (RHH) -- -- 244 / 247 331 403
Blower Section - no heat (Model RXH) 126 158 178 224 252
Option AS2 Outside Air Hood (field installed) 32 34 34 39 44
Approximate Weights (kg) of factory-attached modules (add to wt of basic unit above)
Optional Downturn Plenum 54 56 56 63 68
Option AR8, On/Off Damper (no mixing box) 15 20 25 33 39
Option MXB1 Mixing Box 66 75 75 91 99
Cooling Coil
Module with
heaviest coil
weight*
DX coil (without reheat
pump)
4 row coil 97 114 116 149 166
6 row coil 107 127 129 169 190
DX coil (with reheat
pump)
4 row coil 150 173 179 224 248
6 row coil 160 186 191 244 272
Chilled water (filled)
(no reheat pump)
4 row coil 137 165 169 225 254
6 row coil 159 195 200 274 311
Evaporative
Cooling
Module
with Dry Media
305mm
media
54 64 62 78 86
with Wet Media &
76mm of Water (full)
119 119 99 127 123
Hot Water Heat Module for RXH with
HW2 only (does not include water weight)
with 4 row, 14
fpi coil
66 79 80 107 119
TABLE 6 - Approximate Corner Weights (lbs &
kg) of Basic Heat Module and Blower Section
control side
NOTES: If controls are on the right side, switch left and
right side weights. Weights do not include the blower motor
or any optional modules. For additional corner weights
check www.RezSpec.com or contact your distributor.
FIGURE 5 -
Corner Weight
Locations
RDH 75 100 125 150 175 200 225 250 300 350 400A
Approx Corner Weights (lbs) - Basic Heater & Blower only
LR 77 79 98 100 114 117 120 147 150 172 174
RR 69 71 89 90 103 106 108 132 135 155 157
RF 101 104 129 132 150 154 157 193 197 226 229
LF 108 110 138 140 160 164 167 205 210 241 244
Approx Corner Weights (kg) - Basic Heater & Blower only
LR 35 36 45 46 52 53 54 67 68 78 79
RR 31 32 40 41 47 48 49 60 61 70 71
RF 46 47 59 60 68 70 71 87 89 102 104
LF 49 50 62 64 72 74 76 93 95 109 111
5.2 Mounting Model RHH is designed to be mounted on a roof curb.
Model RDH, REH, and RXH outdoor systems are designed to be mounted on a roof
or a cement slab. The system may be set directly on a slab without any additional sup-
port. When installed on a roof, either a manufacturer-designed roof curb, a manufac-
turer-designed roof curb adapter (required if replacing a Reznor ® Model RGB or RPB),
a field-supplied roof curb, or other field-supplied support is required.
NOTE: A roof curb is recommended with a downturn plenum and/or bottom return air
to provide a weatherproof installation.
Top View
REH 10A, 20A, 40A 15B, 30B, 60B 30D, 60D, 90D, 120D 40E, 80E, 120E
Approx Wt of
Each Corner
lbs kg lbs kg lbs kg lbs kg
74 34 92 42 131 59 149 68
