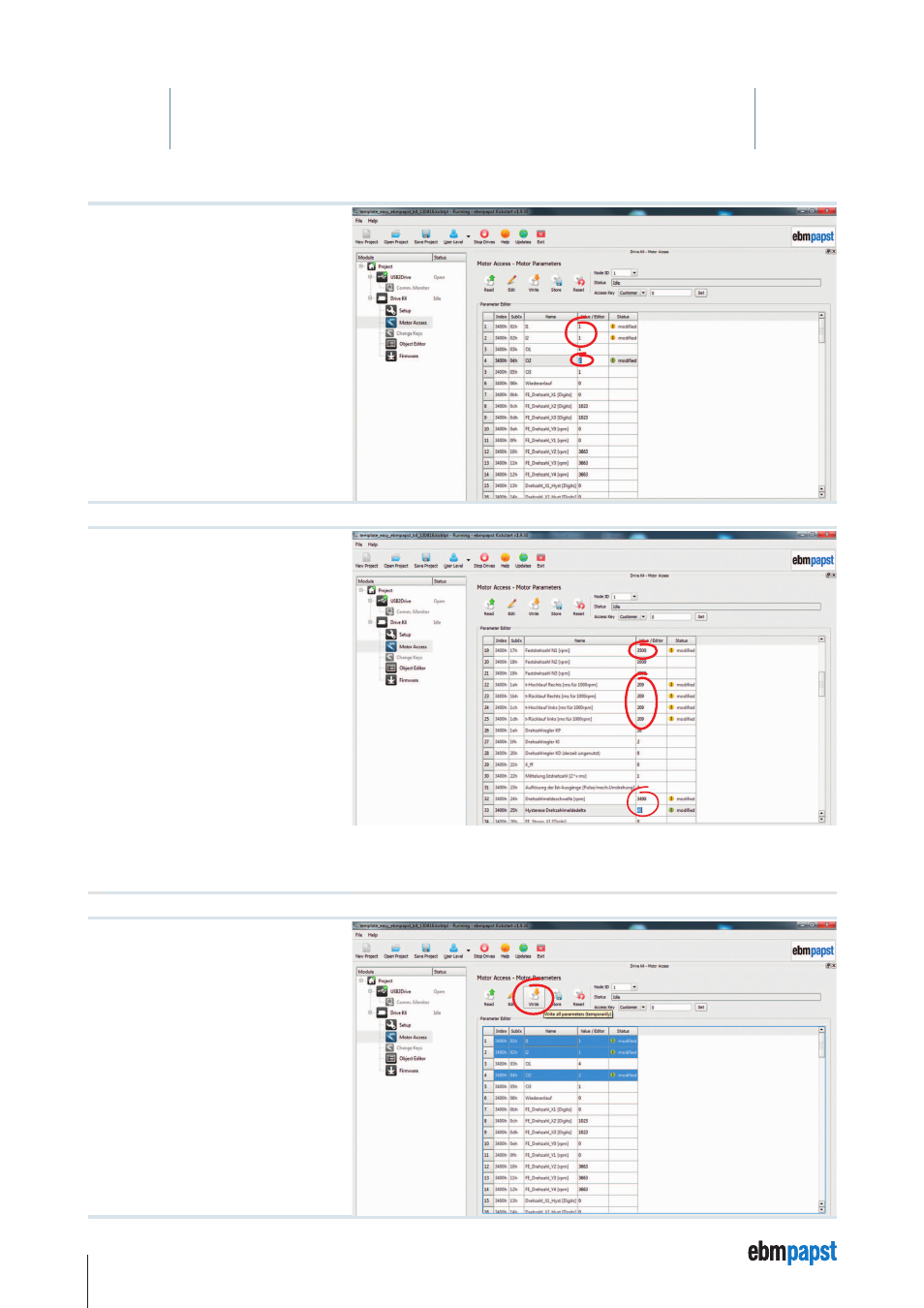

7 Parameterisation of the Operating Modes
3 • Operating mode selection:
Parameter O1h = 1, Parameter O2h = 1
• Speed signal O2 (OUT 2):
Parameter O4h = 2
4 • Fixed speed parameterisation:
Parameter 17h = 3500
• Parameterisation of
acceleration / braking (deceleration)
ramp:
Parameter 1ah, 1bh, 1ch, 1dh = 209 *
• Set speed signalling threshold: Parameter
24h = 3490
• Set signalling threshold hysteresis:
Parameter 25h = 40
* Determination of the acceleration value in ms
for 1000 rpm
Speed input: 3500 rpm, acceleration time: 730
ms
acceleration value = acceleration
time / speed difference x 1000
730 / 3500 x 1000 = 208.57 ~ 209
5 Write parameters: Mark (select) the set
parameters and write in the RAM memory
area with the “Write” command.
