3 Product Description

3.4 Rating plate

The rating plate with the respective features of the ECI-63.XX-K4 and VDC-3-49.15-K4 motors is attached to the housing.

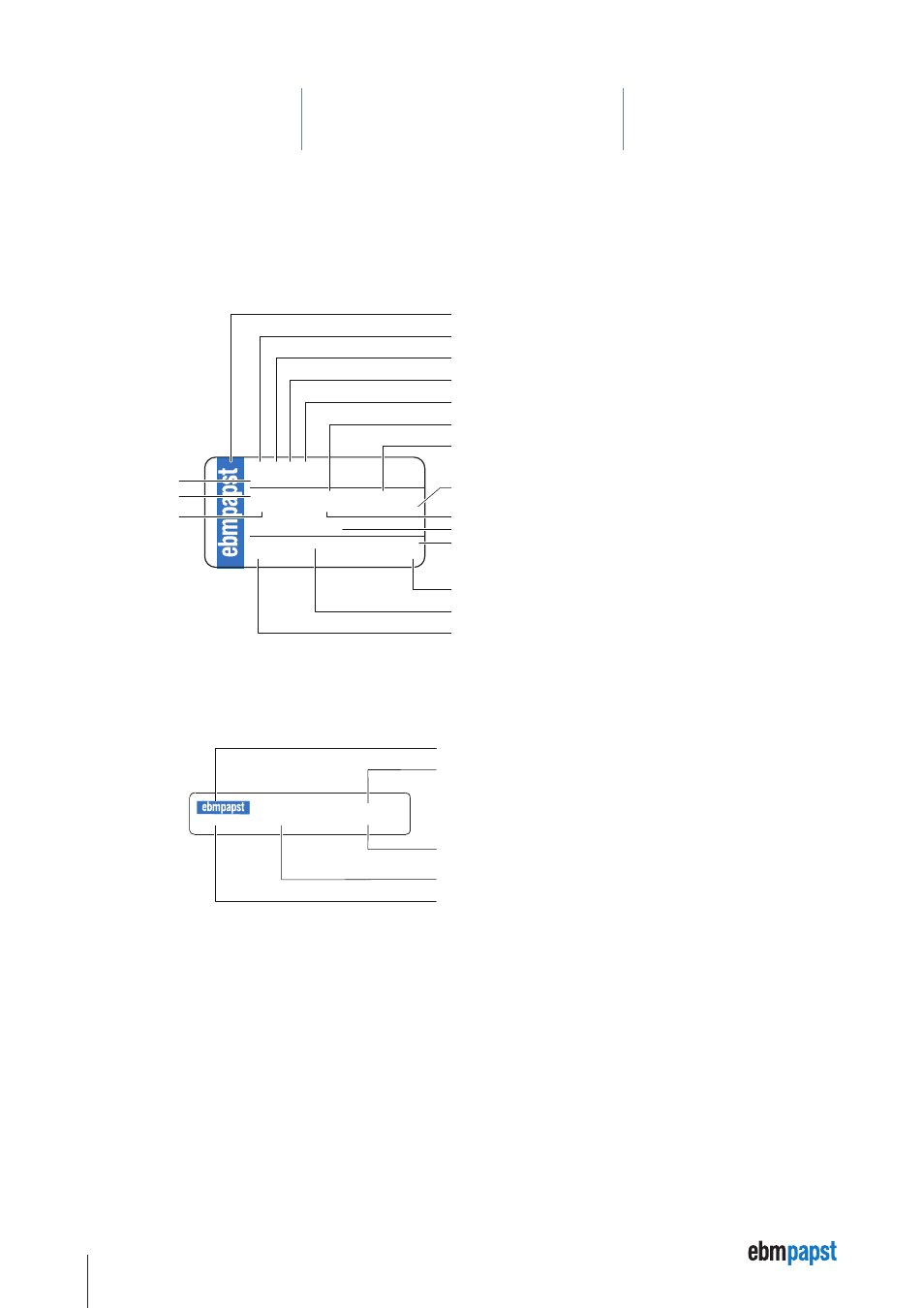

3.4.1 Rating plate ECI-63.XX-K4

ECI 63.20-K4
9326320400
24 VDC

425 mNm

4000 U/min

IP 54

E

8,5 A

US-Pat. 7230359B2
ebm- papst St. Georgen

04/13

DE (S)

xx

Product No.

Nominal voltage

Class of protection

Power consumption

Thermal class

US patent No.

Production date MM/YY

Serial number

Production plant

Country code

Company logo

Motor type, ECI = Electronically Commutated Internal Rotor Motor

Diameter of motor housing = 63 mm

Overall length

Electronic class

Nominal torque

Nominal speed

3.4.2 Typenschild VDC-3-49.15-K4

937 4915 400

24 VDC 04/2014 2465 5497

Serial number

Production date MM/YY

Nominal voltage

Company logo

Product number

This manual is related to the following products:
