7 Parameterisation of the Operating Modes
The parameterisation of the operating modes is described in this chapter. 38 operating modes are available to choose from for the electronic
class K4. The operating modes are selected using parameters Mode 1 and Mode 2. The descriptions are laid out as follows:
7.1 application example
Task: The motor should reach a fixed speed via a defined acceleration / braking ramp. If the speed has been reached a corre-
sponding display should appear.
Setpoint values: Target speed n = 3500 rpm, acceleration time = 730 ms.
Basic conditions:
After switching off: Brake motor / transition in free-wheeling? The motor should switch to free-wheeling.
Acceleration direction of rotation? Direction of rotation cw
Signal from a higher-level control? Yes. = 1 output (On / Off), 1 input (target speed reached signal).
Procedure:
Connect the electrical system ( see Chapter 5.2 Installing the drive, page 22 ).
Start the “Kickstart” PC software at the PC.

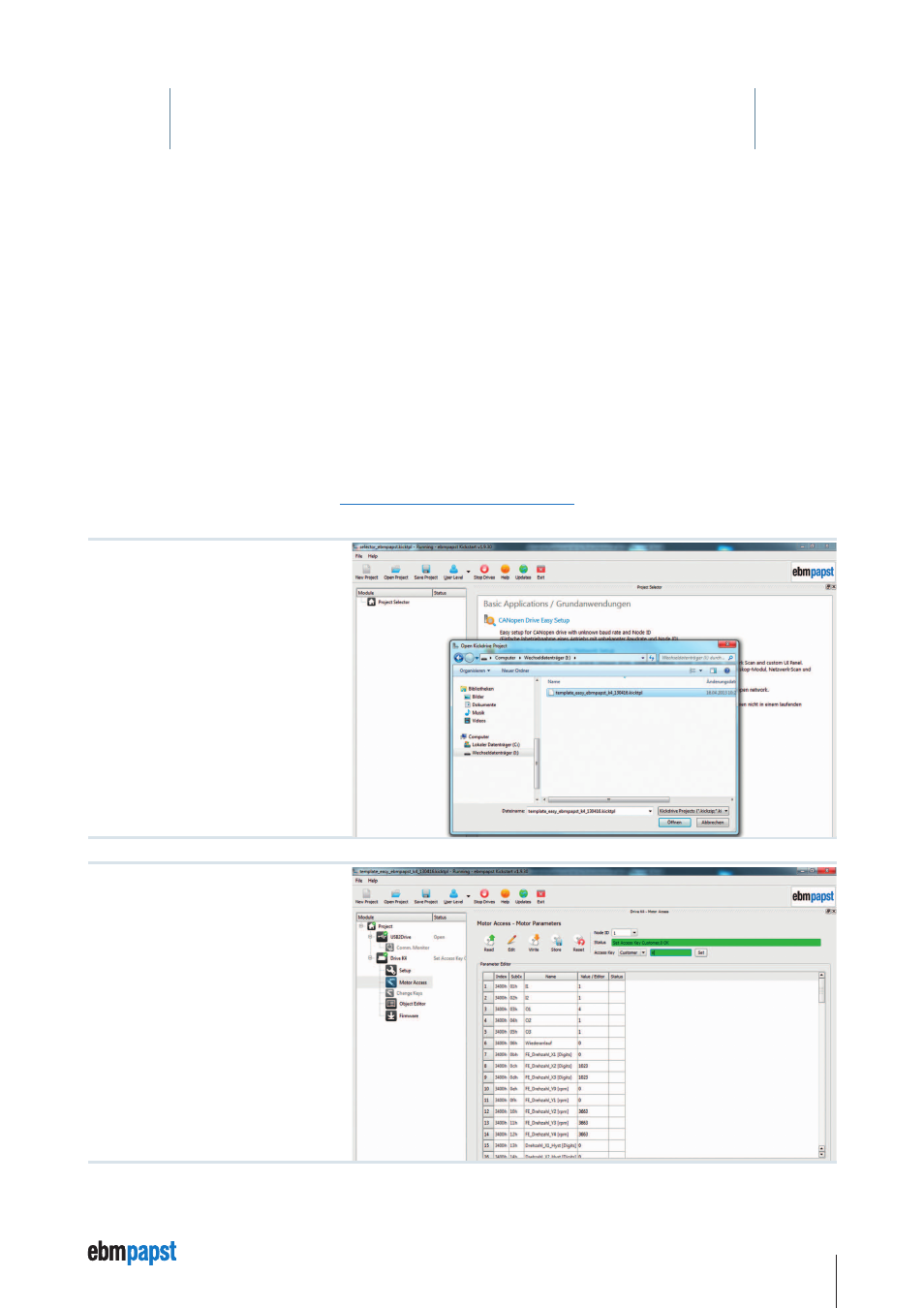

1 Open project file
(File type .kicktpl / .kickzip)
2 Enter user password
(Access Key “Customer” = “0”)
and confirm with “Set”.
