AERCO SmartPlate User Manual
Page 93
SmartPlate Installation, Operation & Maintenance Manual
APPENDIX A – MODBUS CONTROL AND COMMUNICATION
OMM-0069_0E
AERCO International, Inc.
100 Oritani Dr. Blauvelt, NY 10913
Page 93 of 138
SP-100
Phone: 800-526-0288
PRI: 11/26/2013
4. Place Temperature Indicating Controller back into Control Box Assembly and power up
unit. The following screen will appear. (See Figure A-3)

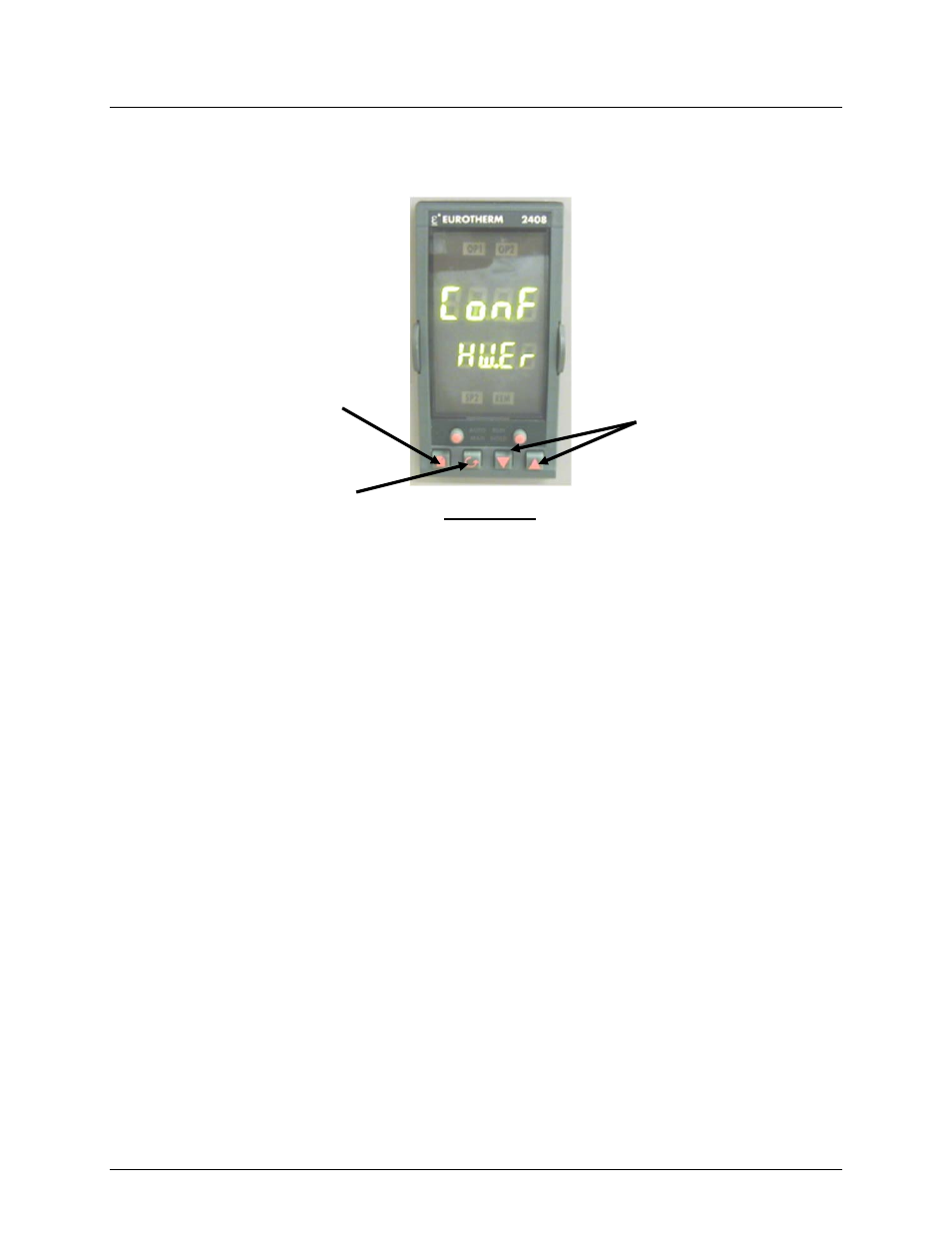

Figure A-3
5. The Controller will report a hardware error as indicated in Figure A-3. Press the ▲(up)
arrow key located on the right side of the Temperature Controller until “8” appears on the
lower half of the screen.
6. Press the page button located on the left side of the Temperature Indicating Controller
until “Exit” appears on the top half of the screen.
7. Press the ▲ / ▼ (up/down) arrow key to choose “yes”.
8. Wait a moment as the screen updates. The hardware error will no longer be displayed.
9. This completes installation of the Communications Board.
Scroll
Butto
Page
Button
Up/Down
Arrow Keys
