AERCO SmartPlate - Manual (Page 122)

SmartPlate Installation, Operation & Maintenance Manual
APPENDIX D – SMARTPLATE DRAWINGS
Page 122 of 138 AERCO International, Inc.  100 Oritani Dr.  Blauvelt, NY 10913 OMM-0069_0E
PRI: 11/26/2013 Phone: 800-526-0288 SP-100

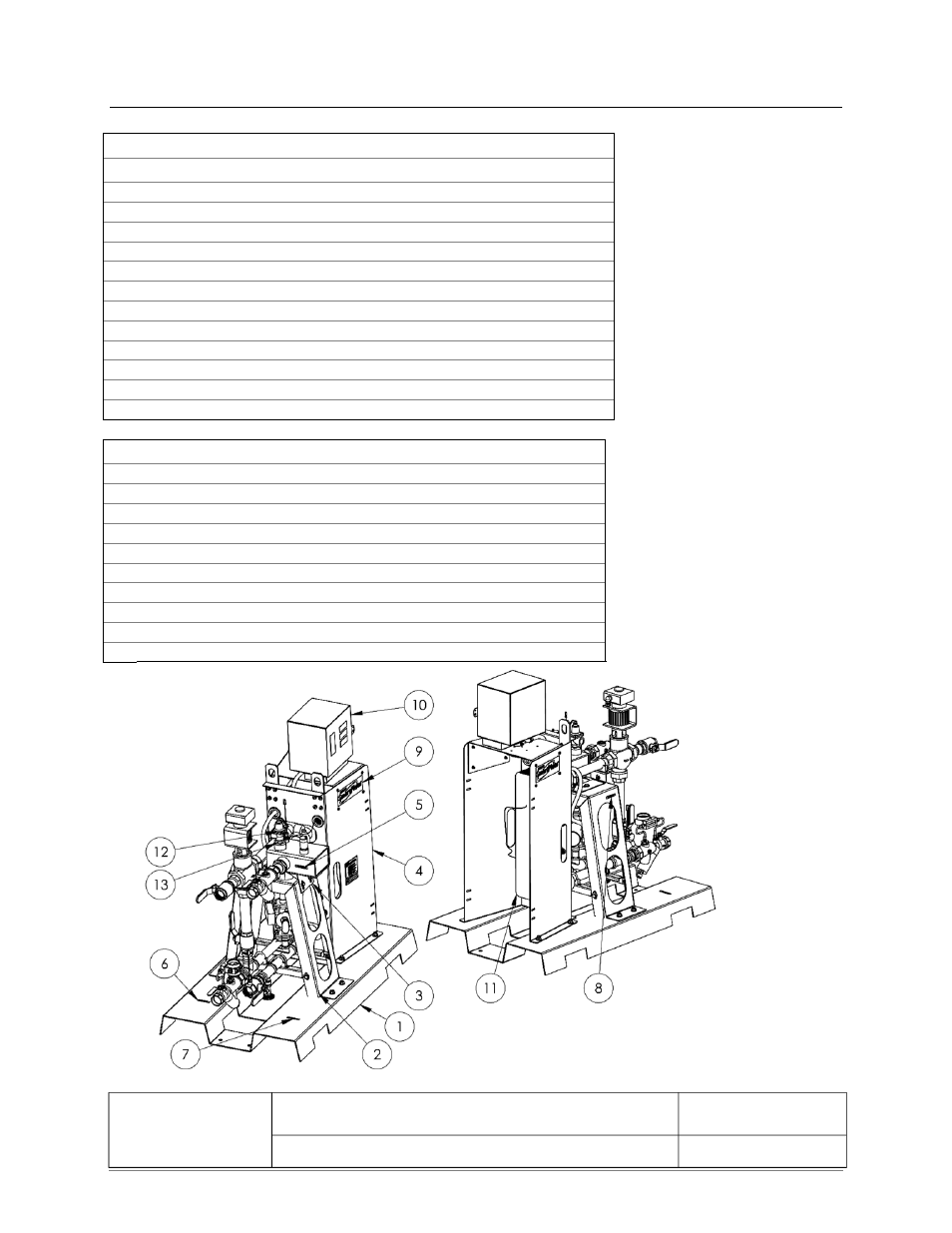

BASE COMPONENTS AND LABELS
Item # Qty Part # Description
1 1 34026 BASE: SMARTPLATE
2 1 35015 SUPPORT A‐FRAME: SMARTPLATE
3 1 33083 BRACKET: MIXING BOX
4 1 24198 SUPPORT BRACKET ASSEMBLY: BRAZED HX
5 1 72010‐18 LABEL: DOMESTIC INLET
6 1 72010‐19 LABEL: BOILER INLET
7 1 72010‐17 LABEL: DOMESTIC OUTLET
8 1 72010‐20 LABEL: BOILER OUTLET
9 2 74010 LOGO: SMARTPLATE
11 1 SEE TABLE BRAZED PLATE HEAT EXCHANGER
12 1 SEE TABLE RELIEF VALVE (P&T )
13 1 SEE TABLE HEX RED. BUSHING
Description
Item 11 Item 12 Item 13
SP‐23 (60 Hz) 28121‐1 92065‐1 12610‐8‐5
SP‐33 (60 Hz) 28121‐2 92065‐2 12610‐8‐6
SP‐45 (60 Hz) 28121‐3 92065‐5 12610‐8‐6
SP‐69 (60 Hz) 28121‐4 92065‐3 12610‐8‐7
SP‐150 (60 Hz) 28121‐5 6462‐150 N/A
SP‐23 (50 Hz) 28121‐1 92065‐1 12610‐8‐5
SP‐33 (50 Hz) 28121‐2 92065‐2 12610‐8‐6
SP‐45 (50 Hz) 28121‐3 92065‐5 12610‐8‐6
SP‐69 (50 Hz) 28121‐4 92065‐3 12610‐8‐7
SP‐150 (50 Hz) 28121‐5 6462‐150 N/A
AERCO
International, Inc.
Blauvelt, NY 10913
SmartPlate Part List 07/15/2013
29116-TAB rev E (PL-A-160) Sheet 1 of 6
