Important, Chapter 8 – corrective maintenance – AERCO SmartPlate User Manual
Page 58
SmartPlate Installation, Operation & Maintenance Manual
CHAPTER 8 – CORRECTIVE MAINTENANCE
Page 58 of 138
AERCO International, Inc.
100 Oritani Dr. Blauvelt, NY 10913
OMM-0069_0E
PRI: 11/26/2013
Phone: 800-526-0288
SP-100
MANIFOLD
HEAT EXCHANGER
(BEHIND SUPPORT ASSY)
DRAIN
VALVE
BOILER
WATER
INLET
BOILER
WATER
OUTLET
DHW
OUTLET
COLD
WATER
INLET
RECIRC.
PUMP
ISOLATION
BALL VALVES
ISOLATION
BALL VALVES
AIR
VENT

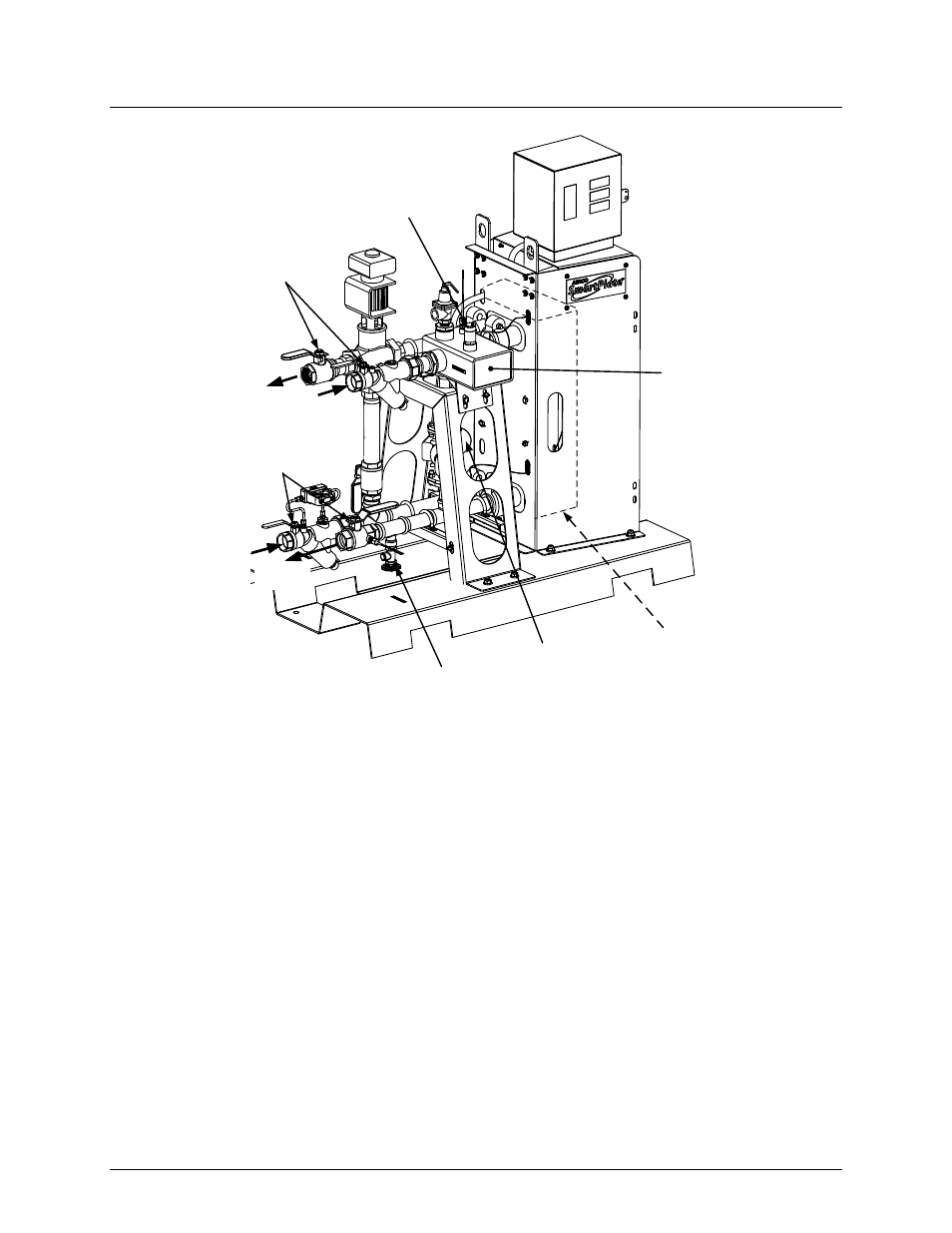

Figure 8-1. SmartPlate Isolation Valve Locations
5. Refer to Table 8-1 to determine the approximate amount of water to drain from the Heat
Exchanger.
IMPORTANT
The De-Scaling Solution used must be compatible with wetted
materials of stainless steel, copper, brass and bronze. AERCO
recommends the AERCO HydroSkrub de-scaler. Contact your
AERCO representative for more information.
