AERCO SmartPlate User Manual
Page 103
SmartPlate Installation, Operation & Maintenance Manual

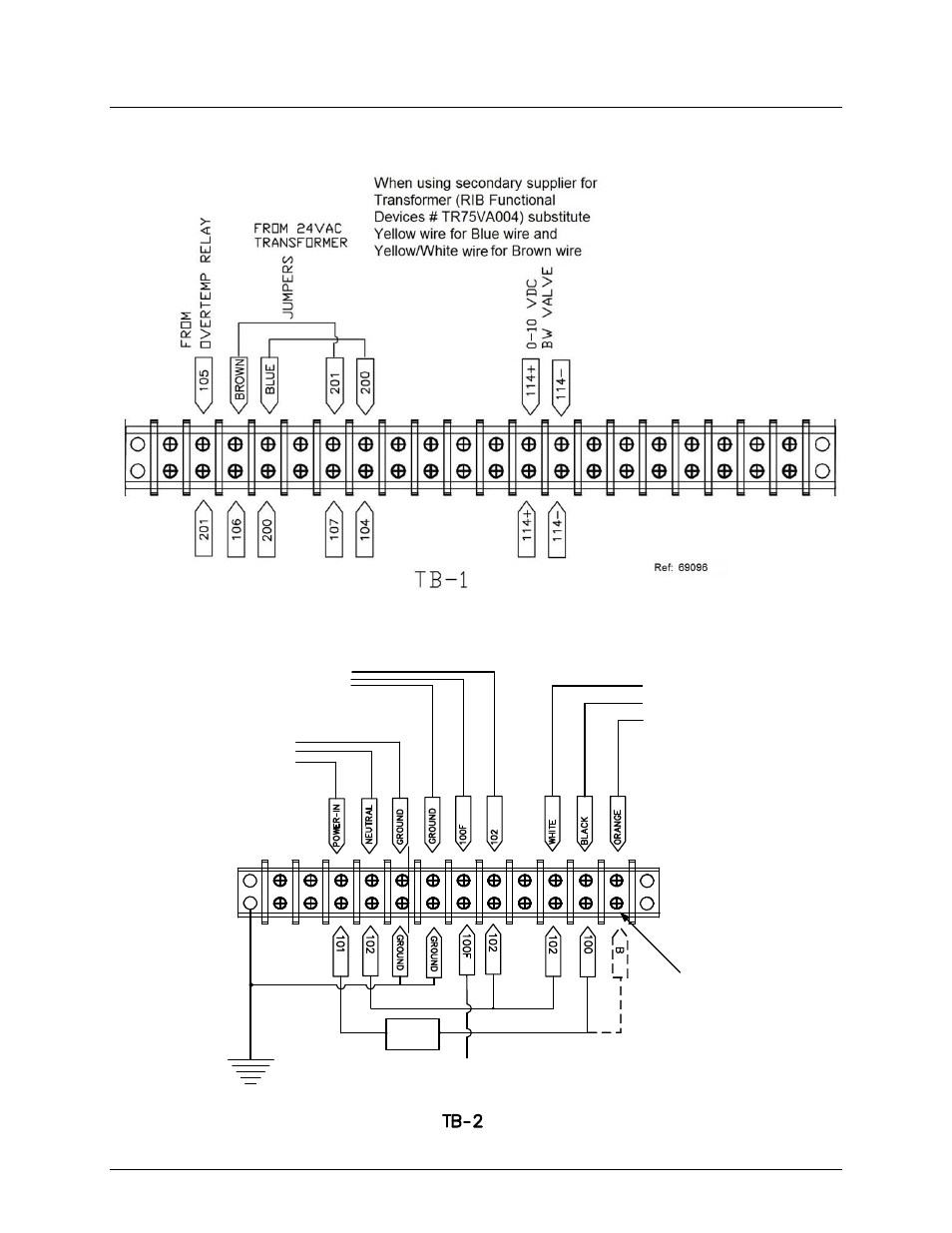

APPENDIX B – ECS/SP WIRING DIAGRAM
OMM-0069_0E
AERCO International, Inc.
100 Oritani Dr. Blauvelt, NY 10913
Page 103 of 138
SP-100
Phone: 800-526-0288
PRI: 11/26/2013
INTERNAL RECIRC. PUMP
120/240 VAC
120/24 VAC
220/24 VAC
TRANSFORMER
POWER IN
FROM
FUSE
POWER
SWITCH
FOR 220 VAC, WIRE #100
MUST BE CONNECTED
TO THIS TERMINAL
