SmartPlate Installation, Operation & Maintenance Manual
CHAPTER 8 – CORRECTIVE MAINTENANCE
Page 76 of 138 AERCO International, Inc.  100 Oritani Dr.  Blauvelt, NY 10913 OMM-0069_0E
PRI: 11/26/2013 Phone: 800-526-0288 SP-100

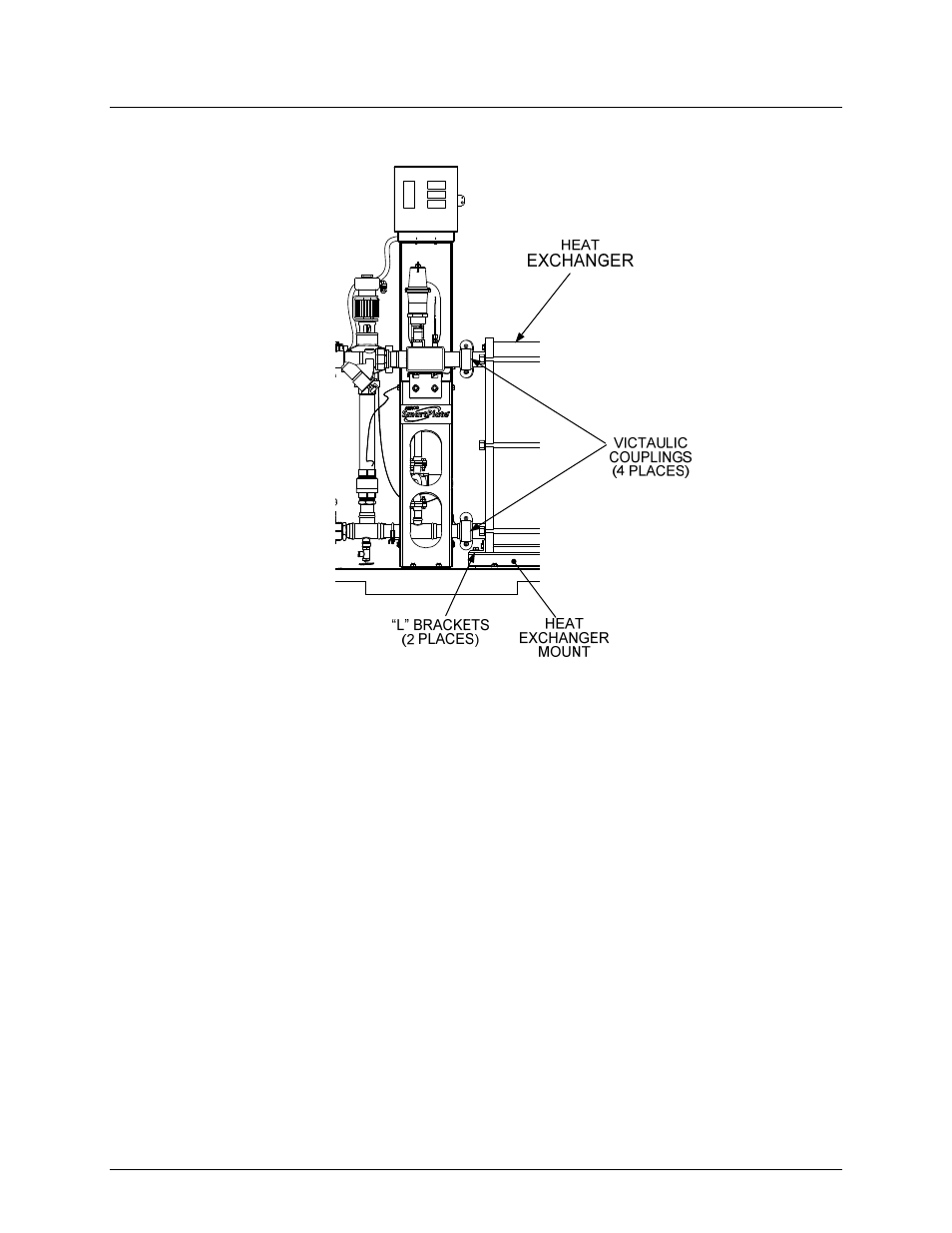

Figure 8-17. Domestic Water Side - Double-Wall Partial View
8. If the SmartPlate is a Model SPDW61 or SPDW113 (largest size), remove the U-bolt
securing the Heat Exchanger support bar. Also, for SmartPlate Model SPDW61, remove
the "L" bracket.
9. If the SmartPlate is not a Model SPDW113 or SPDW61, use a 3/4" socket wrench to
remove the horizontal hex head screw and washer shown in Figure 8-18. Also, loosen and
remove, the hex nut securing the "L" bracket to the heat exchanger mount.
