SmartPlate Installation, Operation & Maintenance Manual
CHAPTER 2 – INSTALLATION
OMM-0069_0E AERCO International, Inc.  100 Oritani Dr.  Blauvelt, NY 10913 Page 13 of 138
SP-100 Phone: 800-526-0288 PRI: 11/26/2013
In multiple unit installations, it is important to plan the position of each unit in advance. Sufficient
space for piping connections and future service/maintenance requirements must also be taken
into consideration. All piping must include ample provisions for expansion.
Figure 2-2 a. Single-Wall Model
Figure 2-2 b . Double-Wall Model

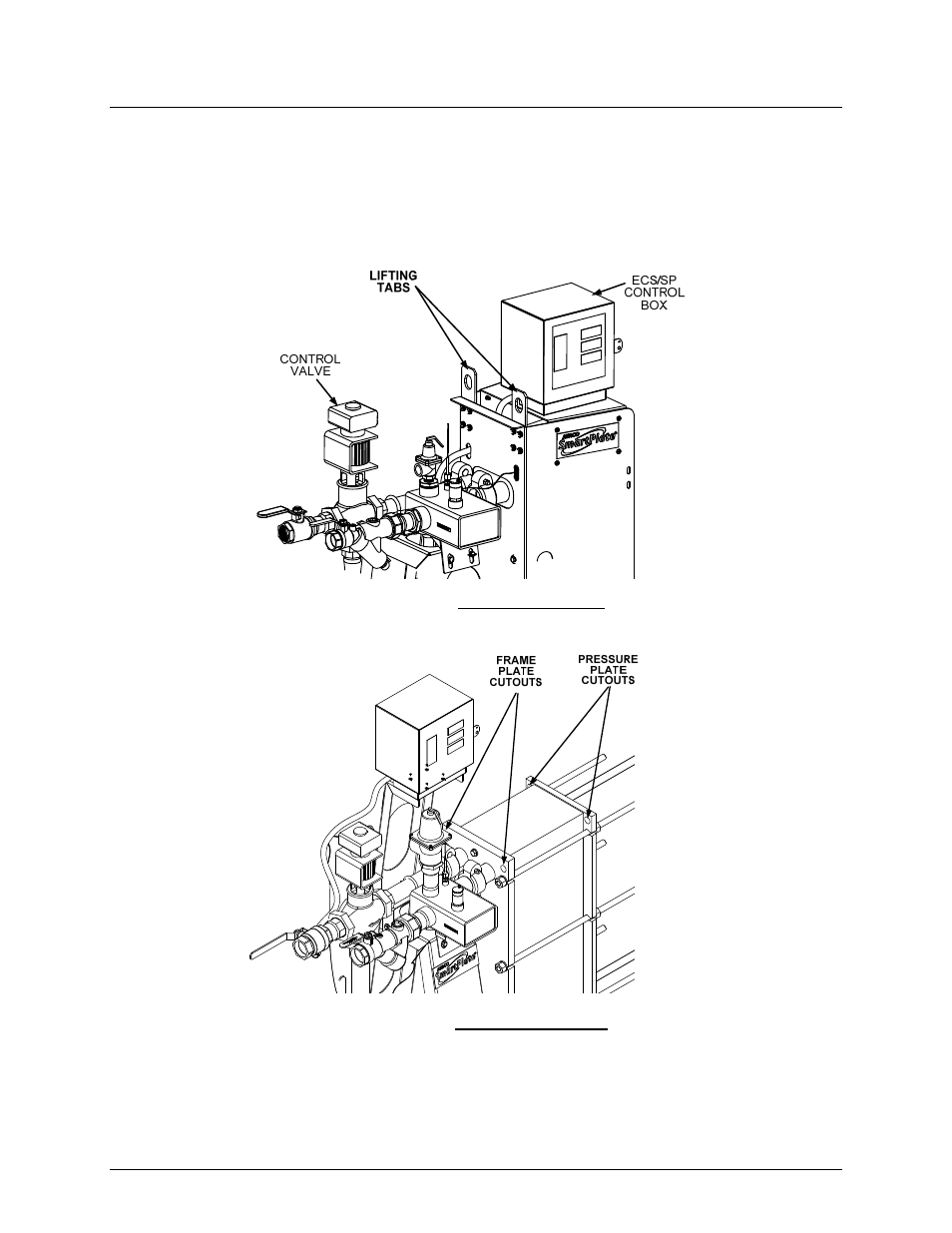

Figure 2-2. SmartPlate Lifting Provisions
