SmartPlate Installation, Operation & Maintenance Manual
APPENDIX D – SMARTPLATE DRAWINGS
Page 134 of 138
AERCO International, Inc.
100 Oritani Dr. Blauvelt, NY 10913
OMM-0069_0E
PRI: 11/26/2013
Phone: 800-526-0288

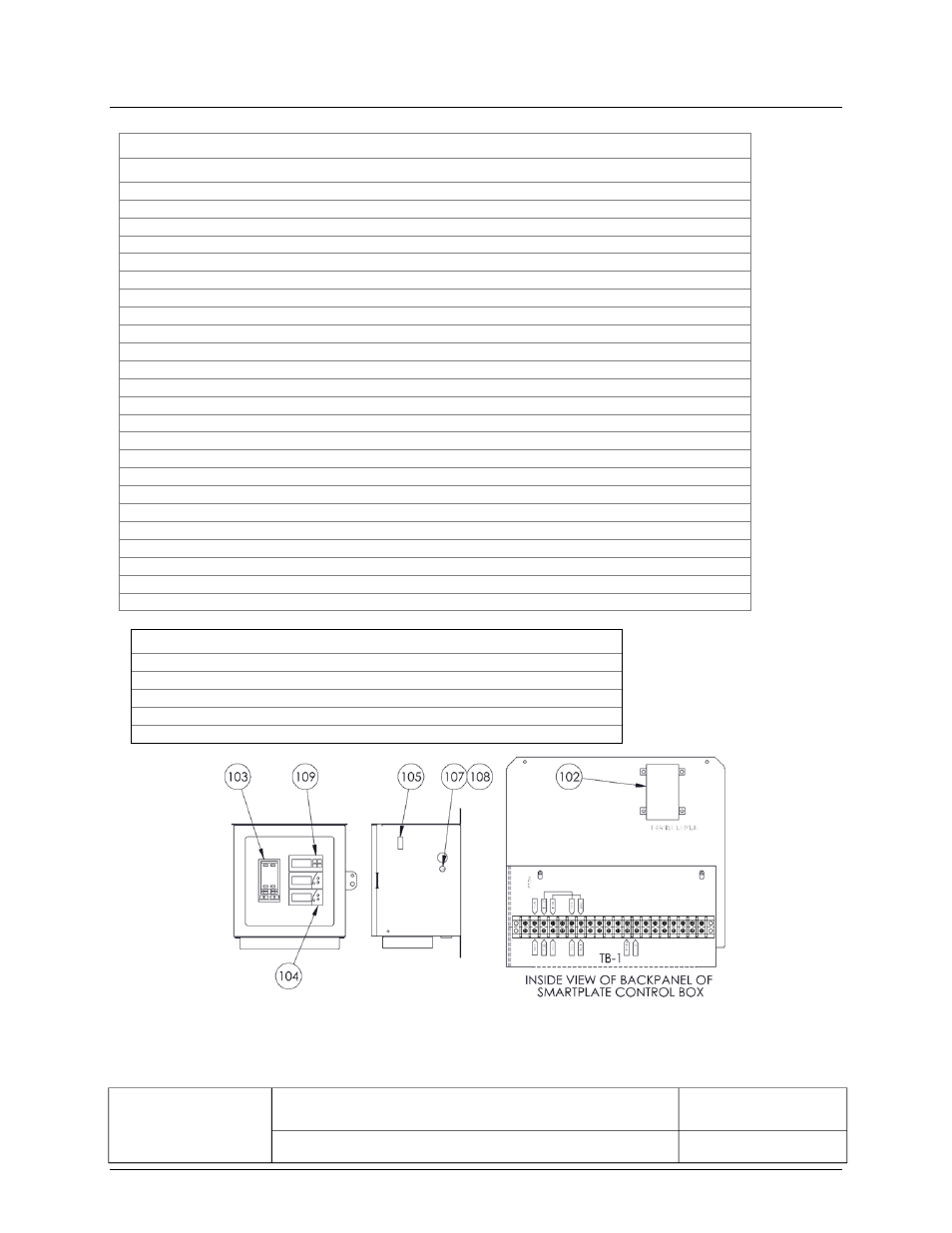

SP-100
CONTROL BOX ASSEMBLY
Item # Qty Part #
Description
102
1
65082
TRANSFORMER, X075CBA, 120/240 TO 24 VAC
103
1
64028‐7
TEMPERATURE INDICATOR CONTROLLER ‐ SMARTPLATE SP23
64028‐8
TEMPERATURE INDICATOR CONTROLLER ‐ SMARTPLATE SP33
64028‐9
TEMPERATURE INDICATOR CONTROLLER ‐ SMARTPLATE SP45
64028‐10
TEMPERATURE INDICATOR CONTROLLER ‐ SMARTPLATE SP69
64028‐11
TEMPERATURE INDICATOR CONTROLLER ‐ SMARTPLATE SP150
104
2
64056
BOLIER WATER TEMPERATURE INDICATOR
105
1
60003
ON/OFF SWITCH
*
106
1
63009‐3
EXTERNAL HARNESS (COMPLETE HARNESS)
THE FOLLOWING PART NUMBERS ARE SUB‐COMPONENTS OF 63009‐3:
*
1
63009‐52
HOT WATER OUT‐TO‐TEMP CTRL. WIRING HARNESS
*
1
63009‐53
HOT WATER OUT‐TO‐OVER TEMP SW. WIRING HARNESS
*
1
63009‐55
BOILER WATER IN WIRING HARNESS
*
1
63009‐57
BOILER WATER OUT WIRING HARNESS
*
1
63009‐58
MIXED INLET TEMP WIRING HARNESS
*
1
63009‐61
RECIRCULATION PUMP WIRING HARNESS
*
1
63009‐64
CONTROL VALVE WIRING HARNESS
THE FOLLOWING PART NUMBERS ARE SUB‐COMPONENTS OF 63009‐64:
*
63009‐62
ACUATOR SIGNAL WIRING HARNESS
*
63009‐63
ACUATOR POWER WIRING HARNESS
107
1
65094‐1
FUSE
108
1
65095
FUSE HOLDER
109
1
60014
OVER TEMPERATURE SWITCH
*
NOT SHOWN IN DRAWING
SMARTPLATE MODEL COMPLETE CONTROL BOX PART NUMBER
SP23
28047‐8
SP33
28047‐9
SP45
28047‐10
SP69
28047‐11
SP150
28047‐12
AERCO
International, Inc.
Blauvelt, NY 10913
SmartPlate – Double Wall Part List
07/15/2013
29117-TAB rev C (PL-A-161)
Sheet 7 of 7
