2. Open the swing-down panel and locate the 24 VAC Transformer on the back interior wall
of the Control Box (Figure 8-13, View D - D).
3. Disconnect the Transformer wire leads from terminal strips TB-1 and TB-2.
4. Remove the mounting hardware and 24 VAC Transformer from the Control Box.
5. Replacement is accomplished by reversing the previous steps.

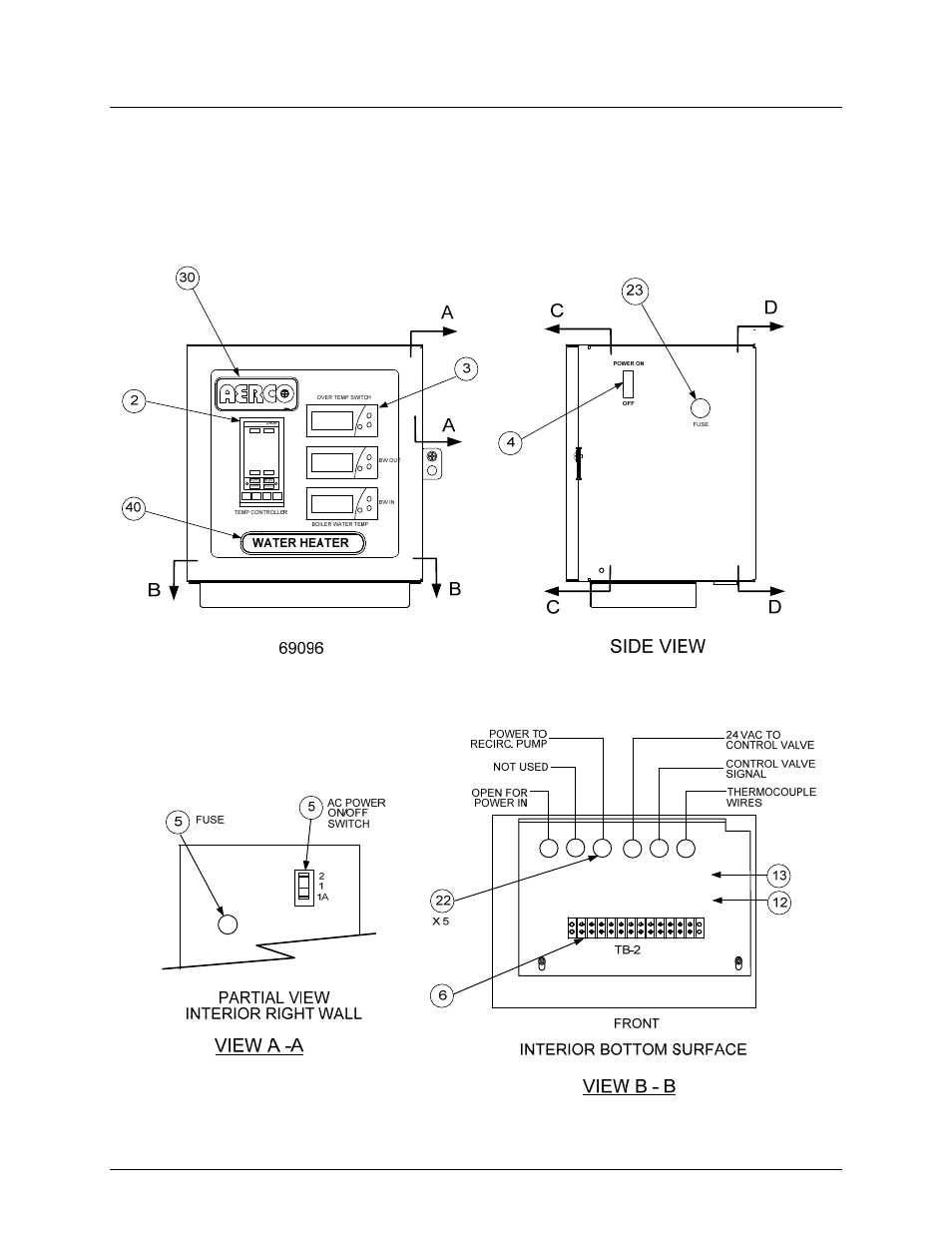

Figure 8-28. ECS/SP Control Box Assembly 69096 (Sheet 1 of 3)
