SmartPlate Installation, Operation & Maintenance Manual
CHAPTER 8 – CORRECTIVE MAINTENANCE
Page 74 of 138 AERCO International, Inc.  100 Oritani Dr.  Blauvelt, NY 10913 OMM-0069_0E
PRI: 11/26/2013 Phone: 800-526-0288 SP-100
4. When the plates of the Heat Exchanger are assembled and tightened, the gasket provides
a tight seal around the plate.
5. Before closing the plate pack, check to ensure that the gasket prongs are in the correct
position.
8.8.2 Replacing Gaskets on End Plate (First Plate Against Frame Plate)
1. Obtain two standard plate gaskets (Part No. 81128).
2. Cut the gaskets as indicated in Figure 8-15.
3. Attach gasket to plate as indicated in Figure 8-16.

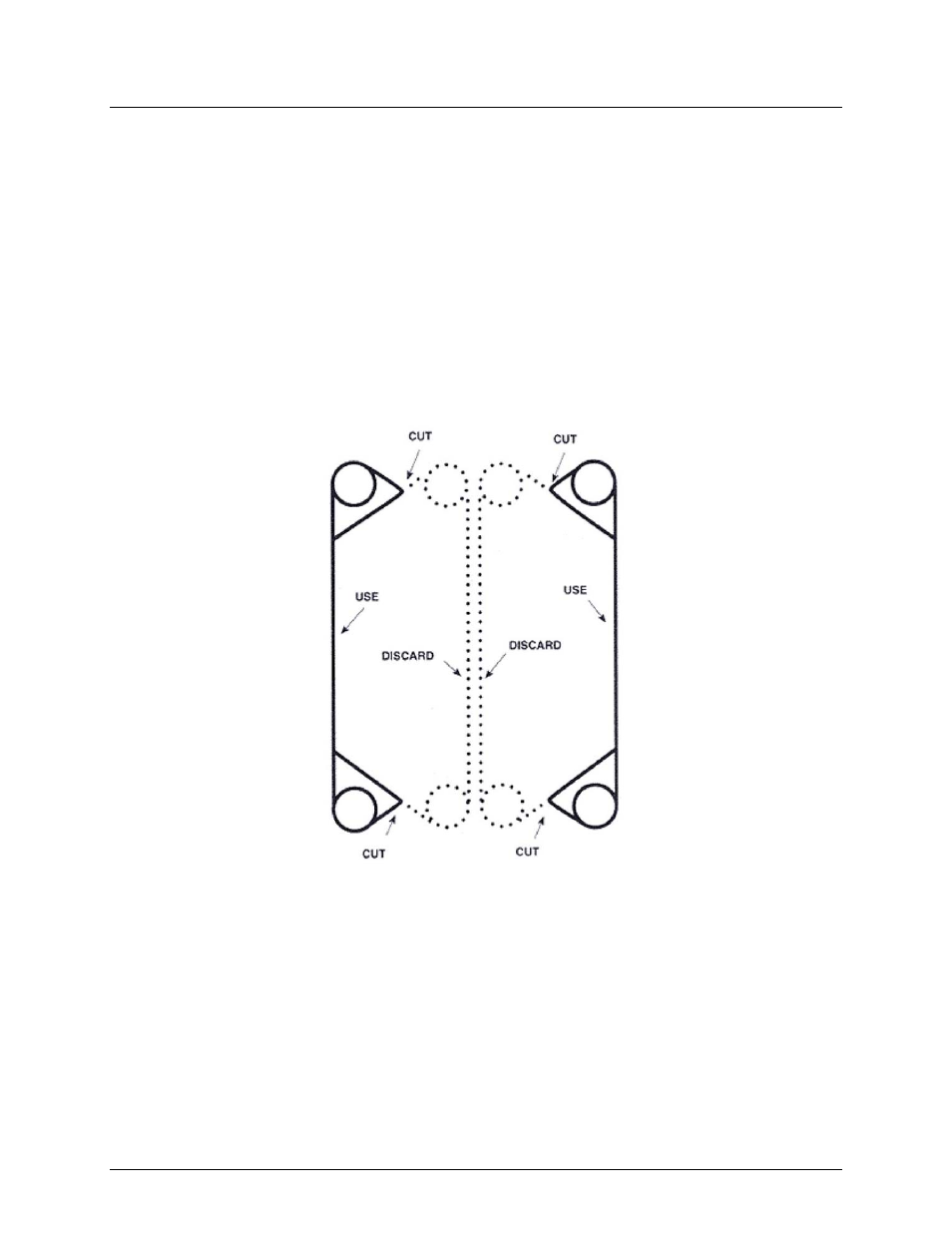

Figure 8-15. Cutting Gaskets For End Plate
