CLUTCH
3-5 D569-W02 May-2003
3. STRUCTURE AND OPERATION
The clutch is located between the engine and the trans-
mission and is operated by stepping on the clutch
pedal. When the clutch pedal is depressed, the clutch
is disengaged and when it is released, the clutch is
engaged and power from the engine is transmitted to
the transmission. These tractors are equipped with a
single plate clutch.
3.1 FEATURES
• Ind. styled clutch is applied available to operate the
travel power and PTO power independently.
• Travel clutch: As dry-single plated clutch, traveling
power is disconnected if the clutch pedal is stepped
down.
• PTO clutch: As wet-multi plated clutch based on oil
pressure control, PTO power is disconnected and
connected by PTO switch over control.

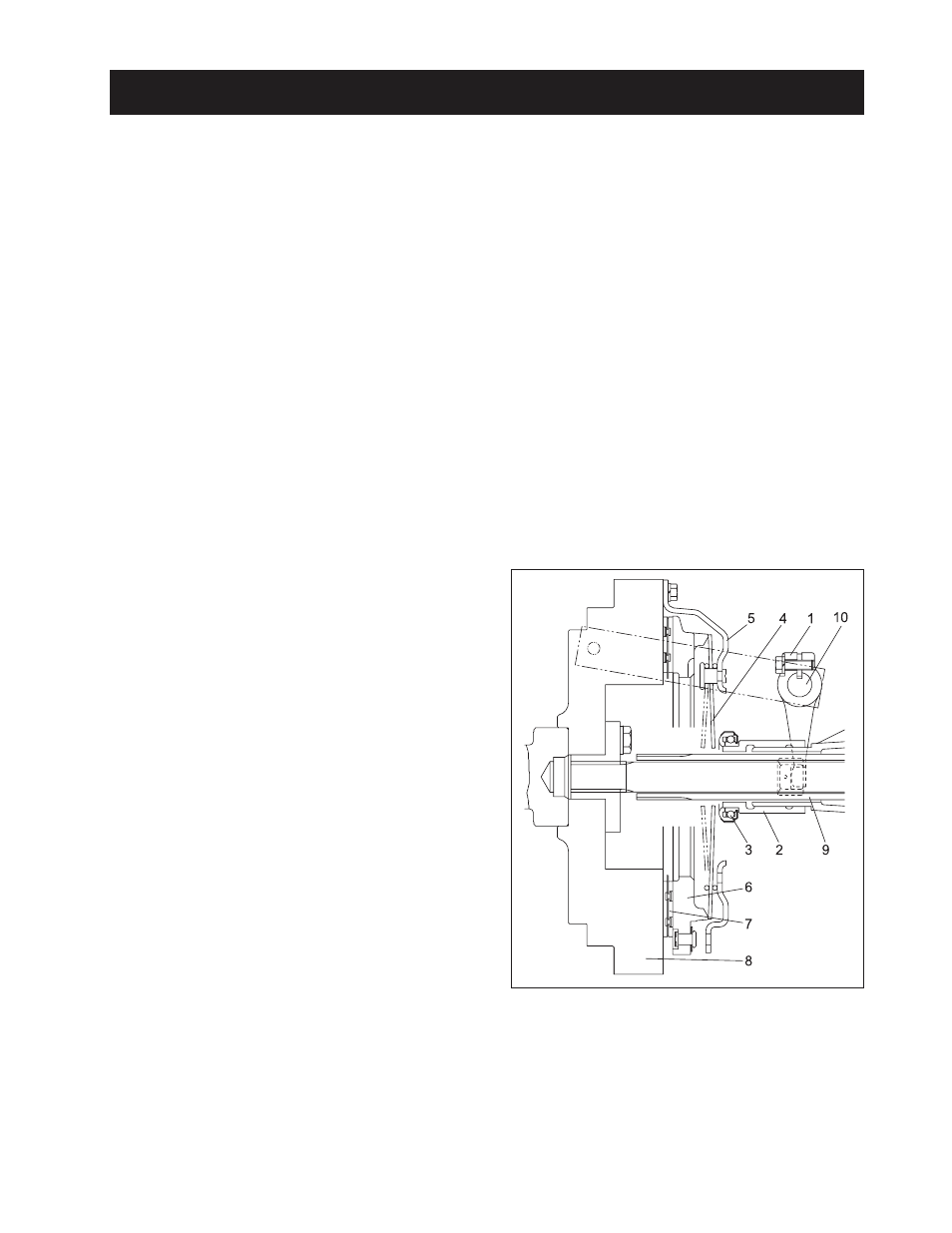

3.2 STRUCTURE
(1) Clutch Release Fork
(2) Release Hub
(3) Release Bearing
(4) Diaphragm Spring
(5) Clutch Cover
(6) Clutch Pressure Plate
(7) Clutch Disc
(8) Flywheel
(9) Shuttle Shaft
(10) Clutch Lever Shaft
569W302A
