BRAKE
7-7
D569-W02 May-2003
•

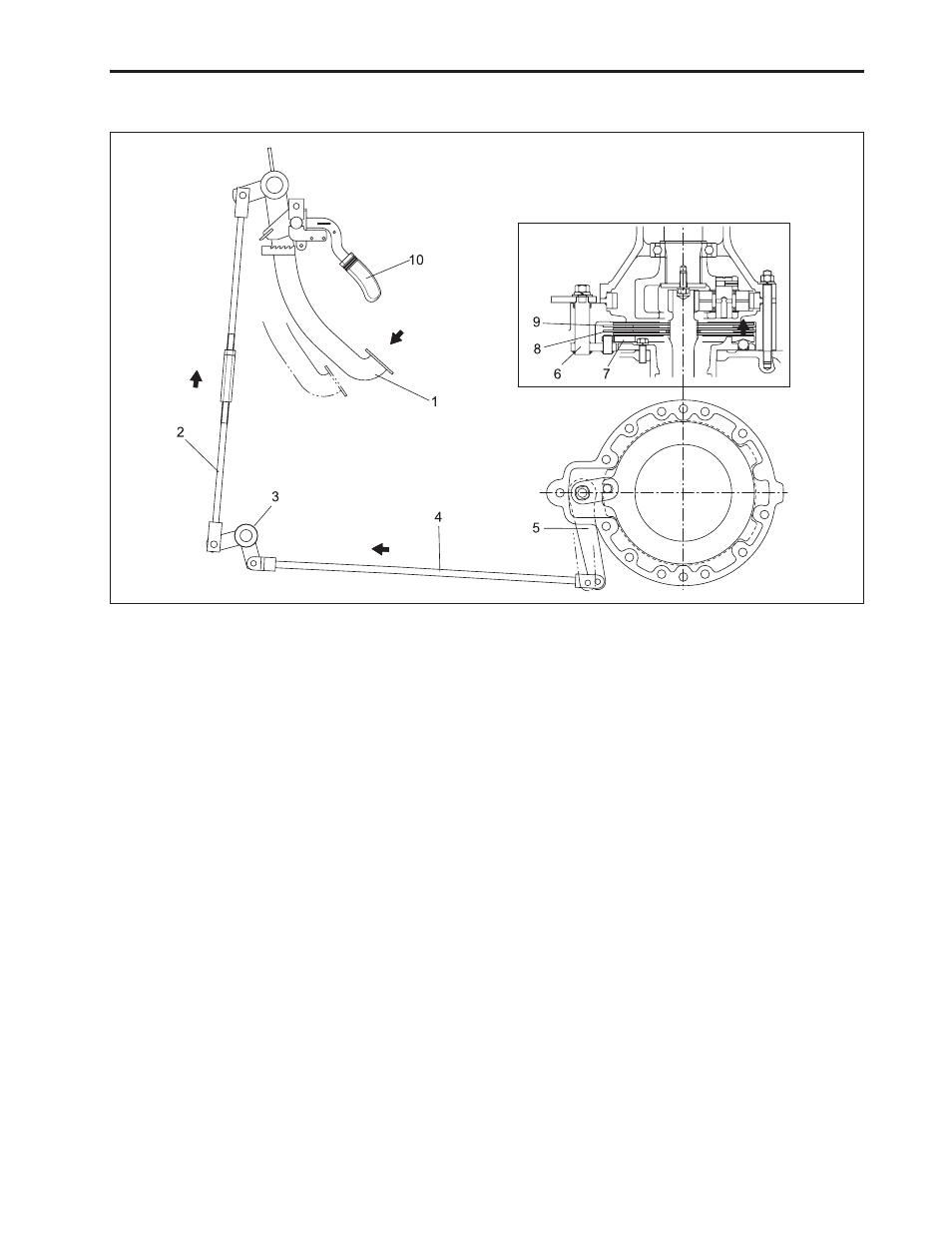

If brake pedal (1) is stepped down, brake lever (5)
is pulled to the direction as arrowed through con-
necting rods (2), (4) and link (3), and brake cam (6)
is allowed to turn cam plate (7) to let it move as
arrowed and apply braking with brake disc (8) as
adhered closely to brake plate (9).
•
For parking, step the brake pedal completely and
pull the parking brake lever (10) to hold the pedal.
(1) Brake Pedal
(2) Connecting Rod
(3) Link
(4) Connecting Rod
(5) Brake Lever
4.2 OPERATION
(6) Brake Cam
(7) Cam Plate
(8) Brake Disc
(9) Brake Plate
(10) Parking Brake Lever
569W704A
