TRANSMISSION SYSTEM
4-29 D569-W02 May-2003
4. Assemble propeller shaft case (8) while greased
enough after sub-assembled with oil seal (9) and
O-ring (10) on clutch housing (14) with M8 washer
mounting bolts (4 places) (13).
5. Connect and assemble clutch release fork (4) with
Clamp (7) after sub-assembling clutch release hub
(5) and release bearing (6).
b. To Assemble
1. Assemble seal cap (11) and oil seal (12) using a jig
on both sides of the clutch housing.
2. Assemble clutch lever (3) and release fork (4) after
greasing the lip area of oil seal (12).
3. Assemble mounting bolt (1) and fork key (2) while
aligning the position of clutch release fork (4) and
clutch lever (3).

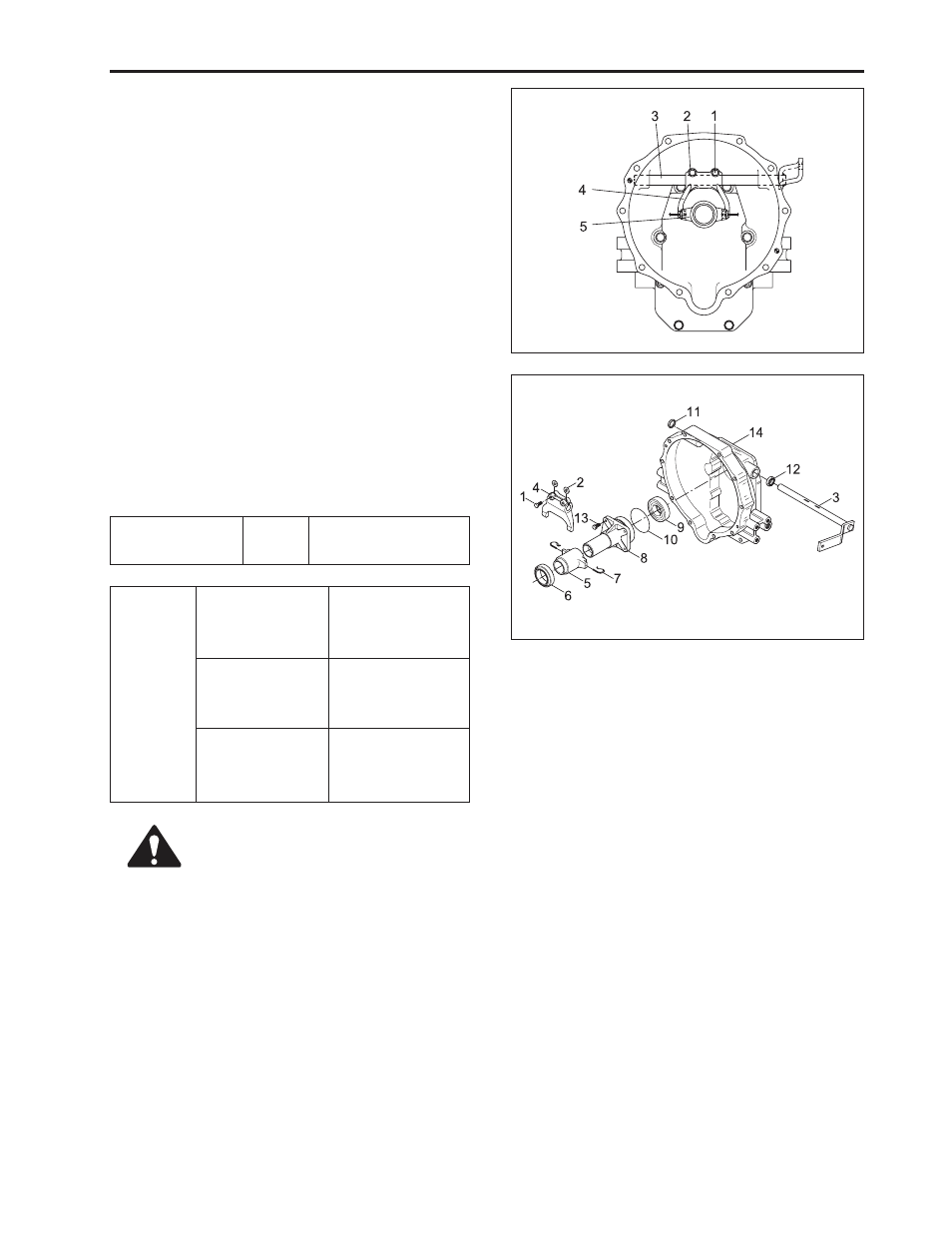

(1) Bolt (8) Case
(2) Key (9) Oil Seal
(3) Clutch Lever (10) O-Ring
(4) Release Fork (11) Seal Cap
(5) Release Hub (12) Oil Seal
(6) Release Bearing (13) Bolt
(7) Clamp (14) Clutch Housing
• Assembling direction of oil seal (9,
12): lip area is to face toward center of
the clutch housing.
• Tighten 2 bolts at both places evenly
and slowly when fixing the tightening
bolt (1).
Diameter of main
shift clutch lever Factory
spec.
20.000 ~ 19.967 mm
0.787 ~ 0.786 in.
Tightening
torque Clutch release
fork mounting bolt
(1)
Propeller shaft
case mounting
bolt (13)
Tightening bolt of
the engine and
clutch housing
23.5 ~ 27.5 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.3 lbf·ft
23.5 ~ 27.5 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.3 lbf·ft
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
569W443A
569W442A
CAUTION
