FRONT AXLE
5-9 D569-W03 June-2003
2. If the difference between direction control angles
left and right exceeds 1.5 °, adjust it with adjusting
w a s h e r ( 1 ) i n F . T h e d i r e c t i o n c o n t r o l a n g l e
increases, if the number of adjusting washers
decreases, and vice versa.

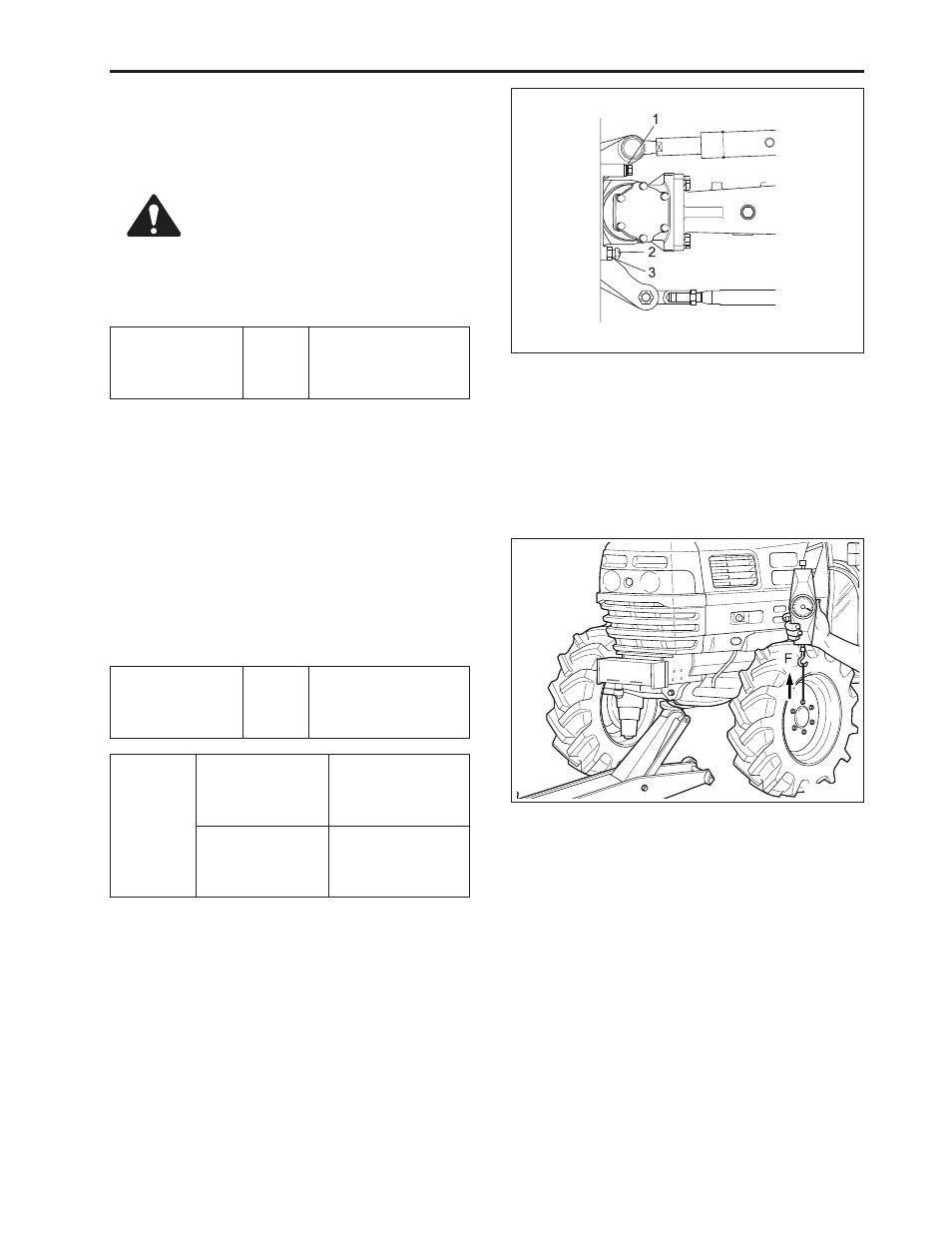

3.5 ROCKING FORCE OF THE FRONT
AXLE, DEFLECTION IN FRONT &
REAR DIRECTIONS
1. Life the body to float both of front wheels off the
ground.
2. Loosen the mounting nut on the front bracket and
tighten the adjusting bolt at the specified torque.
3. After confirmation of rocking force, fix with the
mounting nut.
Tightening torque Nut 98.1 ~ 125.5 N·m
10.0 ~ 12.8 kgf·m
72.3 ~ 92.5 lbf·ft
Front axle
rocking force Factory
spec.
49.0 ~ 117.7 N
5.0 ~ 12.0 kgf
11.0 ~ 26.5 lbf
Tighten-
ing torque Adjusting bolt
Lock nut
19.6 ~ 29.4 N·m
2 ~ 3 kgf·m
14.4 ~ 21.6 lbf·ft
98.1 ~ 147.1 N·m
10 ~ 15 kgf·m
72.3 ~ 108.4 lbf·ft
(1) Washer (3) Nut
(2) Bolt
569W508A
569W510B
• Adjustment of the direction control
angle shall be achieved under the
range of the maximum control angle.
• Fix firmly the tightening bolt (2) in R
w i t h t h e t i g h t e n i n g n u t ( 3 ) a f t e r
adjusted.
CAUTION
