Brake Disc Wear

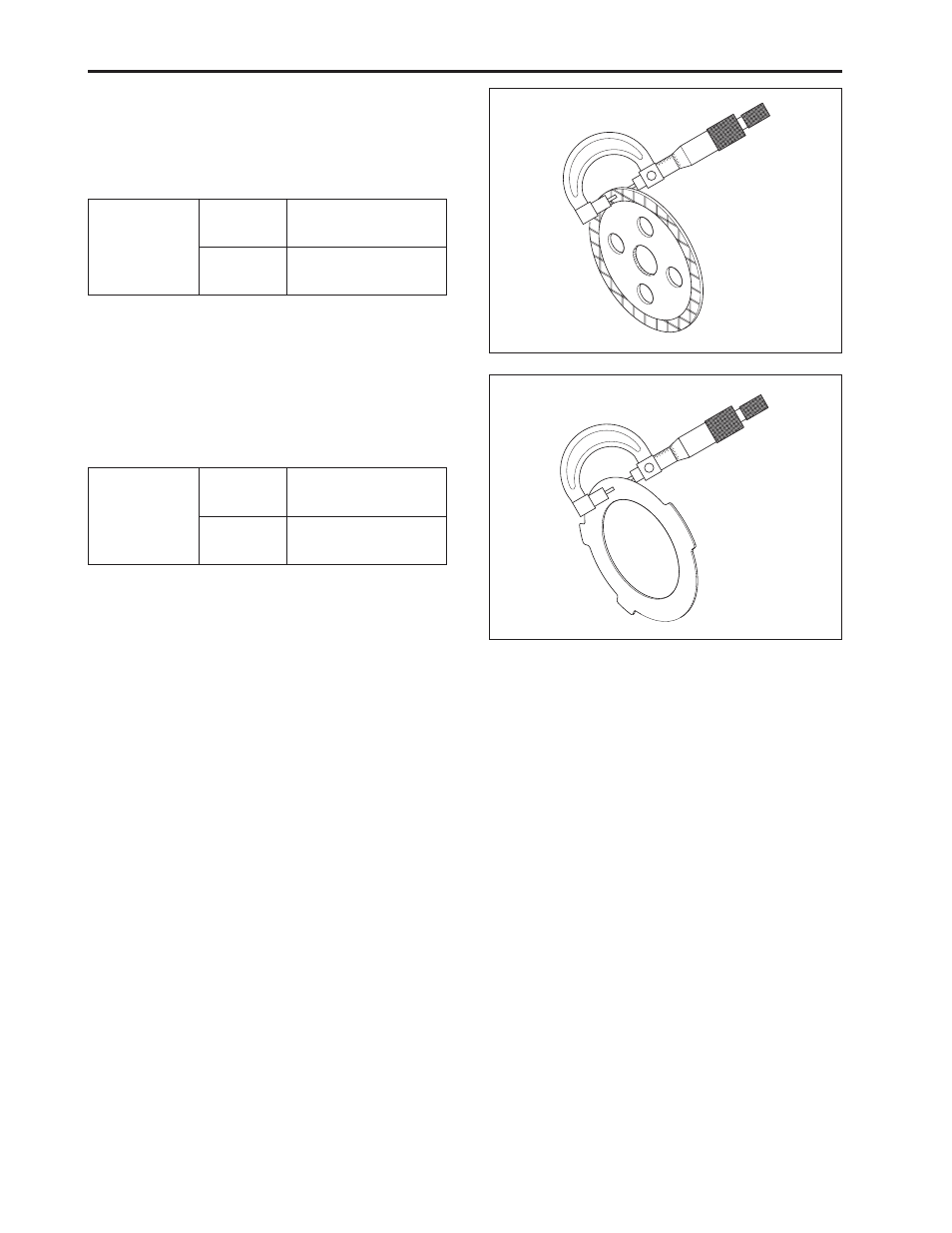

1. Measure the brake disc thickness with venire
calipers.
2. If the thickness is less than the allowable limit, re-
place it.
Brake Dise Wear
1. Measure the plate thickness with venire calipers.
2. If the thickness is less than the allowable limit, re-
place it.
Brake disc
thickness Factory
spec.
Allowable
limit.
4.6 ~ 4.8 mm
0.181 ~ 0.189 in.
4.0 mm
0.1574 in.
Plate
thickness Factory
spec.
Allowable
limit.
2.54 ~ 2.66 mm
0.1000 ~ 0.1047 in.
2.0 mm
0.0787 in.
569W731A
569W732A
