Page 310
CHAPTER 8 8454
8-12
D569-W03 June-2003
569W810A

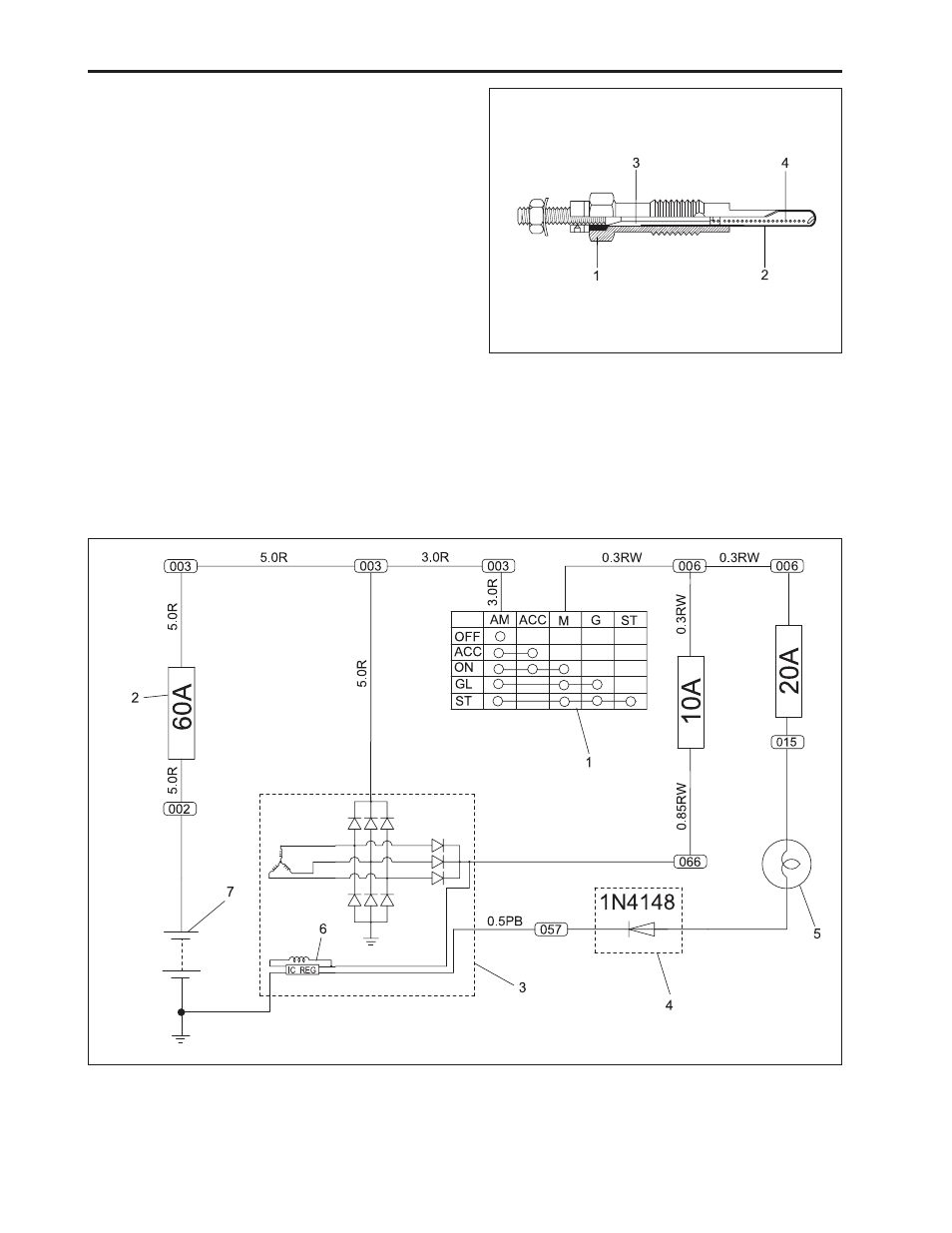

b. Glow plugs
Glow plugs are used for each pre-combustion chamber
of the cylinder head to make starting easier. The glow
plugs are quick-heating type, which make starting easier
with short pre-heating time.
(1) Housing (3) Insulating powder
(2) Metal tube (4) Heat coil
(1) Key s/w
(2) Main Fuse
(3) Alternator
569W811B
4.2 CHARGING SYSTEM
A. CIRCUIT DIAGRAM FOR CHARGING SYSTEM
(4) Diode
(5) Battery charge warning lamp
(6) Regulator
(7) Battery
