CABIN SYSTEM
9-7
D569-W02 May-2003
13. Remove frame cover (1) in left of frame assembly
and parallel pin connected with shuttle lever arm
(3) and then disconnect shuttle lever from shuttle
lever arm.

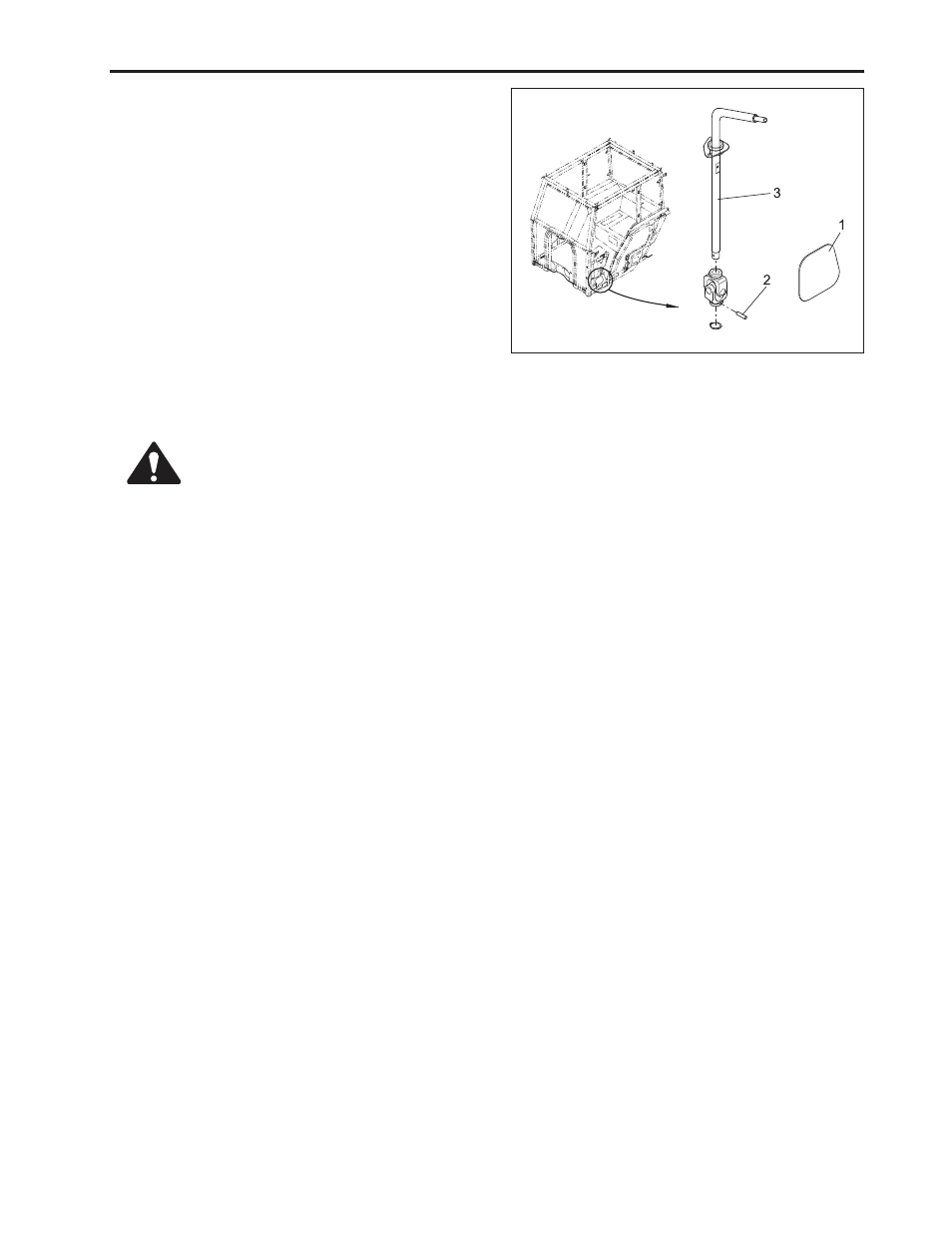

(1) Cover, Frame
(3) Lever, Shuttle
(2) Pin, Straight
14. Remove cabin.
569W913A
CAUTION
•
Disassemble cabin carefully, ensur-
ing that it would not interfere with other
parts or there would be parts not disas-
sembled.
