CHAPTER 7 8454
7-14 D569-W02 May-2003
5.4 DISASSEMBLING REAR AXLE
CASE

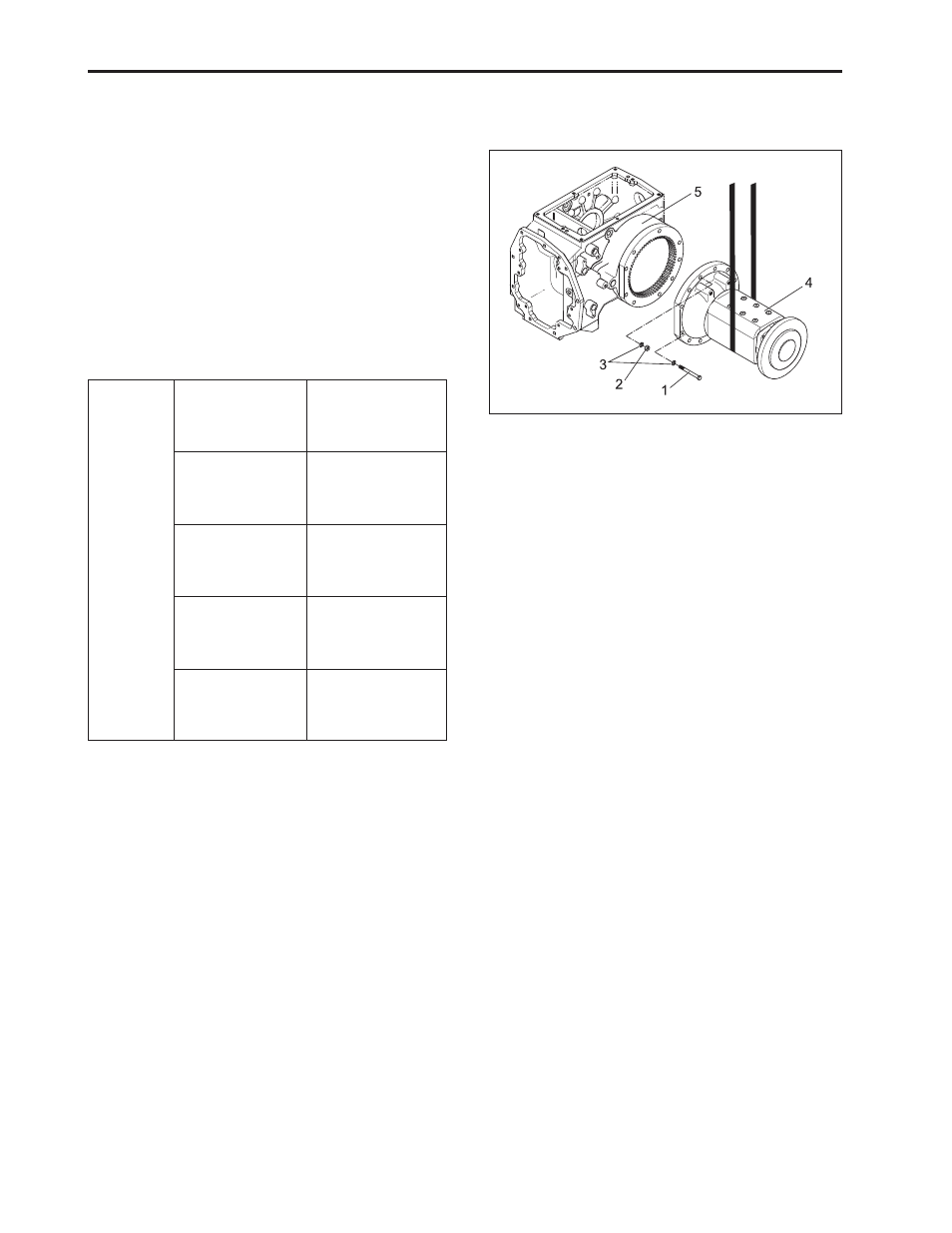

Rear Axle Case
1. Support the transmission case with nylon lift strap
and hoist.
2. Loosen and remove the rear axle case mounting
screws (1), spring washer (3) and nuts (2).
3. Support the rear axle case (4) with nylon lift strap
and hoist.
4. Carefully move the axle assembly out and away from
the tractor.
(When reassembling)
Tightening
torque Rear axle case
mounting
screws
Rear axle case
mounting nuts
Brake shaft
(LH, RH)
Parking brake
shaft mounting
bolt
Brake rod
mounting nut
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
367.8 ~ 431.8 N·m
37.5 ~ 44.0 kgf·m
271.2 ~ 318.2 lbf·ft
23.5 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.2 lbf·ft
48.0 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
(1) Bolt (4) Rear Axle Case
(2) Nut (5) Brake Case
(3) Spring Washer
569W724A
