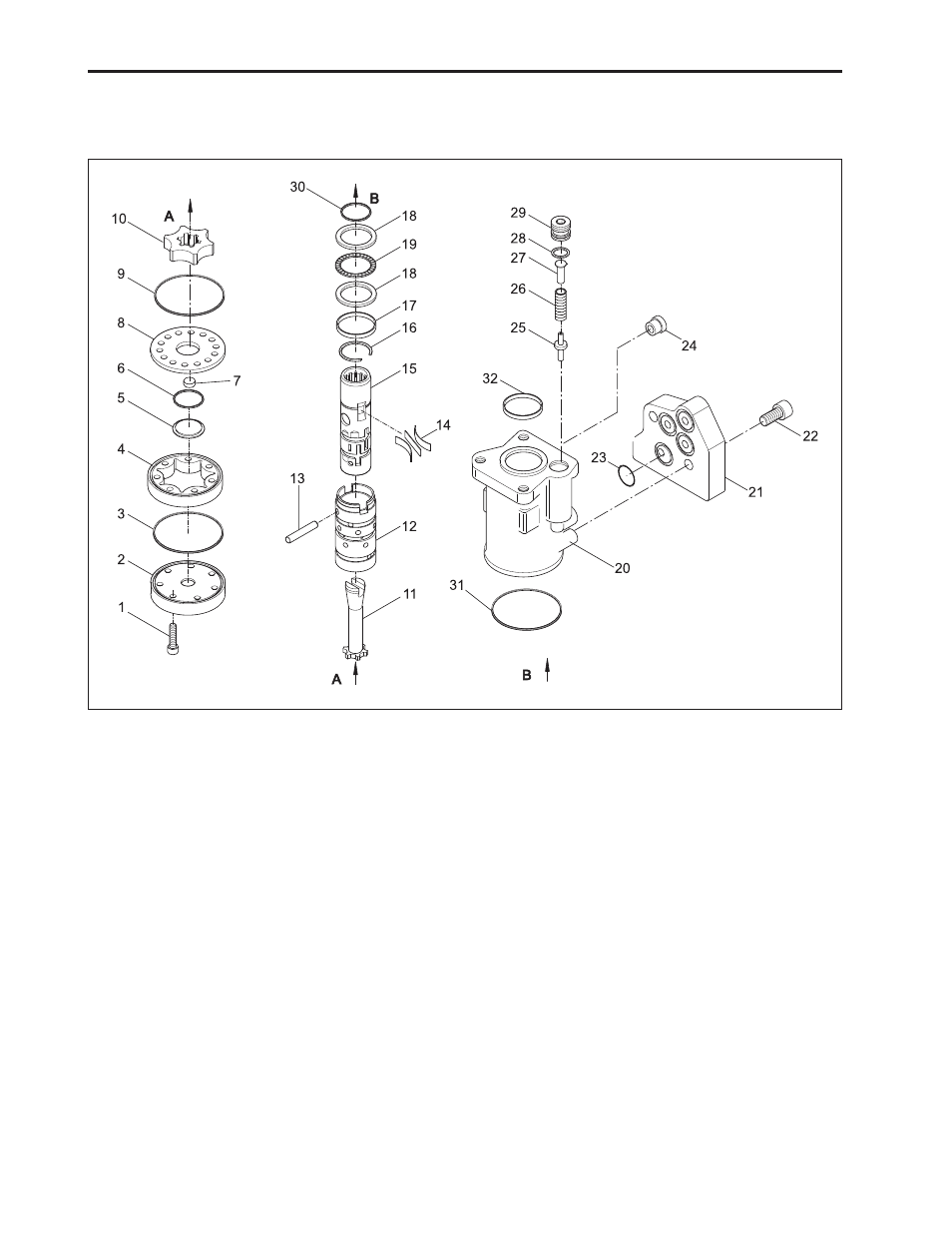

3.5 TO DISASSEMBLING AND TO ASSEMBLE
POWER STEERING UNIT
(1) Screw
(9) O-Ring
(2) End Cap
(10) Rotor
(3) O-Ring
(11) Drive
(4) Stator
(12) Sleeve
(5) Spacer
(13) Pin
(6) O-Ring
(14) Centering Spring
(7) Spacer
(15) Spool
(8) Spacer Plate
(16) stop Ring
(17) Retainer Ring
(25) Poppet
(18) Bearingless
(26) Spring
(19) Needle Bearing
(27) Poppet
(20) Housing
(28) O-Ring
(21) Housing
(29) Plug
(22) Screw
(30) O-Ring
(23) O-Ring
(31) O-Ring
(24) Inlet Check Valve Ass’y (32) Dust Seal
569W679A
