d. Connecting Rod and Piston
(A) Oil pan and oil filter
1. Remove the engine stand and the oil pan.
2. Remove the oil strainer (1).
(When reassembling)
• Be sure to install the O-ring (2) between the oil
strainer and the cylinder block.

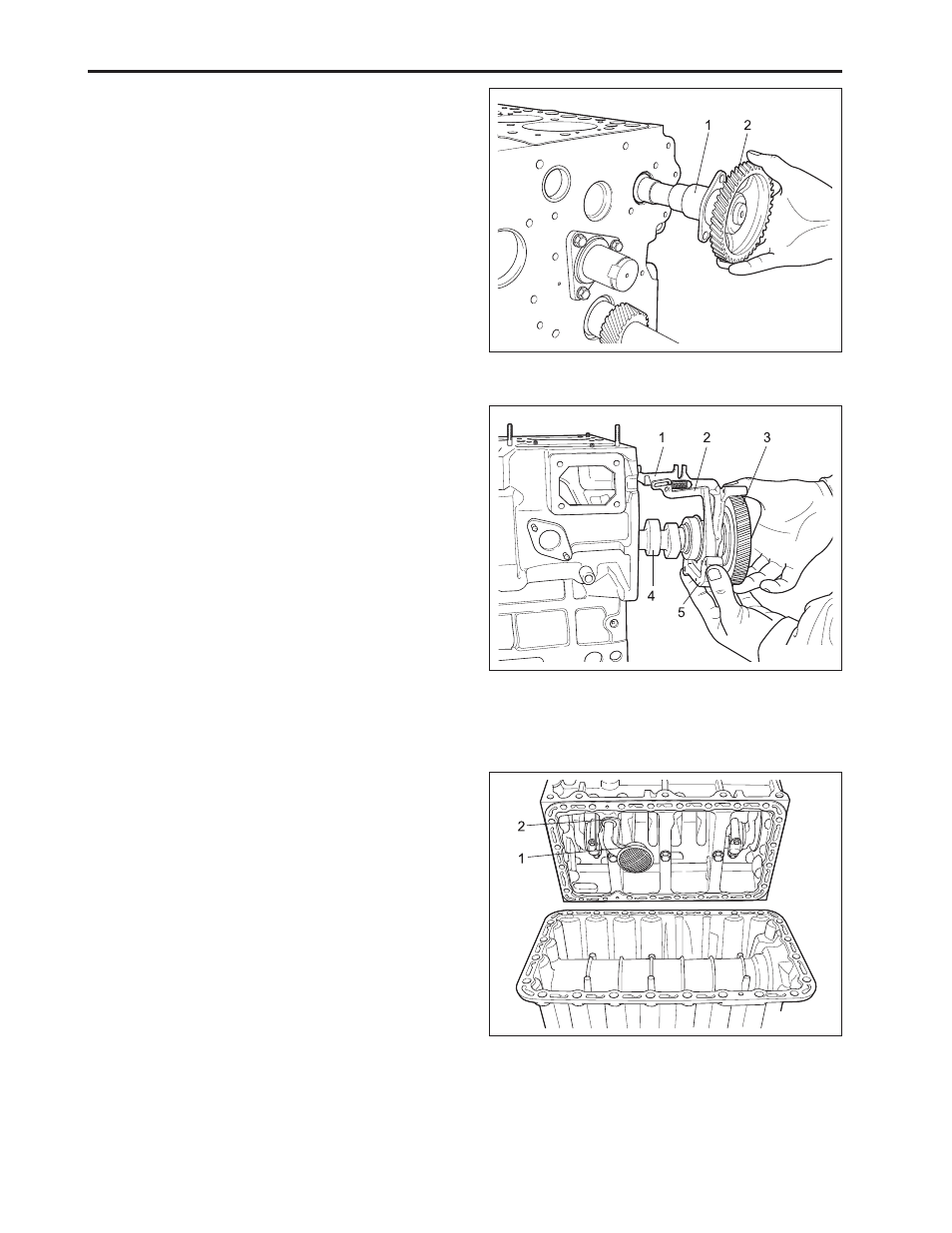

8) Camshaft
1. Align the holes on the cam gear (2) with the crews
to loosen them through the holes with a T handle
wrench.
2. Draw out the camshaft (1).
3. Remove the cam gear (2).
(When reassembling)
• Heat the cam gear to approx. 80 °C (176 °F) and
insert the camshaft (1).
9) Fuel camshaft
1. Remove the fuel camshaft stopper.
2. Loosing the fork lever holder screws, remove the
fuel camshaft (4) with fork lever holder (5), fork lever
1 (1) and 2 (2).
3. Remove the Injection pump gear (3).
(When reassembling)
• Heat the injection pump gear to approx. 80 °C (176 °F)
and insert the camshaft (4).
(1) Camshaft (2) Cam Gear
(1) Fork Lever 1 (4) Camshaft
(2) Fork Lever 2 (5) Fork Lever Holder
(3) Injection Pump Gear
(1) Oil Strainer (2) O-Ring
