CABIN SYSTEM
9-3
D569-W02 May-2003

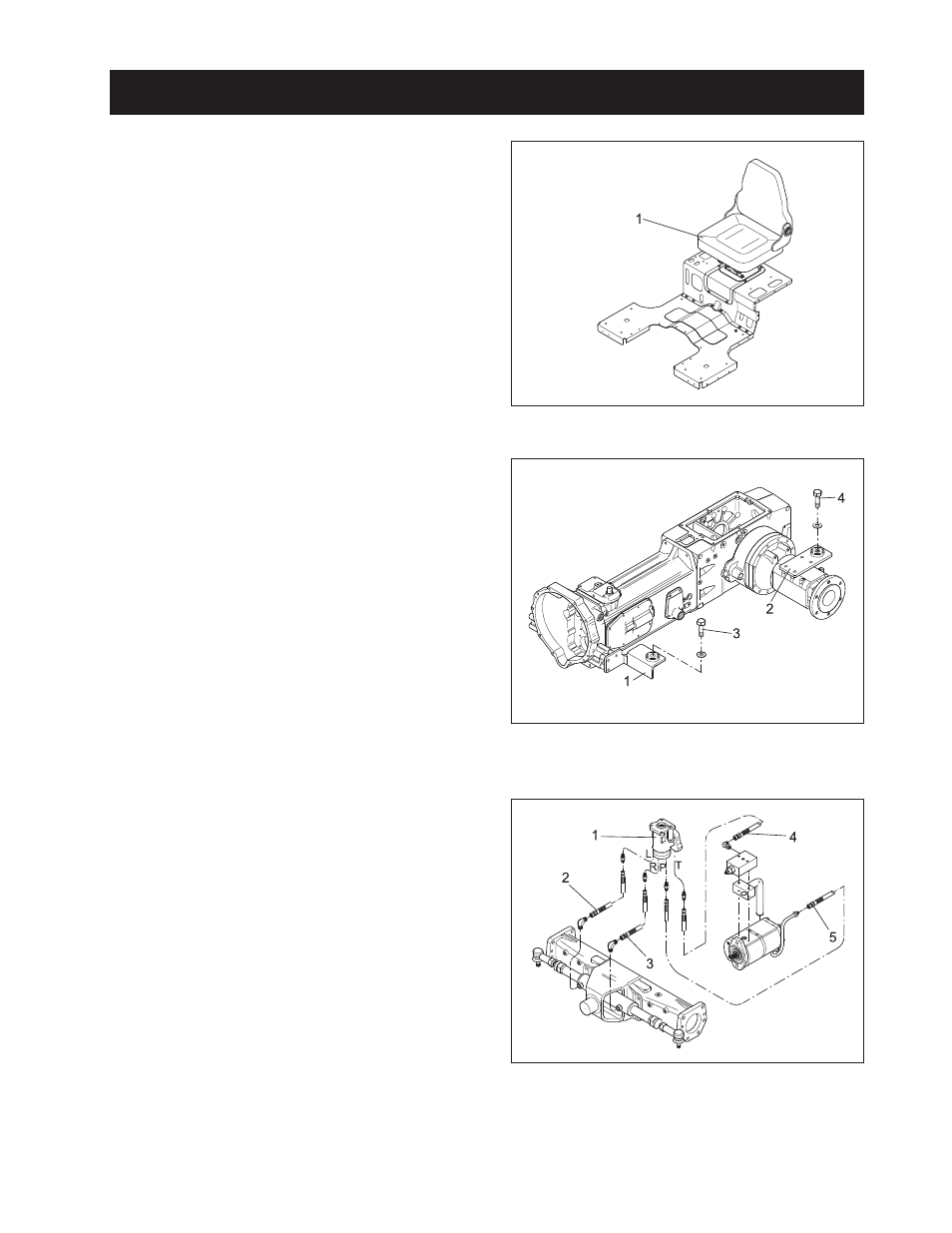

1. DISASSEMBLY AND ASSEMBLY
1. Loosen 6 setting bolts for chair assembly support
and disconnect seat assembly in a body.
(1) Seat Assembly
2. Disengage 4 setting bolts for cabin assembly.
(1) Cabin Support (Front) (3) Bolt
(2) Cabin Support (Rear) (4) Bolt
3. Remove steering hose L.R (steering cylinder
assembly) and steering hose P.T (gear pump
assembly).
(1) Steering Unit
(4) Steering Hose T
(2) Steering Hose L
(5) Steering Hose P
(3) Steering Hose R
569W901A
569W902A
569W903A
