ENGINE
2-41 D569-W02 May-2003
569W265A
569W264A
569W263A

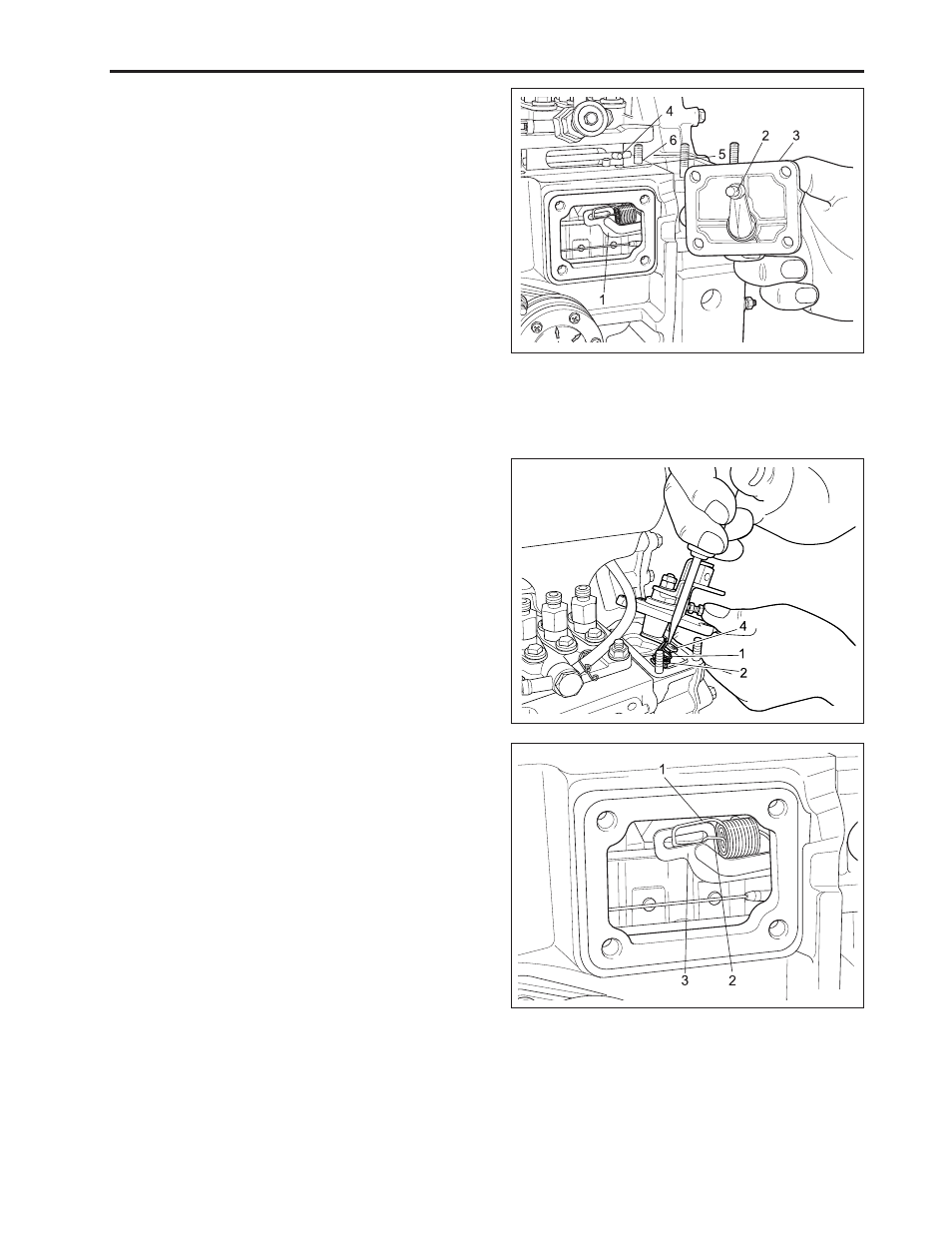

2) Governor spring and Speed control plate
1. Disconnect the governor spring 1 (1) and 2 (2) from
the governor lever (4).
2. Remove the speed control plate.
3. Remove the governor spring.
(When reassembling)
• Be careful not to drop the governor springs 1, 2 into
the gear case.
• Fix the governor springs (1), (2) to the fork lever 2
(3) and pull the springs, hook on to the governor
lever(4).
• Apply a liquid gasket both side of speed control plate
gasket.
c. Timing Gears and Camshafts
1) Injection pump
1. Remove the injection pump cover (3) with the en-
gine stop lever (2).
2. Remove the injection pump.
(When reassembling)
• Apply liquid gasket to the both sides of injection
pump cover gasket and install it.
• Install the injection pump so that its control rack pin
(4) engages with the groove (5) of fork lever 1 (1).
• Install the injection pump cover with the arm of en-
gine stop lever (2) at the right of the arm of fork lever
1 (1).
(1) Fork Lever 1 (4) Control Rack Pin
(2) Engine Stop Lever (5) Groove
(3) Injection Pump Cover (6) Shim
(1) Governor Spring 1 (3) Fork Lever 2
(2) Governor Spring 2 (4) Governor Lever
