HYDRAULIC SYSTEM
6-81
D569-W03 June-2003
How to adjust the pressure of double-acting valve
1. Install the pressure in the coupler socket to check the standard
pressure of external hydraulic pressure (Refer to schematic
diagram).
2. Standard pressure of rear external hydraulic pressure:
165 kg/cm
2
~ 190 kg/cm
2
(engine rotation: 2,600 rpm).

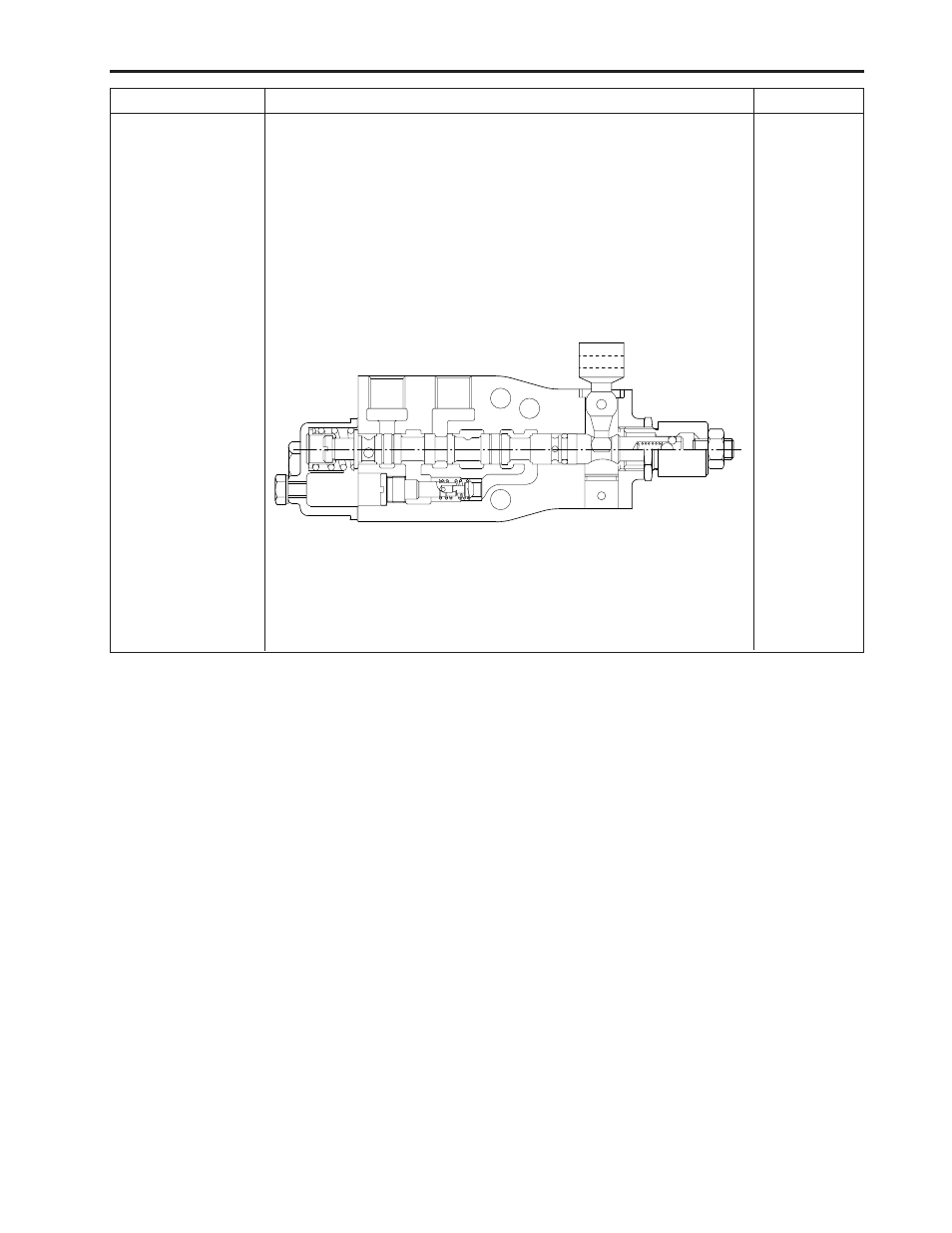

(Double-acting valve assembly)
Components
Trouble Checking
Remark
2. Double-acting
valve assembly
• After removing a nut (1), turn the adjusting screw (2) to clockwise
or counterclockwise using a hexagonal wrench to check the
pressure gauge and then adjust it to standard pressure value.
569W6B3B
