Hydraulic filter – Cub Cadet 8454 User Manual
Page 265
HYDRAULIC SYSTEM
6-71
D569-W02 May-2003
5. HYDRAULIC FILTER
5.1 STRUCTURE AND OPERATION

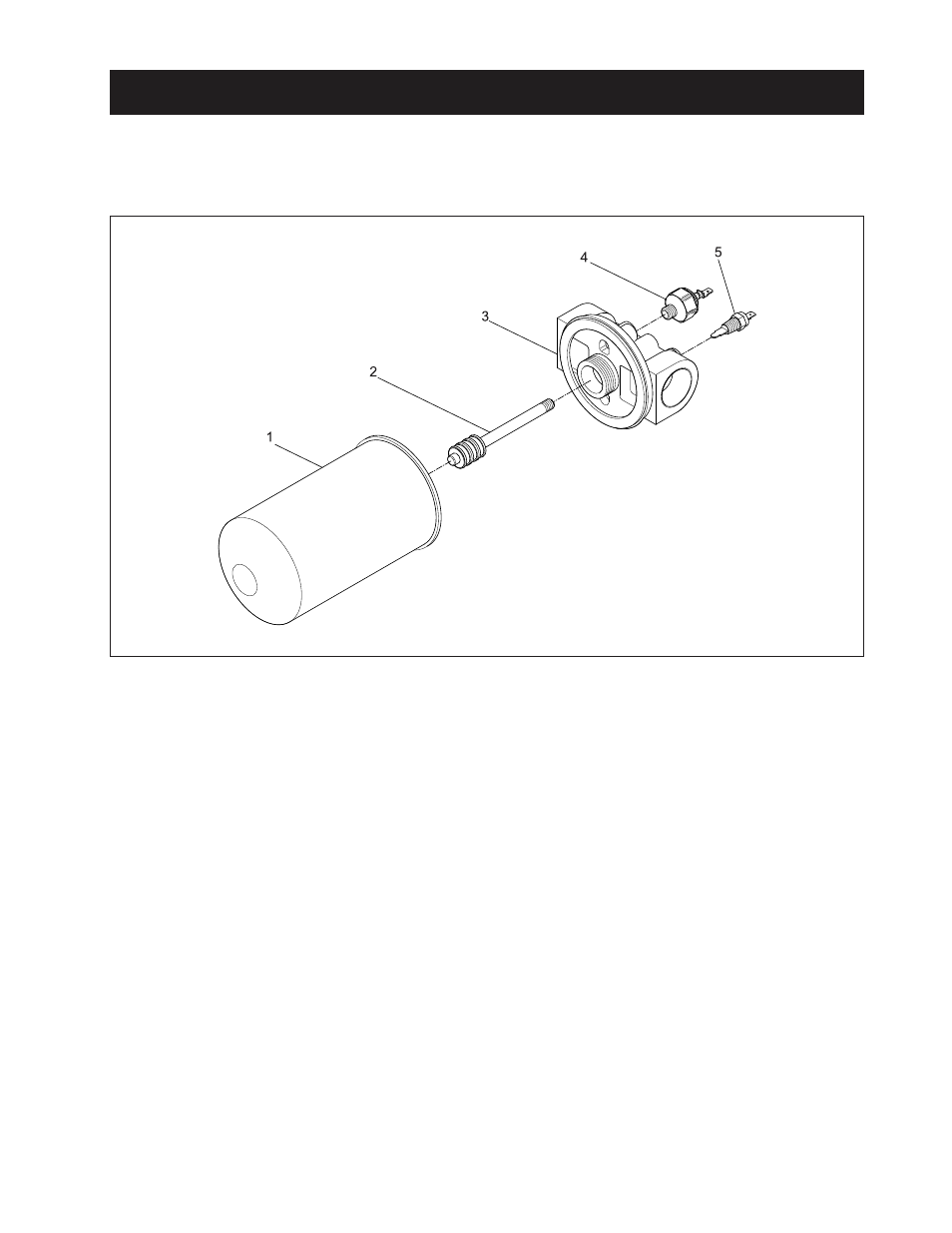

A. STRUCTURE
(1) Hydraulic Filter
(2) Magnetic Ass’y
(3) Filter Bracket
(4) Vacuum Sensor
(5) Thermostat Sensor
Hydraulic filter as of inlet filter on the inlet gear pump
has permanent magnet installed on the center of the
element, and the filter mounted on the hydraulic lift is
structured with a vacuum sensor and a thermo sensor
to detect blockage.
569W6A1A
