CHAPTER 5 8454
5-14 D569-W02 May-2003
5.3 BEVEL GEAR CASE AND FRONT
AXLE SUPPORT
A. TO DISASSEMBLING
1. Remove four M14 bolt and two nuts (3) to separate
separate bevel gear case (1) and front axle support
(8).
B. TO ASSEMBLE
1. Install two parallel pins (6) and two stud (5) on bevel
gear case (1).
2. Install O-ring (7) on the rim of 6309 ball bearing
(10) in the bevel gear case ass’y and apply grease.
3. Push differential gear shaft (9) in the bevel gear
case ass’y into the splined section of the differen-
tial side gear inside front axle support (8) as aligned.
4. Tighten bevel gear case (1) and front axle support
(8) with four bolt (2) and two nuts (3).

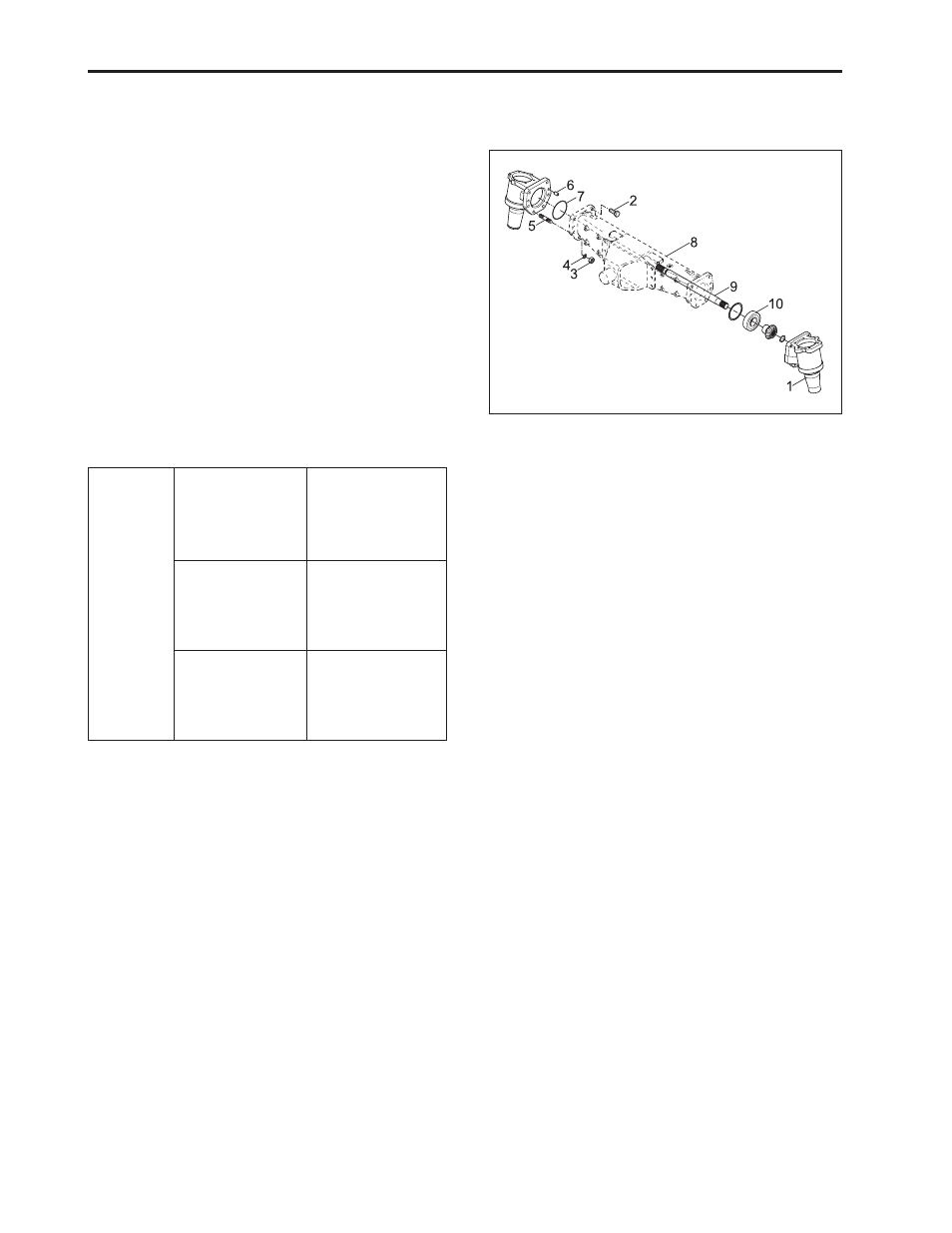

(1) Bevel Gear Case (6) Parallel Pin
(2) Bolt (7) O-Ring
(3) Nut (8) Front Axle Support
(4) Spring Washer (9) Differential Gear Shaft
(5) Stud (10) Ball Bearing
Tightening
torque Stud bolt (5) for
assembly of the
front axle support
and the bevel
gear case
Assembling bolt
(2) of the front
axle support and
the bevel gear
case
Assembling nut
(3) of the front
axle support and
the bevel gear
case
123.6 ~ 147.1 N·m
12.6 ~ 15.0 kgf·m
91.1 ~ 108.5 lbf·ft
123.6 ~ 147.1 N·m
12.6 ~ 15.0 kgf·m
91.1 ~ 108.5 lbf·ft
123.6 ~ 147.1 N·m
12.6 ~ 15.0 kgf·m
91.1 ~ 108.5 lbf·ft
569W520A
