CHAPTER 7 8454
7-8
D569-W02 May-2003
5. DISASSEMBLING AND ASSEMBLING
5.1 DRAINING THE TRANSMISSION
FLUID
Draining the Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs.
3. Drain the transmission fluid.
4. Reinstall the drain plugs
(When refilling)
•
Fill up from filling port after removing the filling plug
(1) until reaching the gauge (2).
•
After running the engine for few minutes, stop it and
check the oil level again, add the fluid to prescribed
level if it is not correct level.
IMPORTANT
•
Use only SAE 80, 90 gear oil. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLING WA-
TER” (See page 1-13).
•
Do not mix different brands fluid together.
Capacity Transmission fluid 34.0
9.0 U.S.gal.

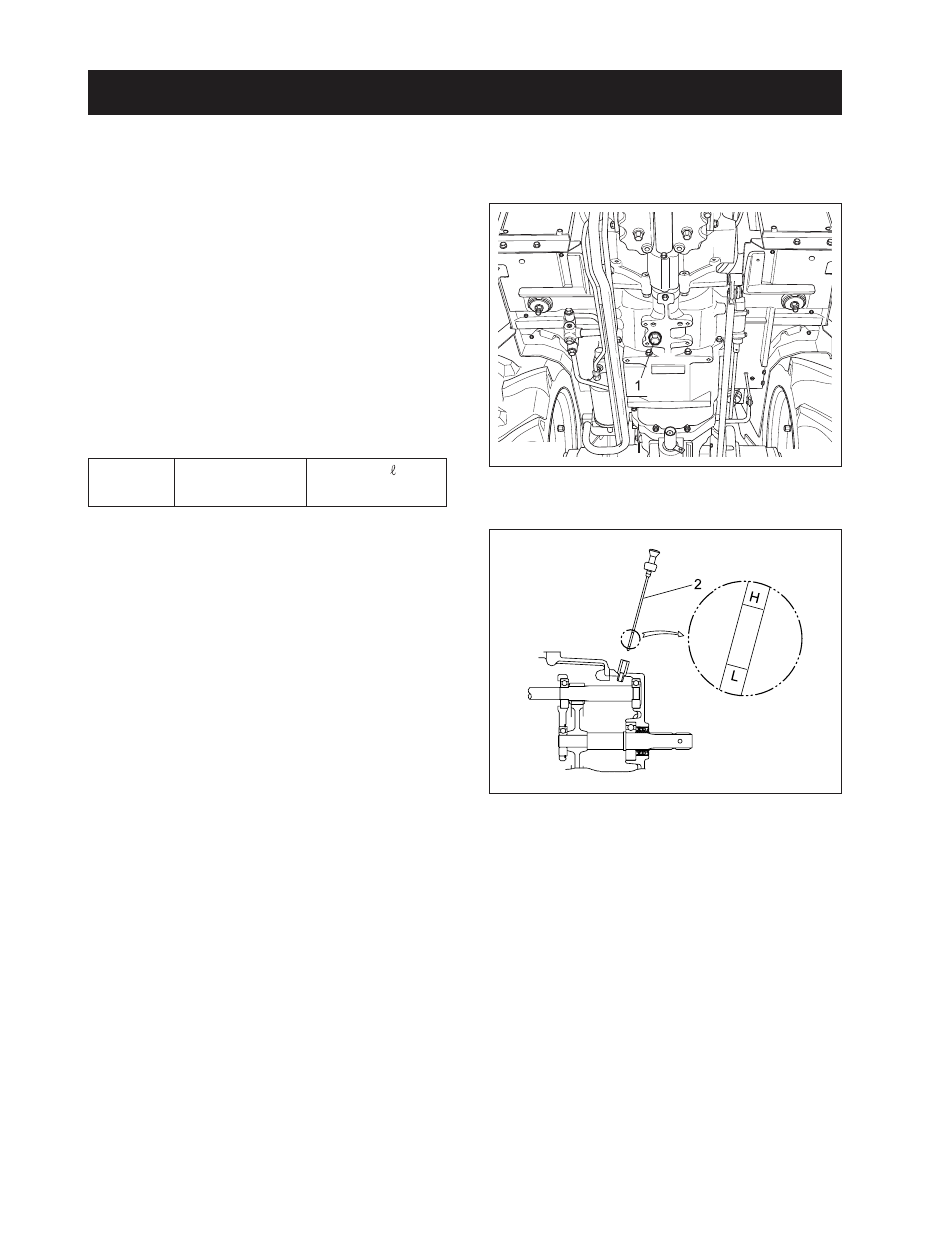

(1) Drain Plugs
(2) Gauge
569W705A
569W706A
